CMC card indicators

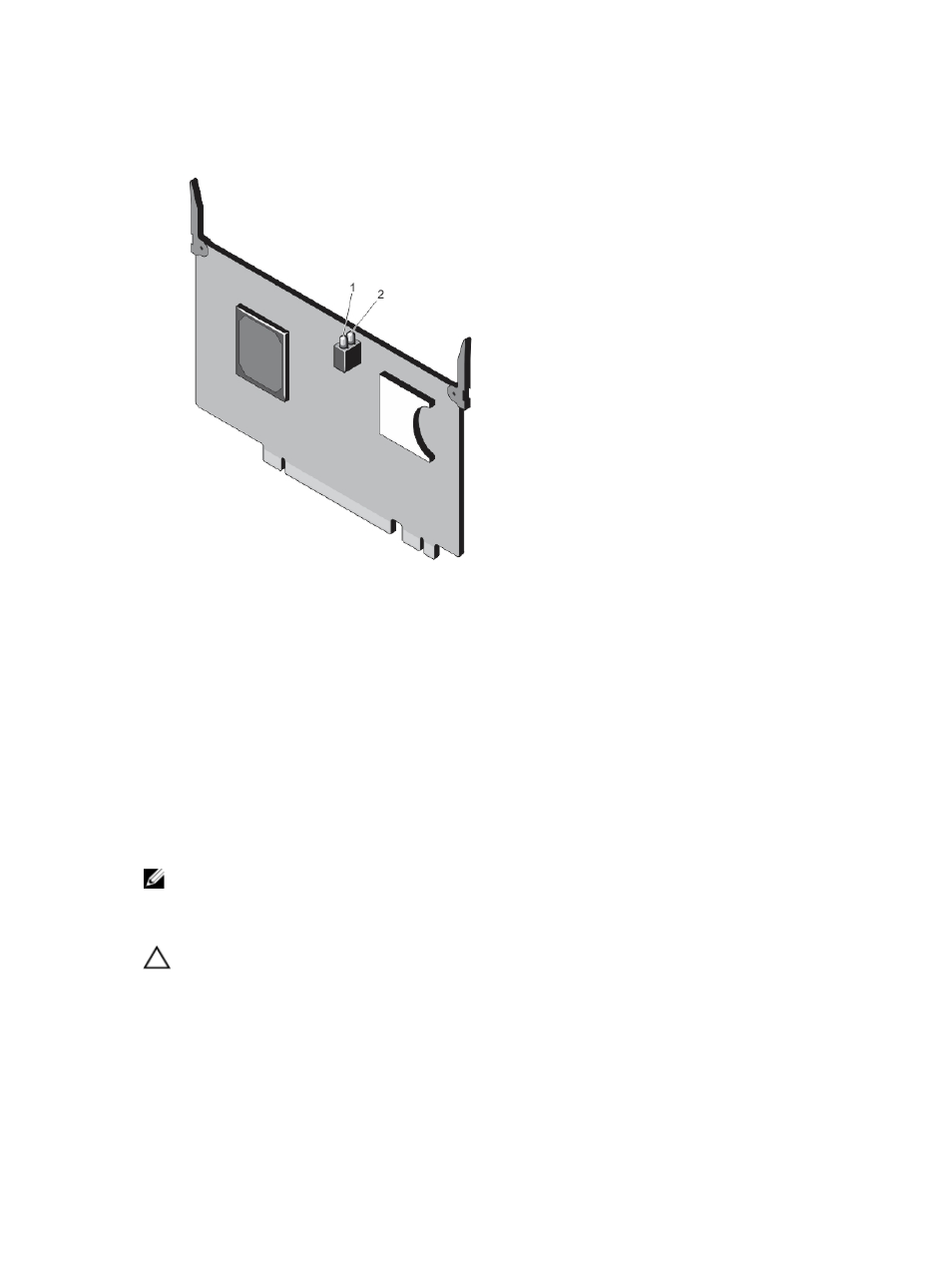

Figure 54. CMC card indicators
1. status indicator 2. power indicator
The CMC card indicators provide the following information:
Indicator Description
Power indicator
Green The CMC card is receiving power.
Off The CMC card is not receiving power.
Status indicator
Blue The CMC card is active and operating normally.
Amber The CMC card is in fault condition.
NOTE: In a redundant (two-CMC) configuration, only the power indicator is enabled on the standby CMC.
Removing a CMC card
CAUTION: Many repairs may only be done by a certified service technician. You should only perform
troubleshooting and simple repairs as authorized in your product documentation, or as directed by the online or
telephone service and support team. Damage due to servicing that is not authorized by Dell is not covered by your
warranty. Read and follow the safety instructions that came with the product.
1. Open the system.
2. Turn the two release tabs upward to disengage the CMC card from the CMC connector on the system board.
3. Holding the release tabs, lift the CMC card from the CMC connector and slide it out of the card support bracket.
