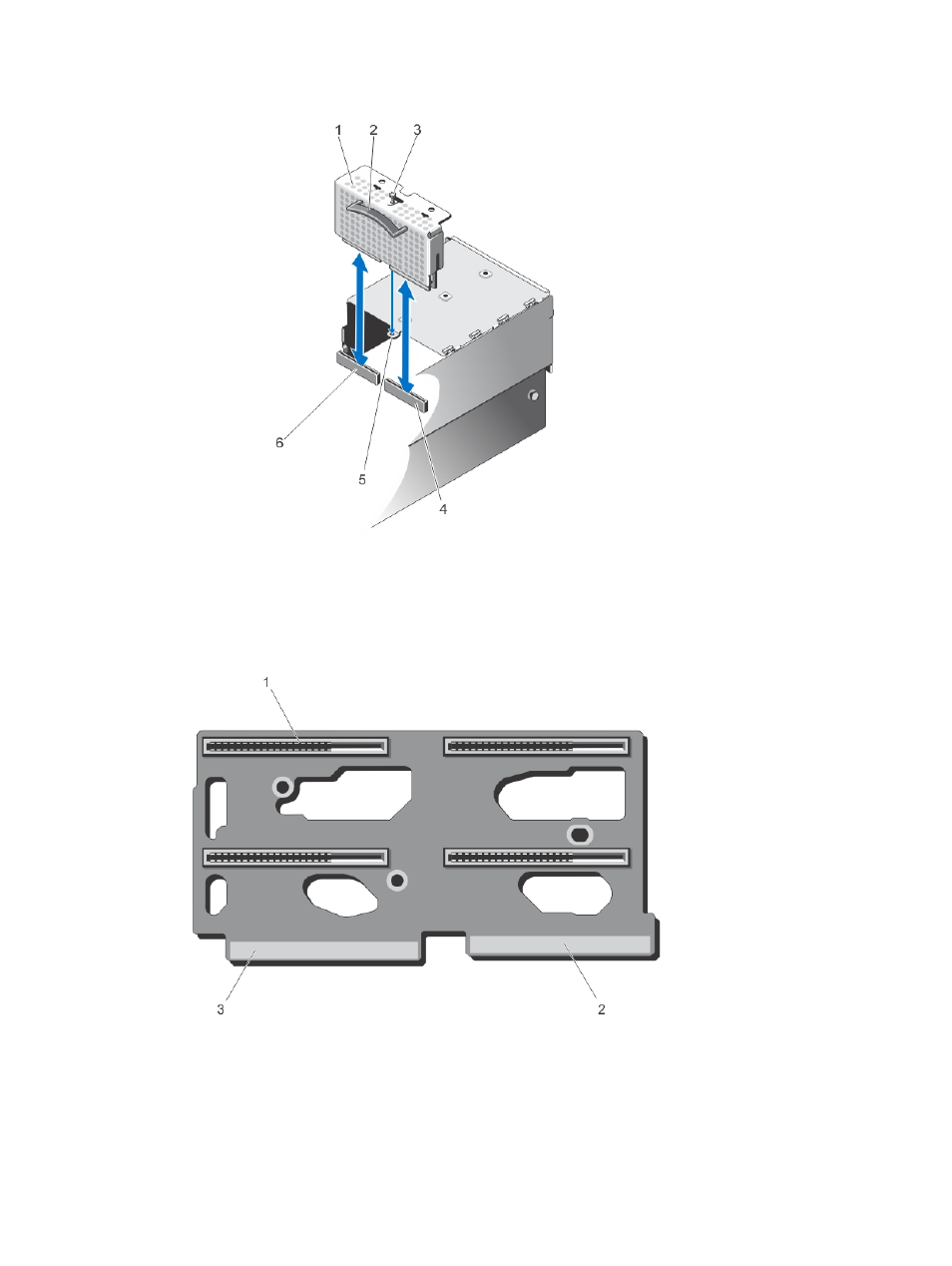

Figure 82. Removing and installing the power distribution board
1. PDB bracket 2. handle
3. spring-loaded screw 4. PDB connector on power pass-through board
5. screw hole for PDB bracket on the power
supply cage
6. PDB connector on the system board
Figure 83. Power distribution board connectors
1. power supply connectors (4) 2. connector to system board
119
