Dell PowerEdge VRTX User Manual
Page 127
i. blower module bay
8.
Holding the midplane by its slots, disengage the midplane from the two securing pins on the chassis.
9.
Rotate the midplane out and away from the system.

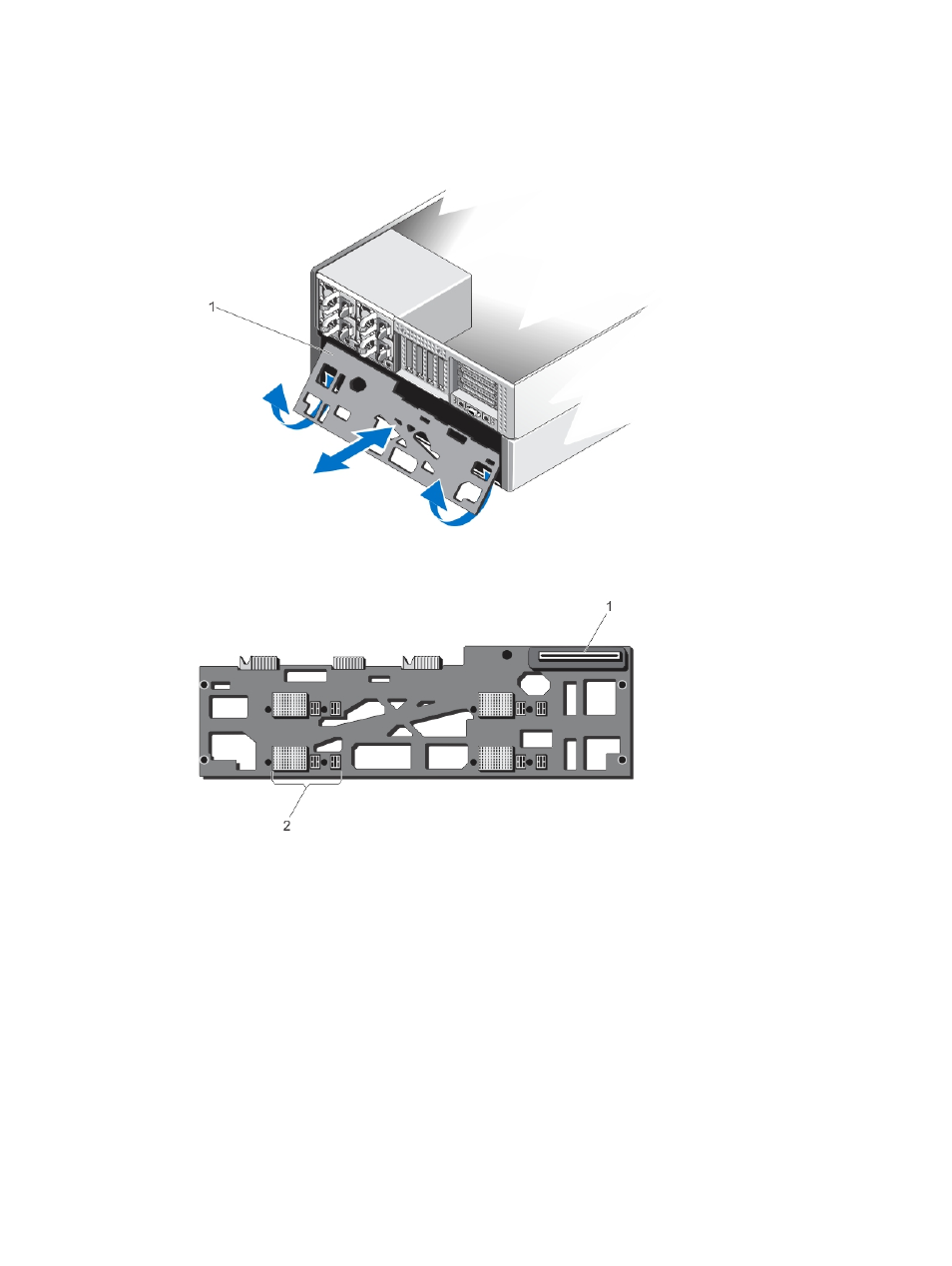

Figure 86. Removing and installing the midplane
1.
midplane
Figure 87. Front view of the midplane
1.
power pass-through board connector
2.
server module connectors (4)
127
