For the 2.5 inch hard drive, turn the hard-drive carrier upside down, and remove the screws from the side rails on
the hard-drive carrier.

2.

Lift the hard drive out of the hard-drive carrier.

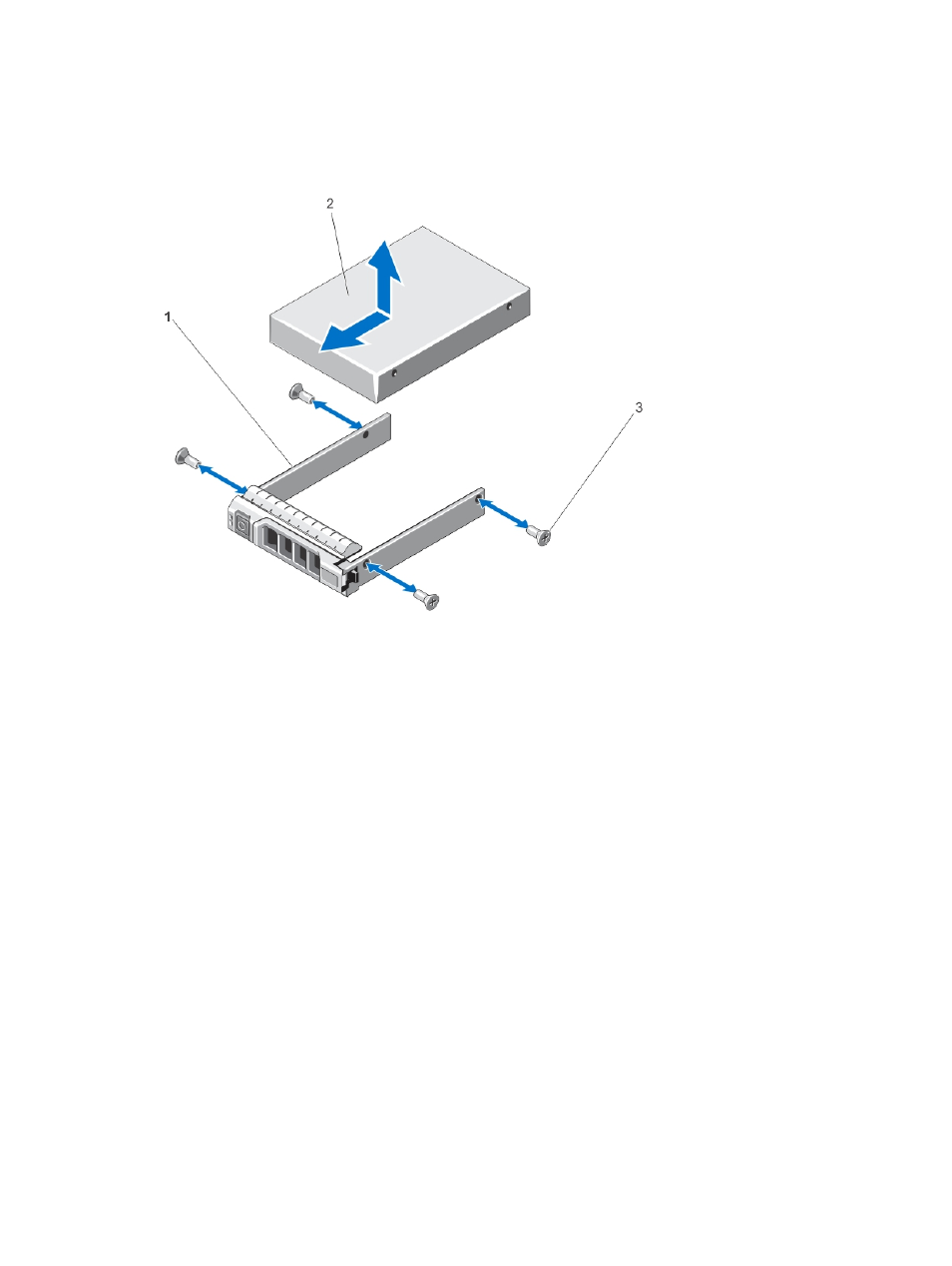

Figure 34. Removing and installing a 2.5 inch hard drive into a hard-drive carrier

1.

hard-drive carrier

2.

hard drive

3.

screws (4)

51
