Item Indicator, Button, or
Connector
Icon Description
3.5 inch hard
drive enclosure Up to twelve 3.5 inch hot-
swappable hard drives.
7 Information tag A slide-out label panel which allows you to record
system information such as Service Tag, NIC, MAC
address, the system electrical rating, and
Worldwide Regulatory Agency marks.
8 Optical drive (optional) One optional SATA DVD-ROM drive or DVD+/-RW
drive.
9 Vents Vents for the temperature sensor.
NOTE: To ensure proper cooling, ensure that
the vents are not blocked.
10 Video connector Allows a monitor to be connected to the system.
11 Server modules Up to four half-height server modules, or up to two
full-height server modules specifically configured
for the enclosure.
KVM features
• Local KVM access can be remotely disabled on a per server module basis, using the server module iDRAC interface
(access is enabled by default).
• One VGA connector — The KVM supports a video display resolution range from 640 × 480 at 60 Hz up to 1280 Ч 1024
Ч 65,000 colors (non-interlaced) at 75 Hz.
• Two USB ports for keyboard and mouse.
• The KVM provides access to the server modules. You can access one server module at a time using the LCD panel.
Hard-drive indicator patterns

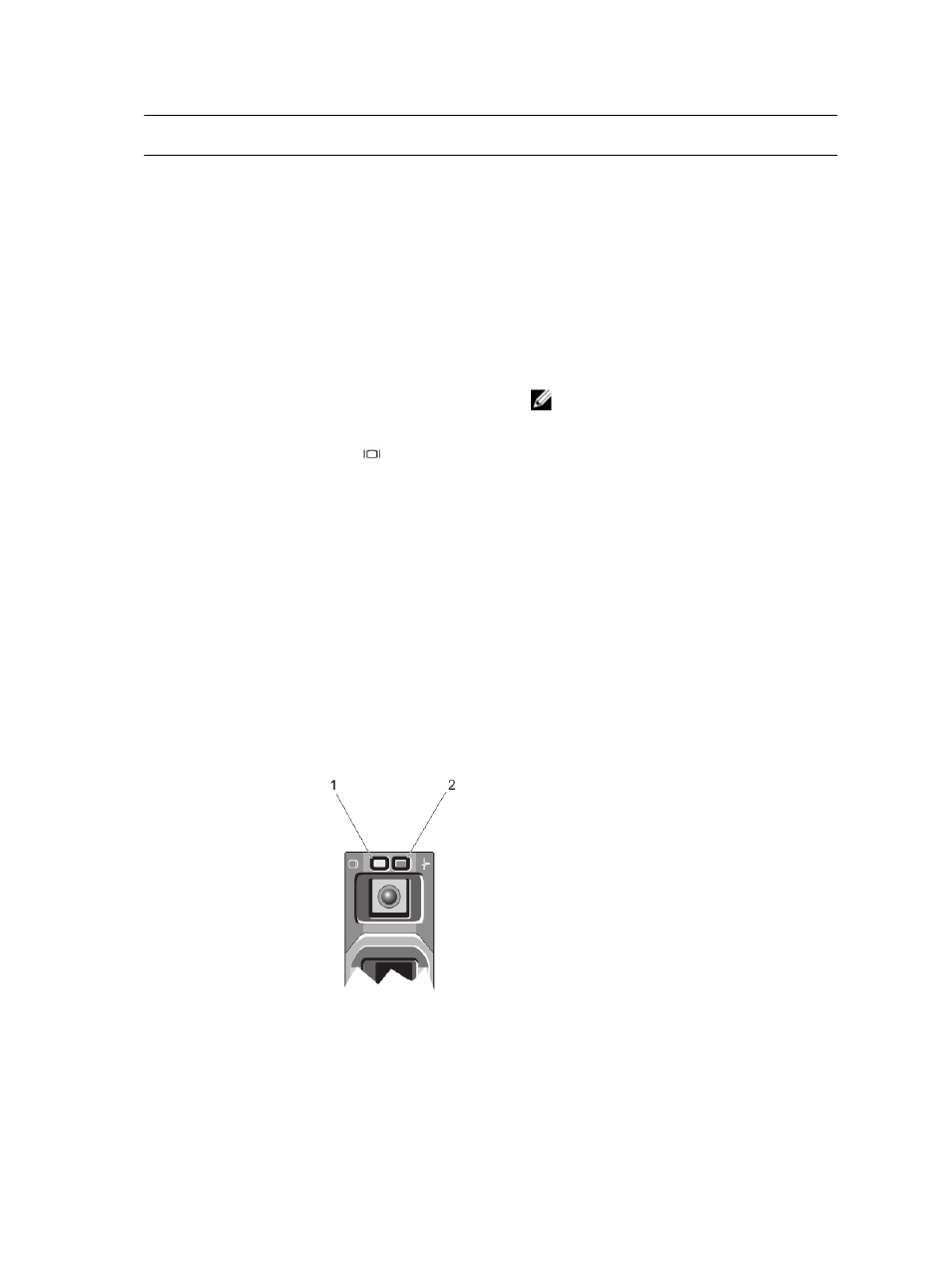

Figure 16. Hard-drive indicators
1. hard-drive activity indicator (green) 2. hard-drive status indicator (green and amber)
