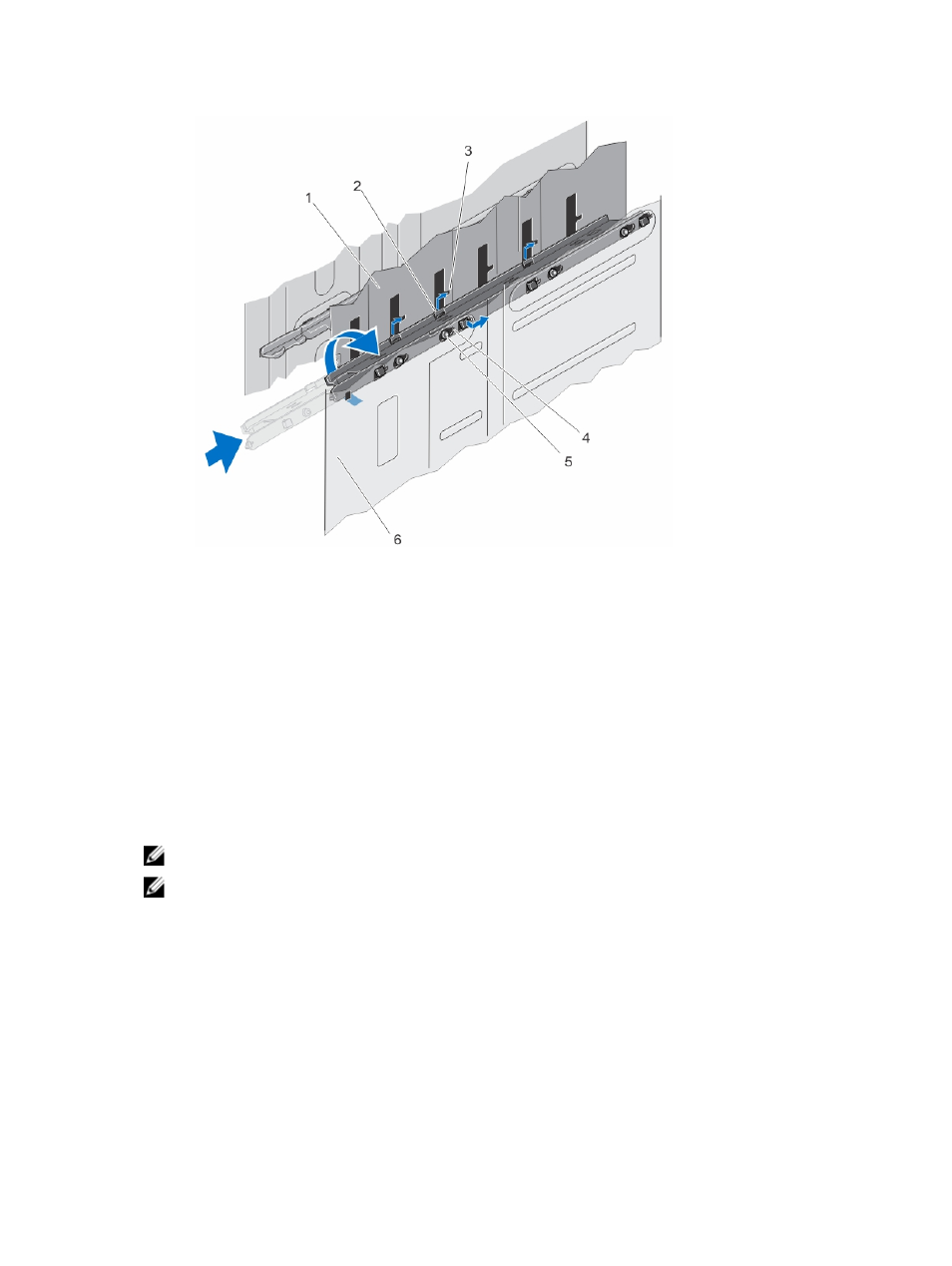

Figure 42. Installing the server module partition between slots 2 and 4
1. metal partition 2. tabs on server module partition
3. slots on the metal partition 4. slots on the inner chassis wall
5. tabs on the server module partition 6. inner chassis wall
7. Install the server modules.
8. Reconnect the enclosure to its electrical outlet and turn the enclosure on, including any attached peripherals.
9. Turn on the server modules using the operating system commands or the CMC.
10. If applicable, install the front bezel.
Power supplies
Your system supports up to four 1100 W or 1600 W AC power supplies in 1+1, 2+1, 3+1, and 2+2 redundant configurations.
NOTE: All power supplies must be of the same type and have the same maximum output power.
NOTE: In the 2+2 redundant configuration, PSU1 and PSU2 are connected to one grid, and PSU3 and PSU4 are
connected to another grid.
Power supply blanks
If the enclosure is operated with less than four power supplies, power supply blanks must be installed in the unoccupied
power supply bays to maintain proper cooling airflow in the enclosure.
To remove the power supply blank in the bay, pull outward on the blank.
