7
System board connectors

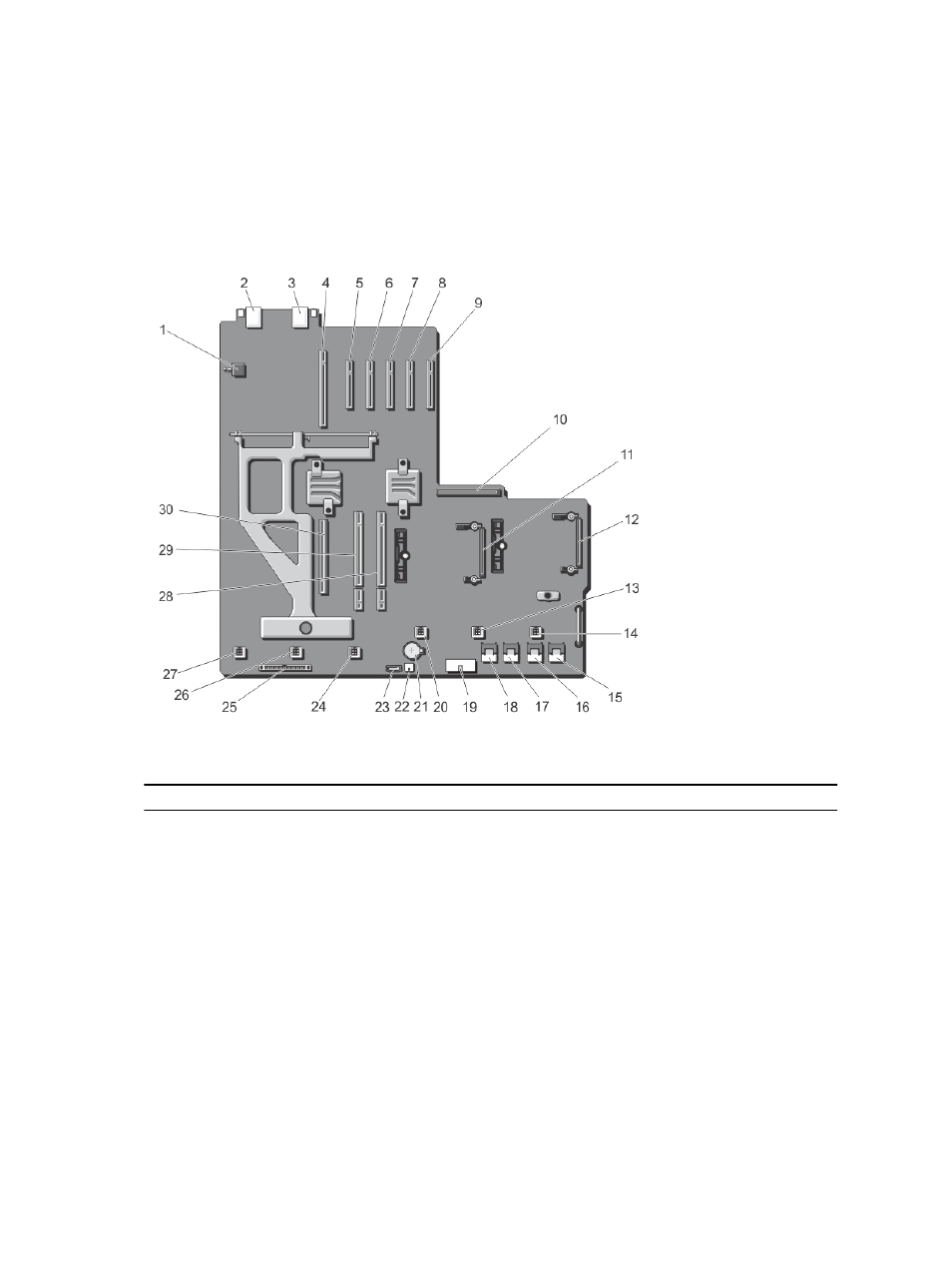

Figure 93. System board connectors
Table 3. System board connectors
Item Connector Description
1 SW2 Chassis intrusion switch
2 J_CMC1_RJ45 Ethernet port
3 J_CMC2_RJ45 Ethernet port
4 P_FH_RISER1 Expansion-card riser connector
5 P_SLOT4_G2_X8_HP Low profile expansion card connector
6 P_SLOT5_G2_X8_HP Low profile expansion card connector
7 P_SLOT6_G2_X8_HP Low profile expansion card connector
8 P_SLOT7_G2_X8_HP Low profile expansion card connector
9 P_SLOT8_G2_X8_HP Low profile expansion card connector
142
