Technical Overview: Dell™ Inspiron™ 3700 System Reference
System Features

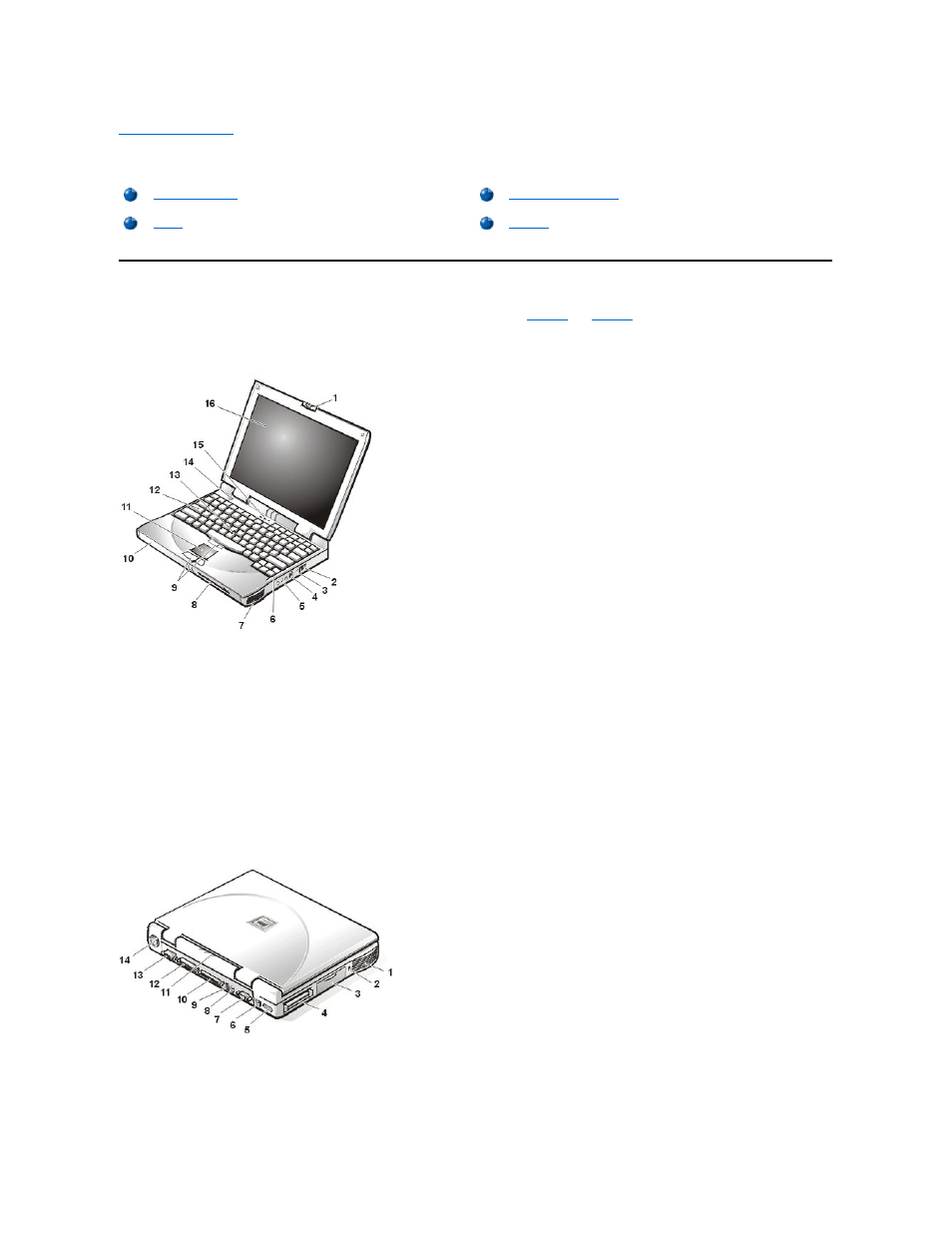

This section describes the major hardware and software features of your computer. Figure 1 and Figure 2 show the front and back view of the
computer, respectively.
Figure 1. Front View of the Computer
Figure 2. Back View of the Computer
System Features IRQ Line Assignments
Video Memory
1 Display latch 9 DualPoint buttons
2 Air intake 10 Battery bay
3 Security cable slot 11 Touch pad
4 TV-out S-video connector 12 Keyboard
5 Audio connectors (3) 13 Track stick
6 Integrated microphone 14 Power button
7 Speaker 15 Keyboard status indicators
8 Media bay 16 Display
1 Speaker 8 PS/2 connector
2 Security cable slot 9 USB connector
