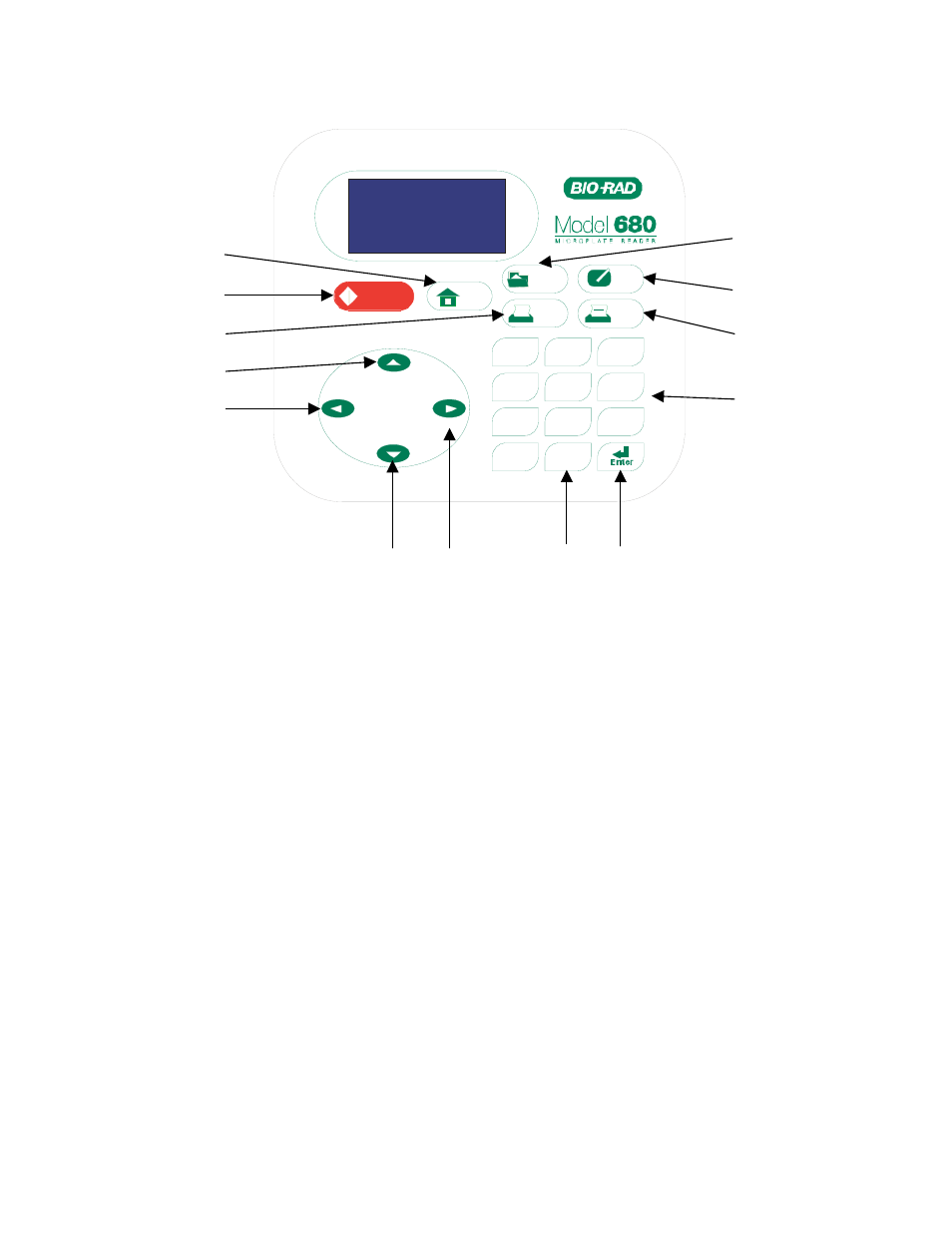

2.3 Membrane
Keypad
1. Main
Returns to MAIN SCREEN.
2. Start/Stop
Initiates plate reading using current active protocol.
Stops
plate
reading
and
printing.
3. Paper Feed
Advances paper strip in internal printer.
4. Up Arrow
Moves the cursor upward. Selects the alphabet or the symbol.
5. Left Arrow
Returns to the previous screen. Moves the cursor to the left.
6. Down Arrow
Moves the cursor downward. Selects the alphabet or the symbol.
7. Right Arrow
Moves the cursor to the right. Changes or selects the value and type.
8. Dot/Function
Inputs the dot. Changes the input mode.
9. Enter
Completes or seals a field entry.
10. Ten Keys
Inputs numbers or well type in plate mapping.
0 / EMP : Empty
5 / QC : QC control
1 / SMP : Sample
6 / CAL : Calibrator
2 / BLK : Blank
7 / CP
: Positive Control
3 / STD : Standard
8 / CN : Negative Control
4 / CO : Cutoff control
9 / CW : Weak Positive Control
11. Print
Prints out the plate data and protocol information.
12. Edit
Enter the Edit Menu, and set up the instrument.
13. Memory Recall
Read out protocol and plate data.
Memo ry
Recall
E dit
Main
P rin t
P aper
Feed
Sta rt/ Sto p
0
EMP
1
SMP
4
CO
7
CP
.
FUNC
2
BLK
5
Q C
8
CN
3
S TD
6
CAL
9
CW
Back
Ch ange
A Z
⇒
Z A
⇒
+ -・・
9
3
4
5
6
7
10
8
2
1
11
12
13
