Displaying gel images, Display gel options – Bio-Rad Image Lab™ Software User Manual
Page 90
5
| Viewing Images
90 | Gel Doc EZ Imaging System with Image Lab Software
Displaying Gel Images
The display toolbar is located above the gel image. Each tool is described in the
following sections.

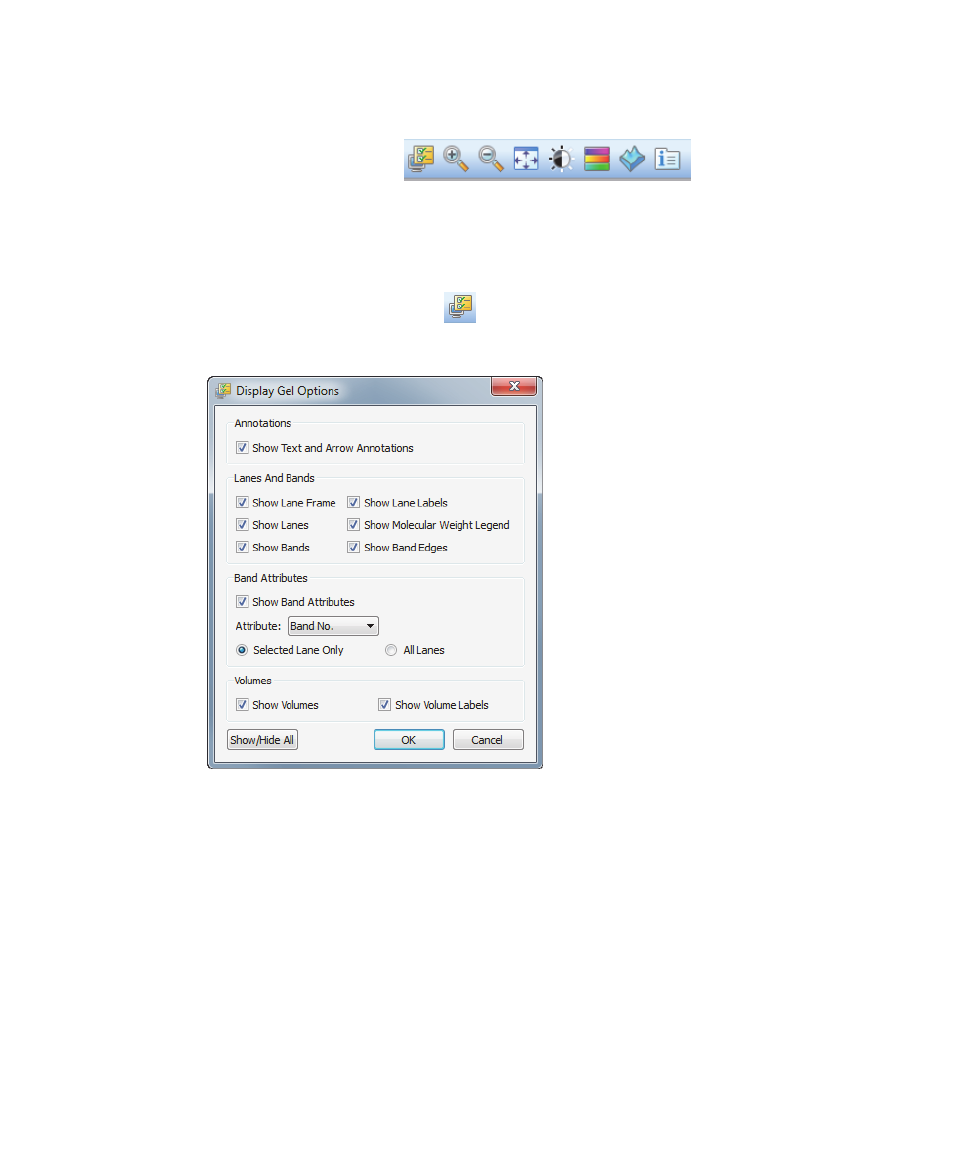

Display Gel Options
This section describes the settings in the Display Gel Options dialog box.
Annotations
You can choose whether to show text and arrow annotations that have been drawn
on the image.
Lanes and Bands
You can turn on or off any image overlays, such as lane frames, lanes, bands, lane
labels, molecular weight legends, and band edges.
