Displaying Data
User Guide | 101
Area — area of the volume in mm 2 .
Lane Profile
Background
Band
boundaries

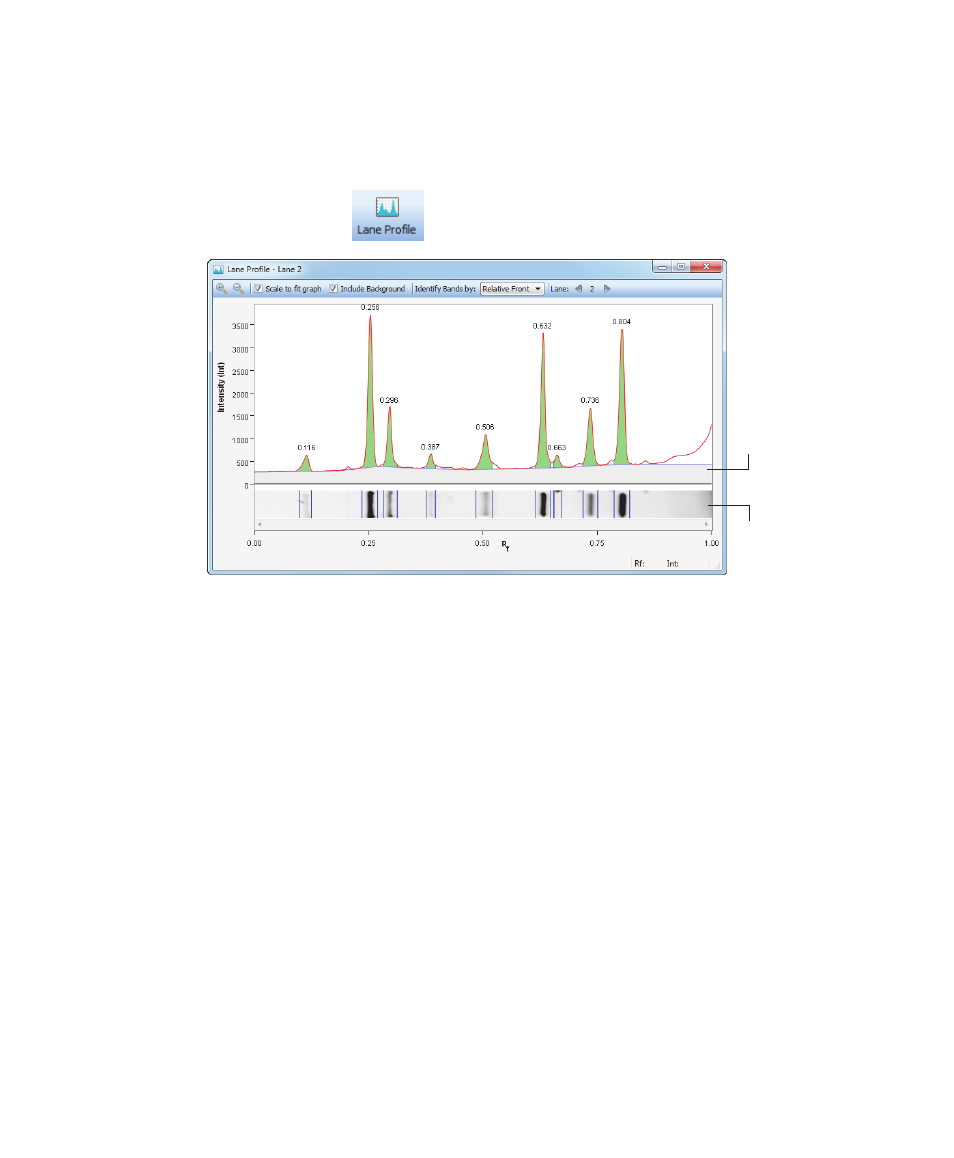

The Lane Profile option shows a cross-section view of a single lane rotated 90°.
To explore the Lane Profile window
 Use the Next and Previous buttons at the top of the window to page
through profiles of the lanes in your image.
 Click on a lane in your image to see its profile.
The title bar identifies which lane profile is in view (Lane 1, Lane 2, and so on).
There are several settings in the title bar.
 Scale to fit graph
 Include Background
 Identify Bands by
These settings, as well as the zoom tools, are global. They apply to all the profiles.
