6 | Analyzing Images
108 | Gel Doc EZ Imaging System with Image Lab Software

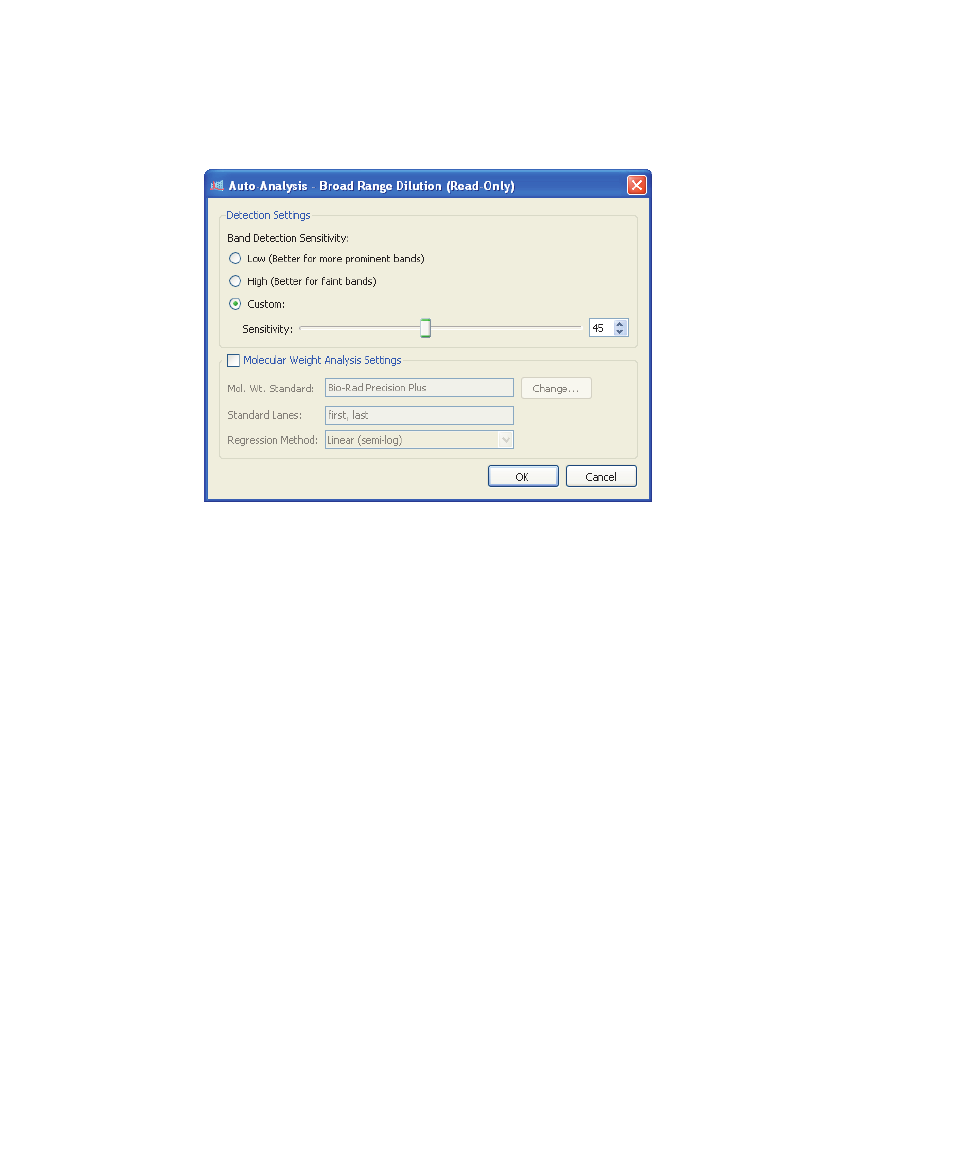

Auto Detection Settings
The band detection sensitivity options are as follows:
Low Band Detection Sensitivity — sets detection at a low level for images with
prominent bands. Faint bands are not detected with this setting.
High Band Detection Sensitivity — sets detection at a higher level for images that
are faint. Extraneous bands can be removed using the Band Tools in the Analysis
Tool Box. See Lane and Bands Tools on page 113 .
Custom — enables you to set a value between 1 and 100 to select the best
detection sensitivity for your sample. You can also drag the sliding bar left or right to
set the value.
When Low Band Detection Sensitivity is used, the numerical value is set at 25; when
High Band Detection Sensitivity is used, the value is set at 75.
Molecular Weight Analysis Settings
Molecular Weight Standard — choose any of the many Bio-Rad standards or
another standard you added to your standards list.
Standard Lanes — choose or change the lanes in which the standards are placed.
