Bio-Rad Image Lab™ Software User Manual
Page 72
4
| Acquiring Images
72
| Gel Doc EZ Imaging System with Image Lab Software

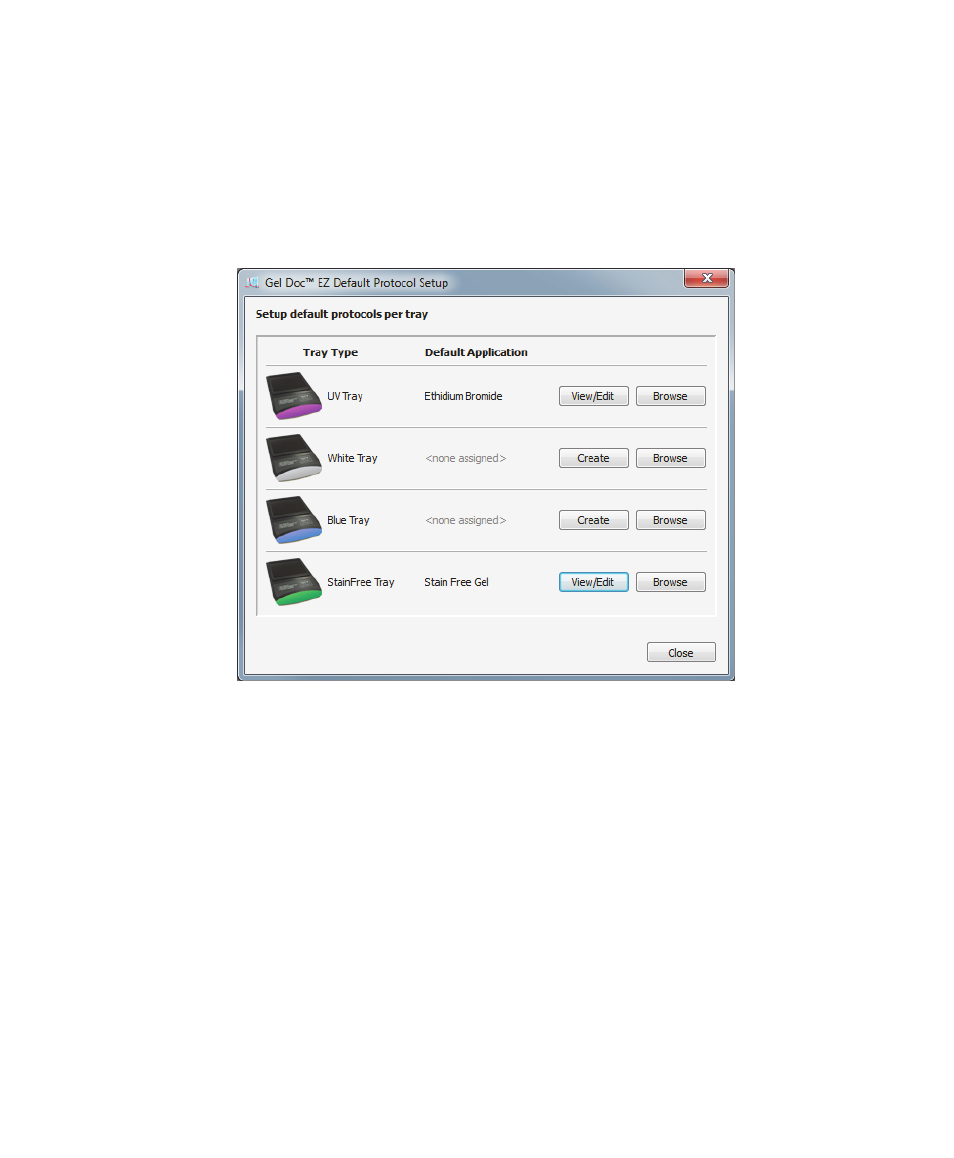

A Default Protocol Setup window displays each sample tray type as well as
buttons that enable you to create a protocol or browse to an existing protocol.
Trays that have not been initialized are unavailable for editing or browsing. Note
that after you create a default protocol, the Create button changes to View/Edit
so you can review or change the protocol settings.
2.
Click Create for the sample tray type for which you want to create a protocol.
The first Protocol Setup window appears. The title bar identifies the protocol as
a default protocol. The imager type and sample tray type are also shown.
