4-28 ADS FlowAlert Manual

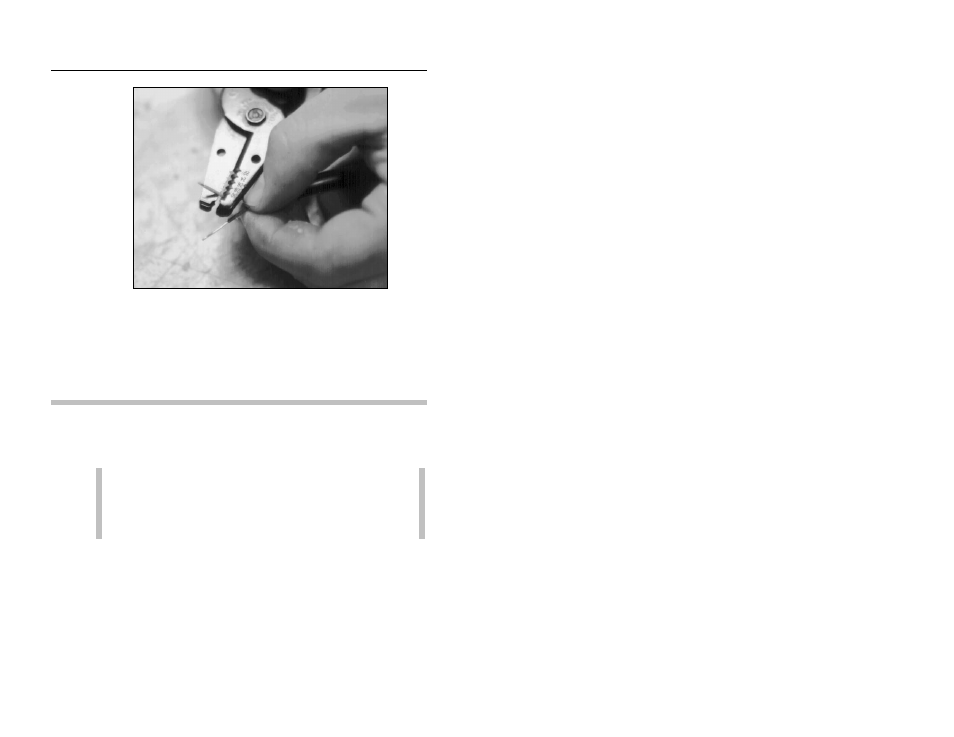

Stripping ½ inch of insulation from each wire
5. At the pedestal end of the cable, fold over both exposed wires
(doubling the thickness). Insert each wire into a non-insulated
#10 ring terminal lug (22-18 gauge), and crimp the wires to the
lugs.
Wiring the Telephone Cable to the Monitor
After preparing the telephone cable, wire the telephone cable to the
monitor in the following way:
Note: Wiring the telephone cable to the monitor requires
an intermediate cable (External Power/Phone Cable - ADS
p/n 5000-0697) supplied by ADS when ordering a
FlowAlert monitor equipped for landline communication
1. Unpack the FlowAlert phone cable (ADS p/n 5000-0697). This
is the same cable as the RainAlert II phone cable and the
FlowShark External Power Cable. The pigtail consists of two
bundled pairs: green/white and red/black. If these soldered
junctions must be modified or stripped to simplify the phone
junction process, keep the pairs together. Although they do not
require soldering, the green/white and red/black pairs must
