5-6 ADS FlowAlert Manual

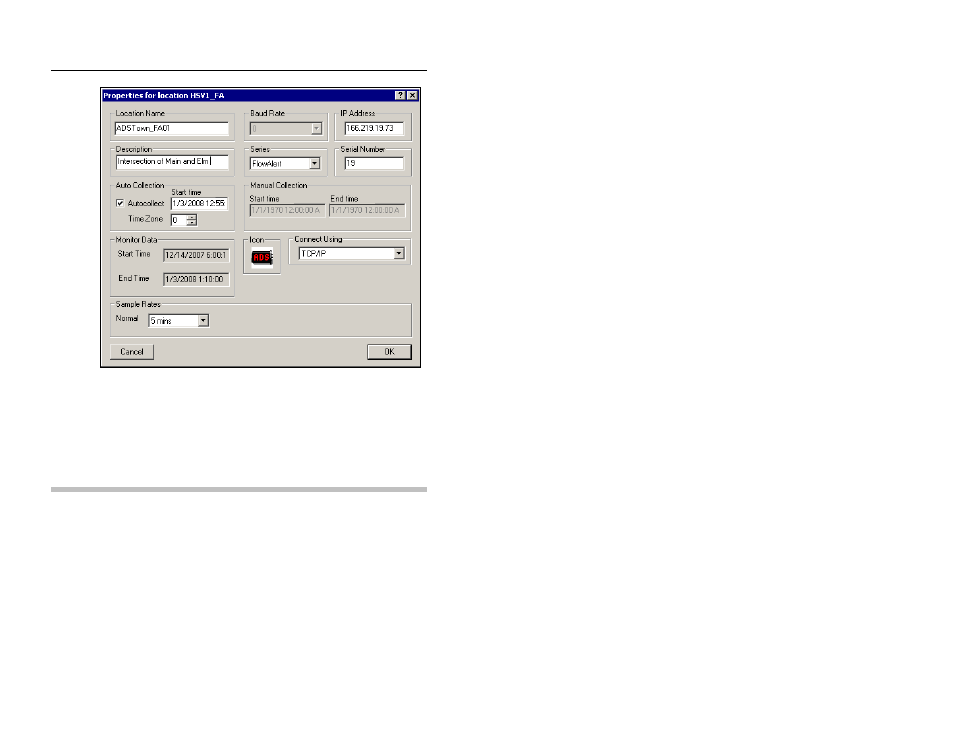

Completed Properties dialog for monitor location
11. Click on the OK button to create a LIF for the location in the
database and exit the dialog.
The new monitor location with a single monitoring point is now
created and configured in the database.
Creating an Installation Table
Creating an installation table involves defining the size, shape, and
physical characteristics of the monitoring point. This table is
required for all FlowAlert installations, even those that do not
include a pressure depth sensor. Base all measurements for the
installation table on the incoming (upstream) pipe.
The user can create an installation table using the Installation
Generator in the Profile software in the following way:
