7. Setup
97
▫ Baud rate
Click the “BAUD RATE” button in the PAN/TILT window and choose a value among
1200bps, 2400bps, 4800bps, 9600bps, 19200bps, 38400bps, 57600bps and 115200bps
on the Baud Rate pop-up window by clicking the mouse.

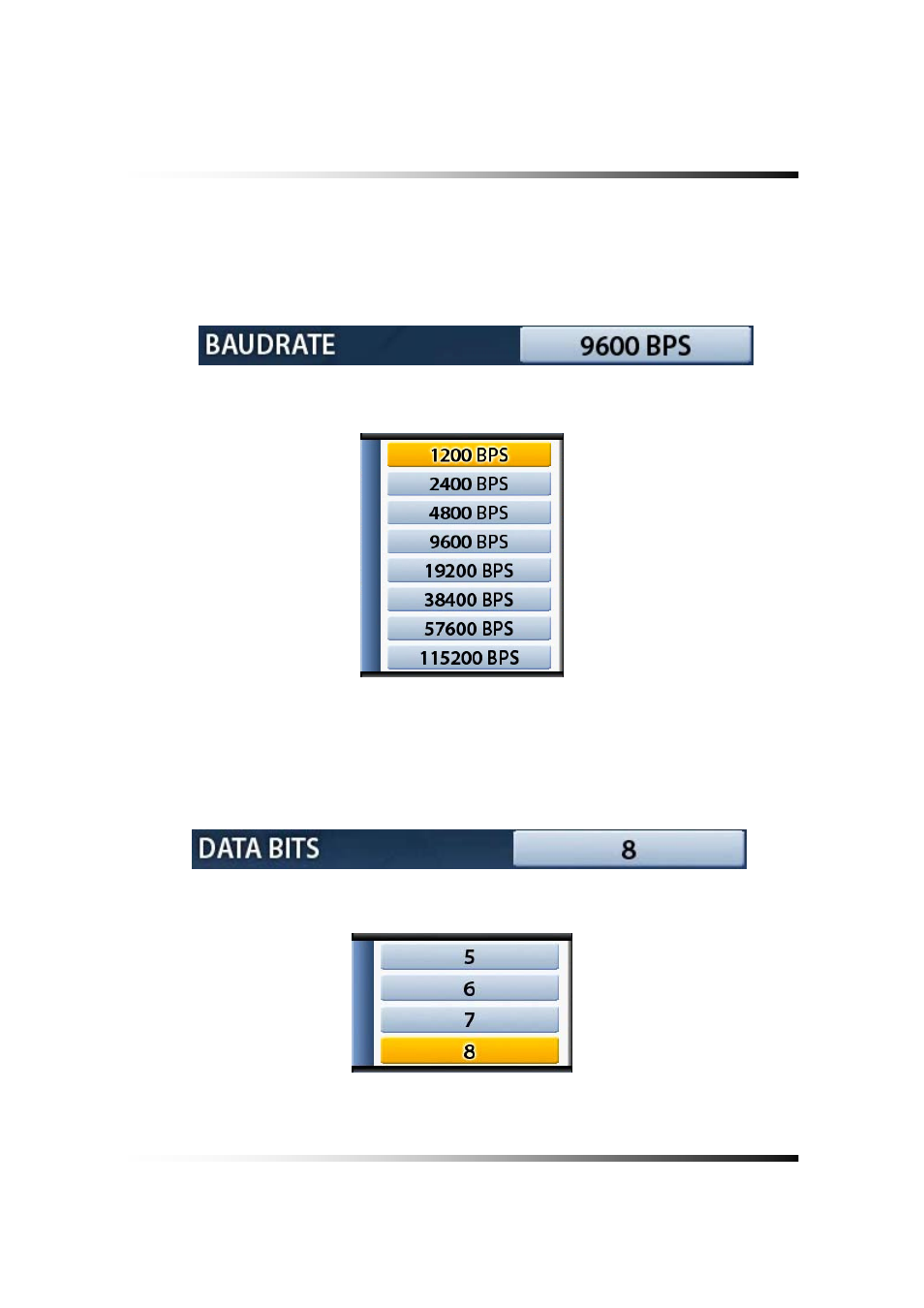

[Fig. 7-41 BAUDRATE button]
[Fig. 7-42 Baud Rate pop-up window]
▫ Data Bits
Click the “DATA BITS” button in the PAN/TILT window and choose a value among 5, 6, 7
and 8 on the Data Bits pop-up window by clicking the mouse.
[Fig. 7-43 DATA BITS button]
[Fig. 7-44 Data Bits pop-up window]
