7. Setup
105

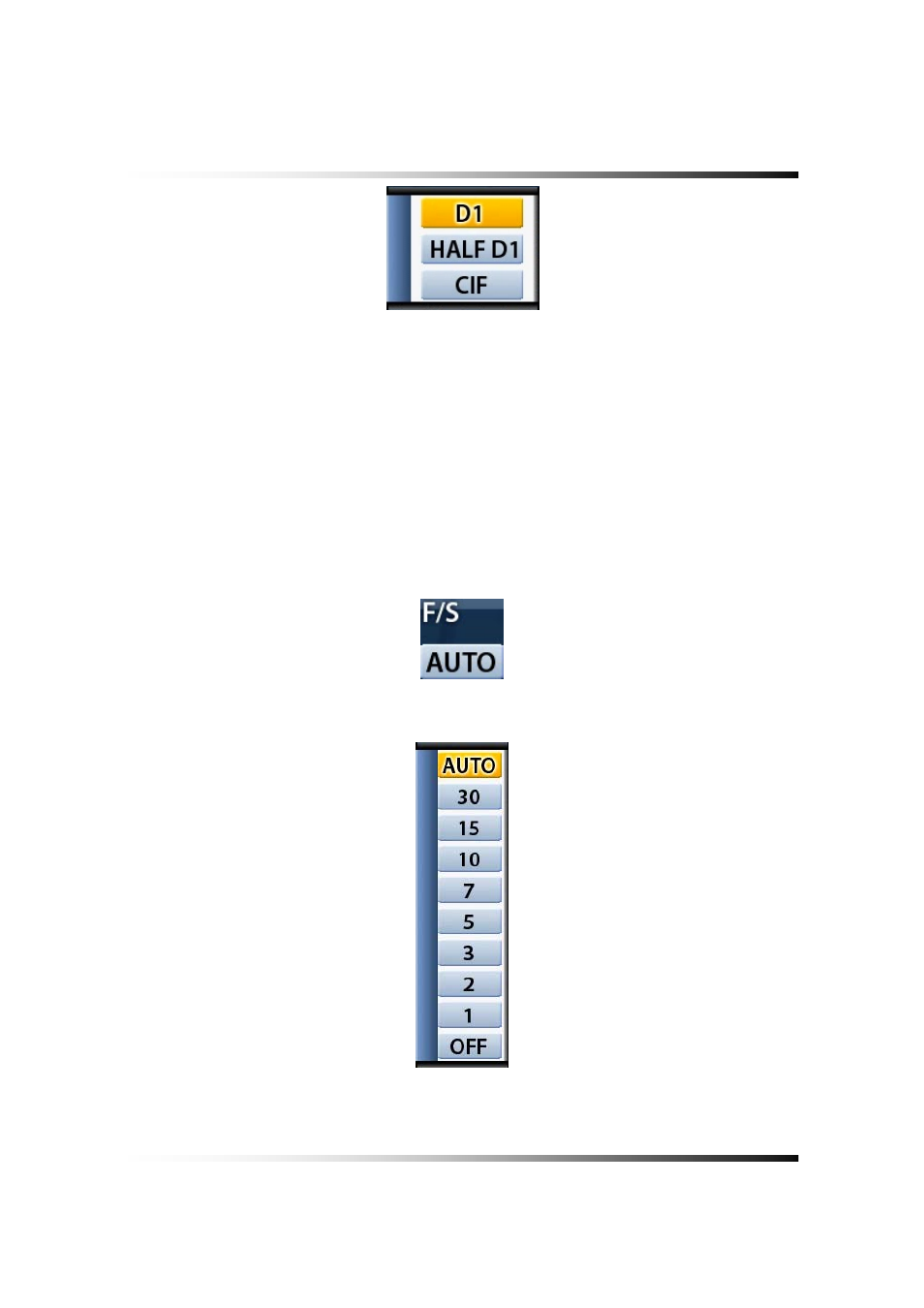

[Fig. 7-64 Record Size pop-up window]
7-6.6. Recording Speed
▫ Click the F/S (Frames Per Seconds: Recording Speed) button on each of the channels in
the RECORD menu, then the Recording Speed pop-up window will be displayed as shown
in [Fig. 7-66].
▫ Select one of the Recording Speed among AUTO, 30, 15, 10, 7, 5, 3, 2, 1 and OFF on the
pop-up window by clicking the mouse.
▫ If the AUTO is selected on all the channels, the Recording Speed on all the channels
should be the same. If the OFF is selected, the corresponding channel won’t be recording.
[Fig. 7-65 Record Speed button]
[Fig. 7-66 Record Speed pop-up window]
