Stand-alone DVR Instruction Manual
108
7-6.9. Recording by Motion Detection
When the menu of motion is properly set up (See section 7-6.3 for all the channels and
this section for each of the channels) and detected motion of objects, the system begins
recording automatically. The recording icon on the MENU window should be selected in
this recording mode. If not, it won’t be recording.
▫ Click the mouse on the button for each of the channels in the RECORD menu, then the
MOTION menu will be displayed on the screen as shown in [Fig. 7-70].
▫ Click the (EXIT) button to return to the RECORD menu.

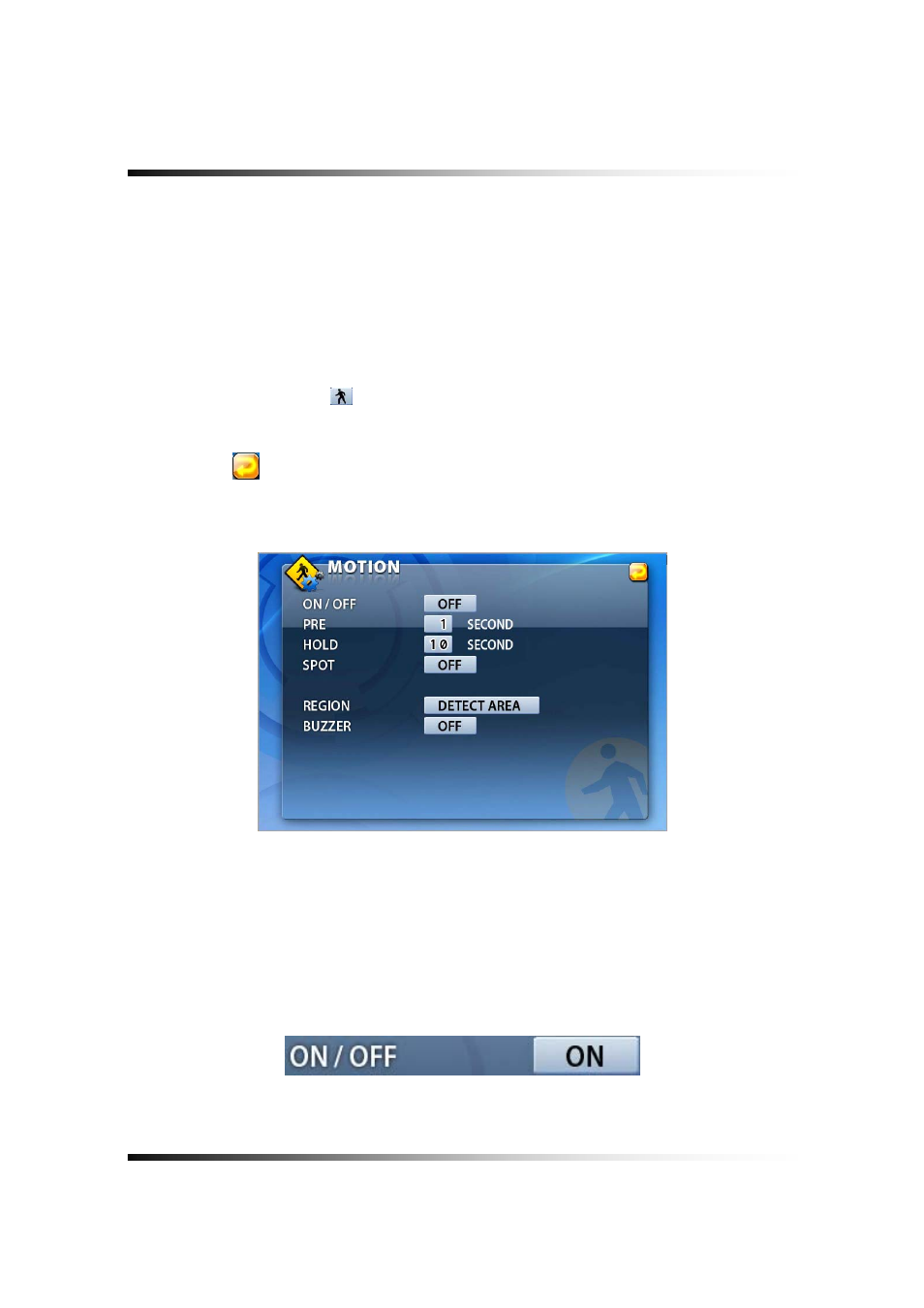

[Fig. 7-70 MOTION menu]
▫ ON/OFF
The system will start recording when MOTION is detected and the ON is selected in the
MOTION menu by clicking the mouse. If the OFF is selected, the system won’t be
recording.
[Fig. 7-71 MOTION ON/OFF button]
