Stand-alone DVR Instruction Manual
120

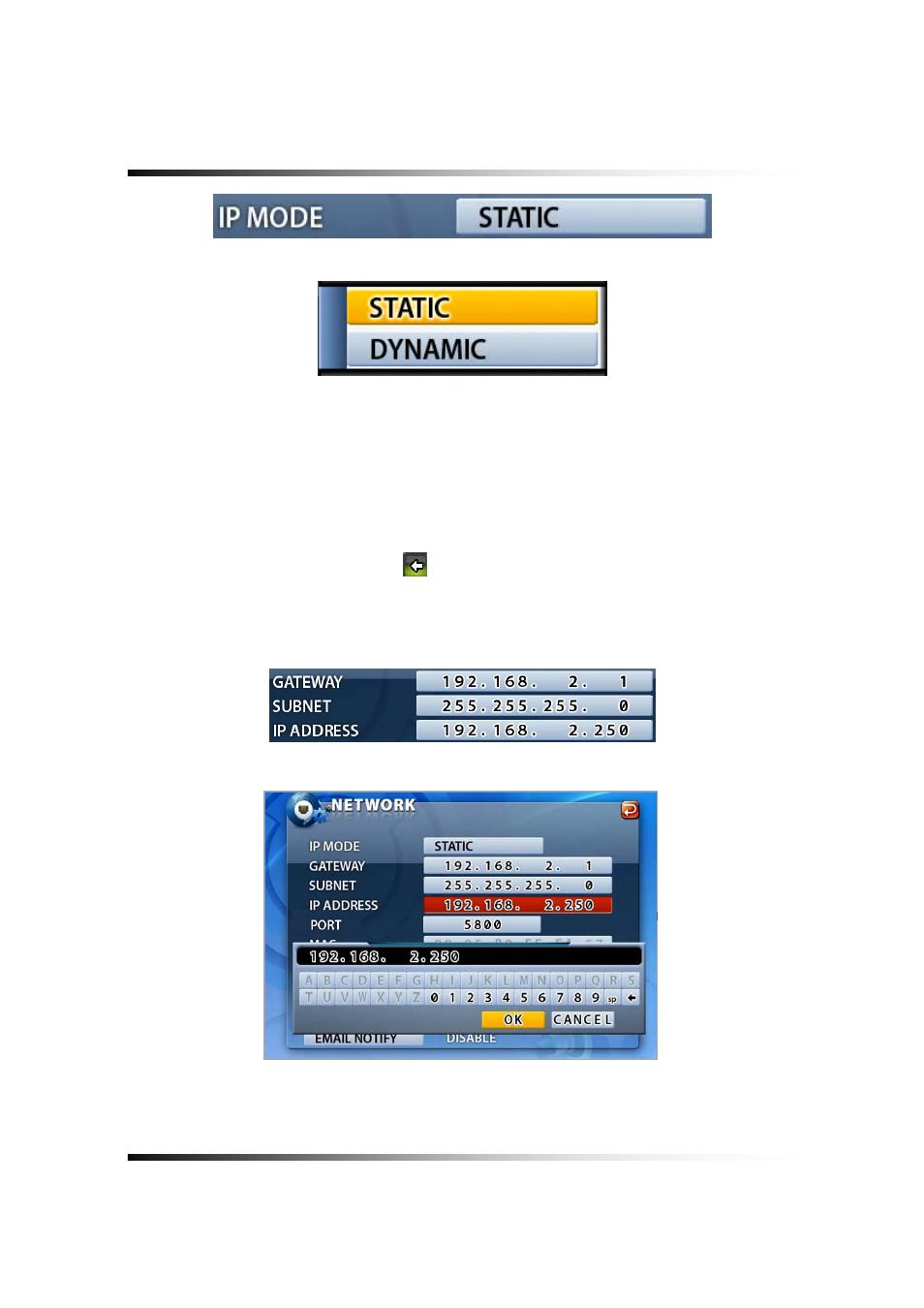

[Fig. 7-91 IP Mode button]
[Fig. 7-92 IP Mode pop-up window]
7-7.2. GATEWAY, SUBNET, IP ADDRESS
▫ Click the GATEWAY / SUBNET / IP ADDRESS button in the STATIC IP MODE, then the
On Screen Keyboard will appear.
▫ Delete the current values with the button and enter the address numbers by using On
Screen Keyboard, and then click OK button to set with new address.
▫ Click the CANCEL button to return to the original values.
[Fig. 7-93 Address Setup window]
[Fig. 7-94 On Screen Keyboard]
