8. REMOTE HOST PROGRAM
151
8-4.9. Connection mode
There are two kinds of connection mode (See [Fig. 8-19]) on the DvrMaster. Select one of them
by clicking the mouse depending on your application.

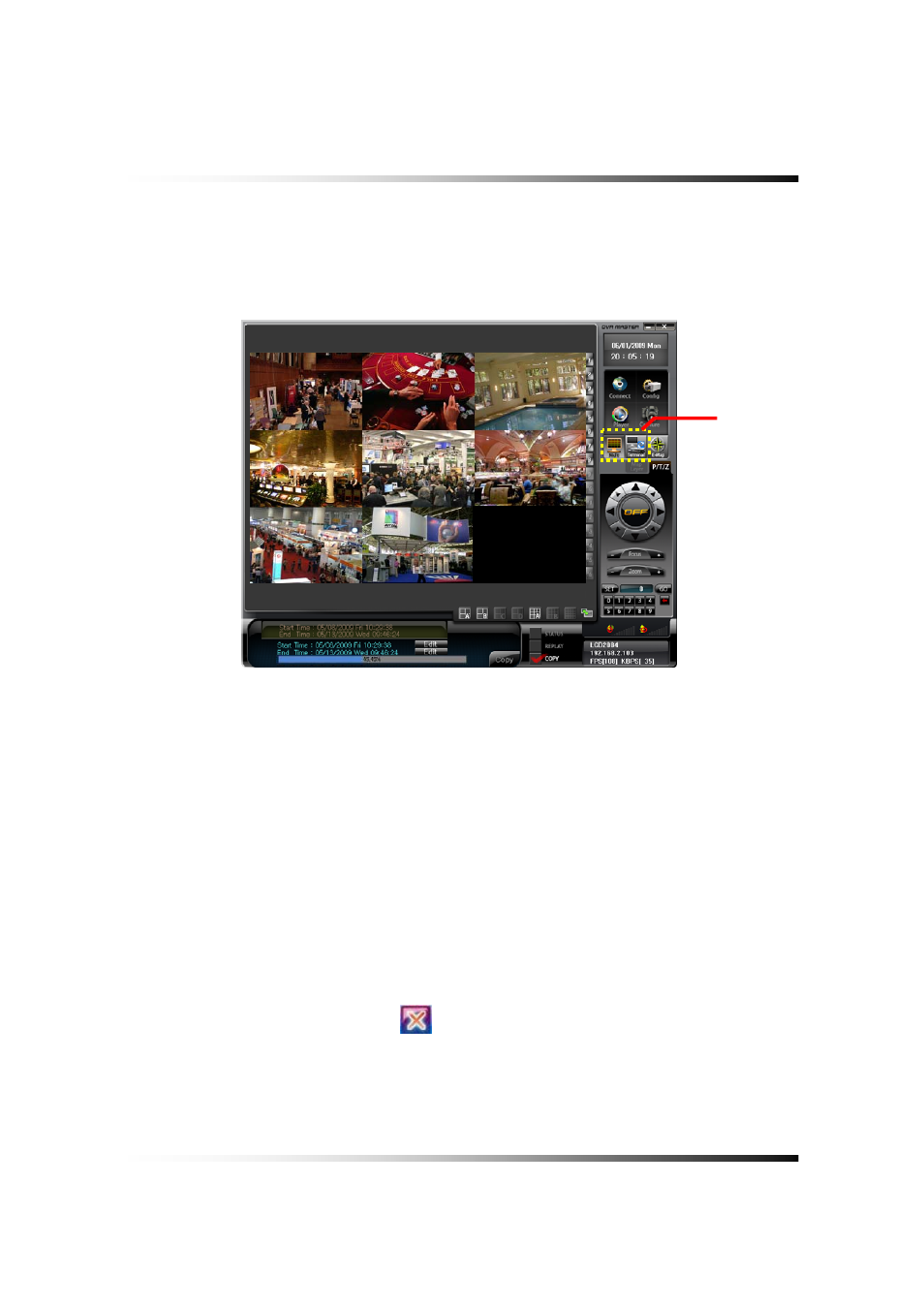

[Fig. 8-19 Connection Mode]
8-4.9.1. Terminal mode
The functions of icons such as Recording, Play, Copy, Setup, System Status, Pan/Tilt, Display,
Zoom and OSD on the bottom of the screen are identical to ones DVR system has.
If the terminal mode button on the DvrMaster (See [Fig. 8-19]) is selected, the image of
channel 16 won’t be displaying on the monitor connected to DVR and DvrMaster.
- Right-click on the screen to appear the icons and right-click it again to disappear.
- For displaying a full screen, click one of channels and for the split screen, click it again.
To display the image of channel 16 on the DVR’s monitor,
- Switch the terminal mode to multi mode on the DvrMaster.
- Or exit the DvrMaster by clicking on the upper right-hand corner of the screen.
Connection mode
