5. Installation
27

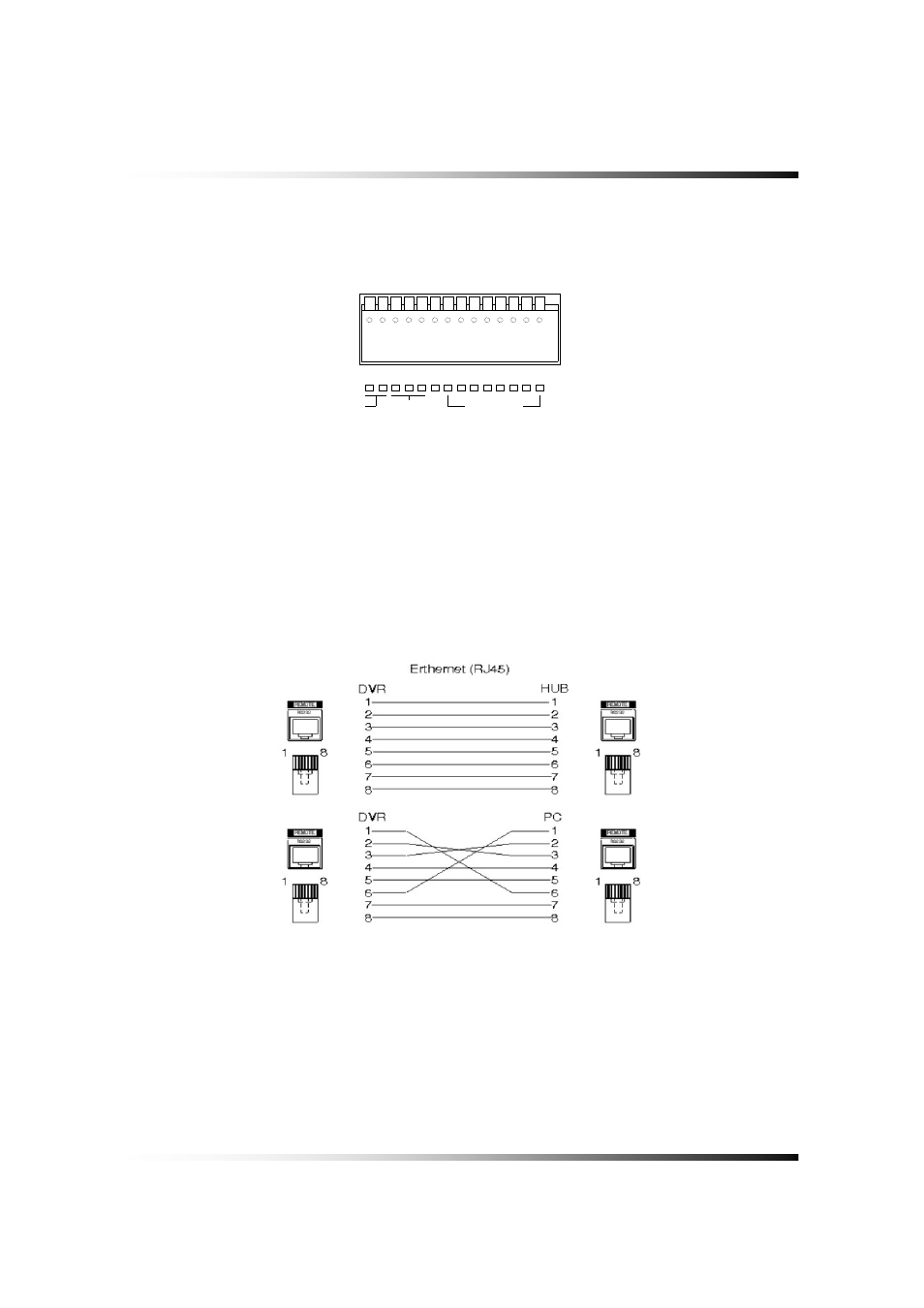

5-4.4. RS485 Connection
▫ Connect the cable to the “RS485 PORT” on the terminal block of the system.
[Fig. 5-8 RS485 Connection]
5-4.5. Connection to an Ethernet Network (Optional)
▫ Connecting the cable to Ethernet.
Our Ethernet connector is a RJ45 type. The maximum cable length is 300 ft. When you want
to use a longer cable, we suggest using repeater.
[Fig. 5-9 Straight-through & Crossover Cable]
1 2 3 4 5 6 7 G 8 NC + - NO
ALARM IN
C
RS485 ALARM
