ULTRA-CUT 400 XT
Manual 0-5306 INSTALLATION 3-25

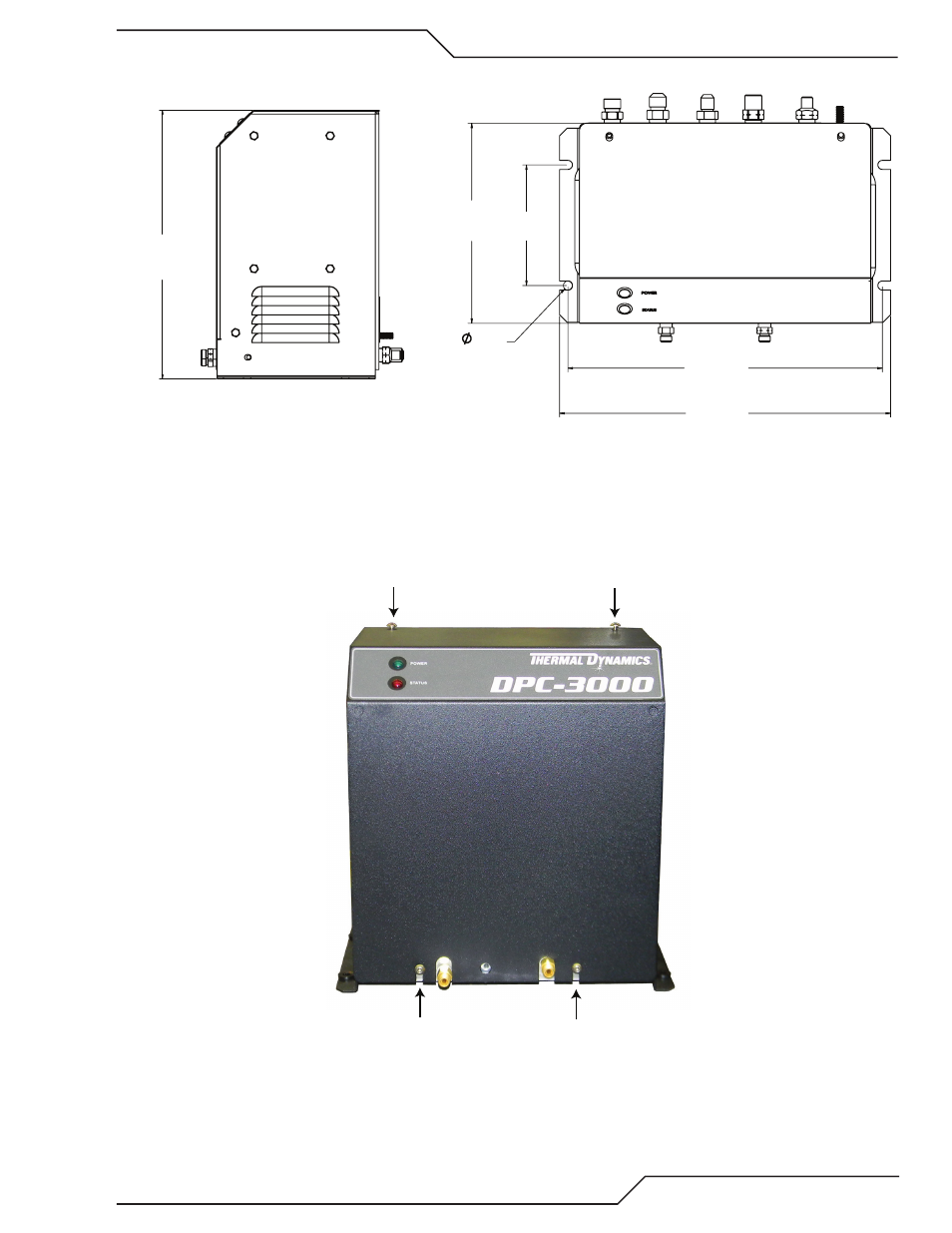

Mounting Dimensions
10.90 in
[276.86 mm]
DPC-3000 Profile
4.00 in
[101.6 mm]
6.64in
[168.7mm]
11.00 in
[279.4 mm]
10.45 in
[265.4 mm]
.30 in
[7.62mm]
DPC-3000 Top
Art # A-09143
Preparation
1. Remove the screws securing the Cover Panel to the Module.
Loosen or remove 2 screws
Remove 2 Screws
Art # A-09144_AB
2. Carefully remove the cover from the module noting the attached wire harness that connects to J4. Remove the wire har-
ness and then set the cover to the side.
