Appendix 23: system schematic 400a, 480v pg 2, Ultra-cut 400 xt, Ccm cpu pcb ccm i-o pcb – Tweco 400 XT Ultra-Cut Plasma Cutting System With Automated Gas Control User Manual

Page 166: Mc3a mc3b, Mc2a mc2b ts1, W2 w1, Mc1a r2, Fan1

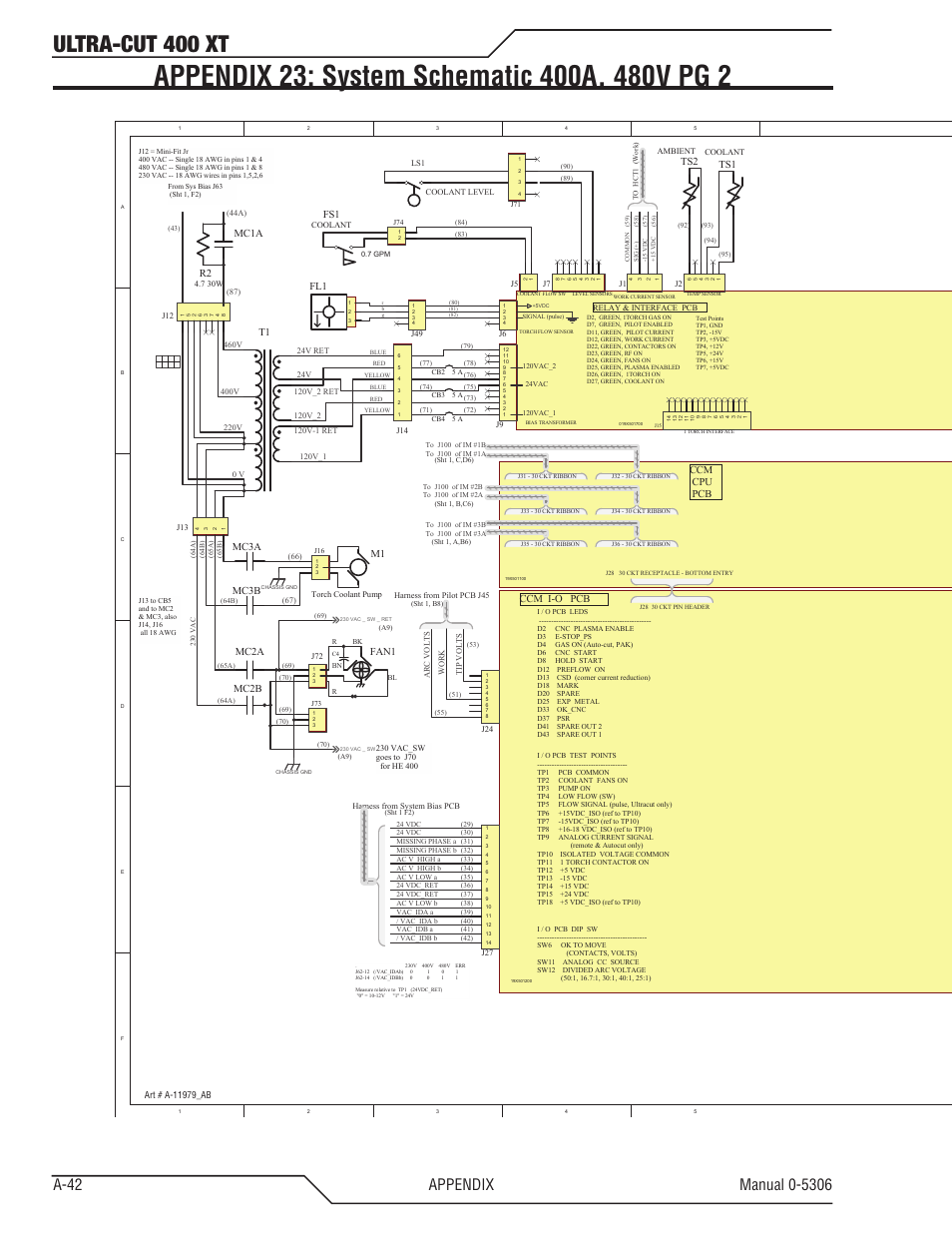

Appendix 23: system schematic 400a, 480v pg 2, Ultra-cut 400 xt, Ccm cpu pcb ccm i-o pcb | Mc3a mc3b, Mc2a mc2b ts1, W2 w1, Mc1a r2, Fan1 | Tweco 400 XT Ultra-Cut Plasma Cutting System With Automated Gas Control User Manual | Page 166 / 206 Appendix 23: system schematic 400a, 480v pg 2, Ultra-cut 400 xt, Ccm cpu pcb ccm i-o pcb | Mc3a mc3b, Mc2a mc2b ts1, W2 w1, Mc1a r2, Fan1 | Tweco 400 XT Ultra-Cut Plasma Cutting System With Automated Gas Control User Manual | Page 166 / 206
