Section 10: Chassis Harness Installation continued

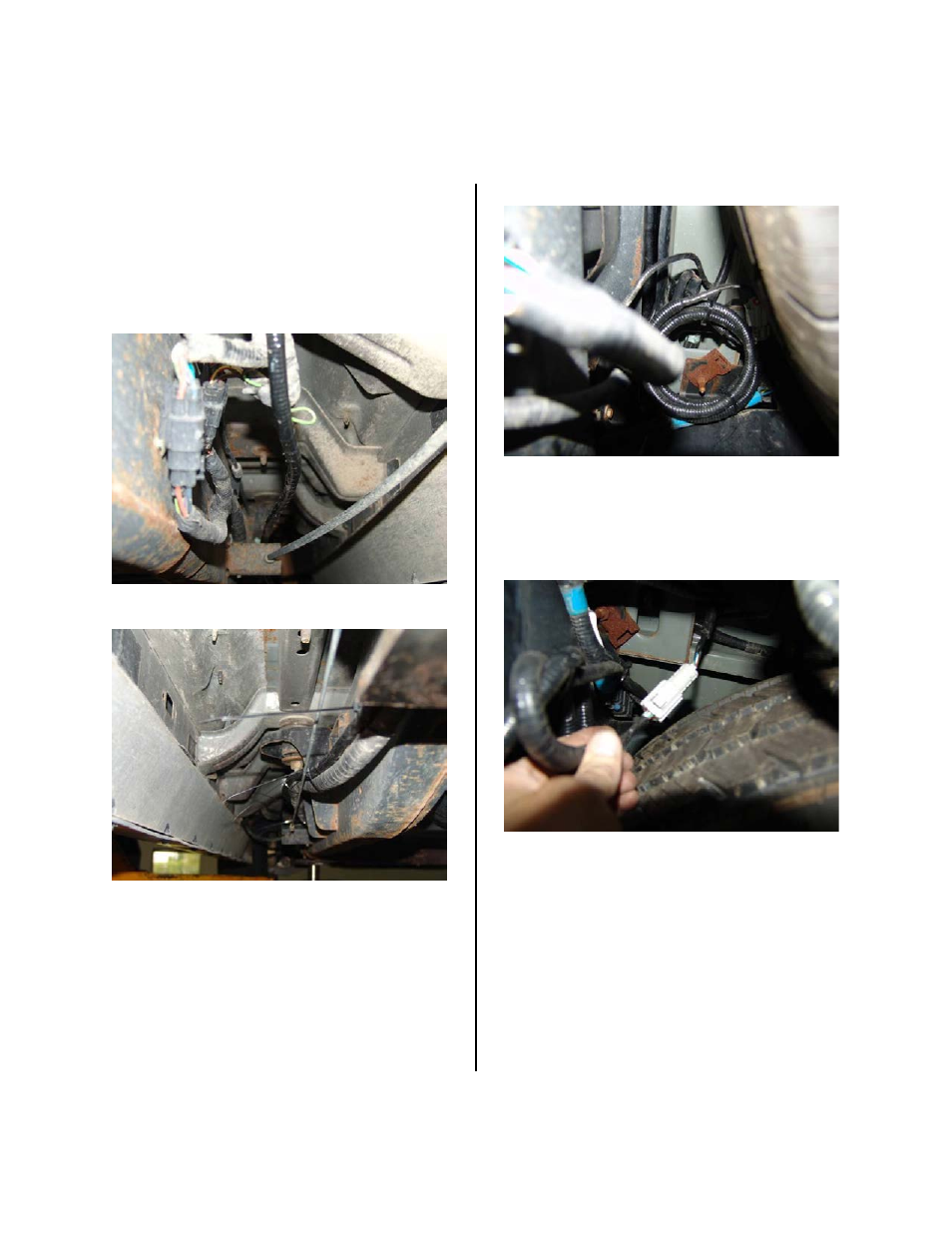

64. Route the exterior portion of the
supplied chassis harness along existing
vehicle chassis harness and over fuel tank.
Using supplied tie wraps, secure the harness
to existing wiring at 2 inch intervals (Figures
43 and 44).
Figure 43
Figure 44
65. Loop any excess from the harness as
shown and secure with tie wraps (Figure 45).
Figure 45
66. Plug the chassis harness into the
camera harness installed earlier under the
pickup bed (Figure 46).
Figure 46
67. Start vehicle with foot on brake and
shift into reverse to check camera operation.
If all of the connections are correct, you will
see an image displayed on the left side of the
supplied mirror.
68. Reinstall all previously removed interior
and exterior parts.
