INSTALLATION INSTRUCTIONS
9527 Instructions 6-18-12 F series-1 (1).doc 12 of 38
Section 7B: Wiring for vehicles with 7-pin mirror connector
36. On the supplied interior harness, near the black
16 pin connector, locate the seven loose wires.
Using Connector C911 pinout diagram opposite,
splice these wires to the vehicle mirror harness
wires where the mirror connector was removed
in step 35 as follows:
• Splice the supplied interior harness black
ground wire to the loose vehicle mirror
ground wire that was in pin 3.
• Splice the supplied interior harness green
reverse wire to the loose vehicle mirror
reverse wire that was in pin 2.
• Splice the supplied interior harness pink
ignition wire to the loose vehicle mirror
ignition wire that was in pin 1.
• Splice the supplied interior harness red
compass (+) to the loose vehicle mirror
compass (+) wire that was in pin 6.
• Splice the supplied interior harness yellow
compass (-) to the loose vehicle mirror
compass (-) wire that was in pin 7.
• Splice the supplied interior harness orange
auto dimming (+) wire to the loose vehicle
mirror auto dimming (+) wire that was in
pin 4.
• Splice the supplied interior harness white
auto dimming (-) wire to the loose vehicle
mirror auto dimming (-) wire that was in pin
5.
37. If you removed the compass circuit board,
per section 7A, on the supplied interior
harness, near the white 6 pin connector, locate
the five loose wires. Using Connector C911
pinout diagram opposite, splice these five wires
to the vehicle mirror harness connector
removed in step 35 as follows:
• Splice the supplied interior harness black
ground wire to the vehicle mirror connector
ground wire. (pin 3)
• Splice the supplied interior harness green
reverse wire to the vehicle mirror connector
reverse wire. (pin 2)
• Splice the supplied interior harness pink
ignition wire to the vehicle mirror connector
ignition wire. (pin 1)
• Splice the supplied interior harness red
compass (+) wire to the vehicle mirror
connector compass (+) wire. (pin 6)
• Splice the supplied interior harness yellow
compass (-) wire to the vehicle mirror
connector wire. (pin 7)
• If you did not remove the compass circuit
board, isolate the five loose wires with
electrical tape, as they will not be used.

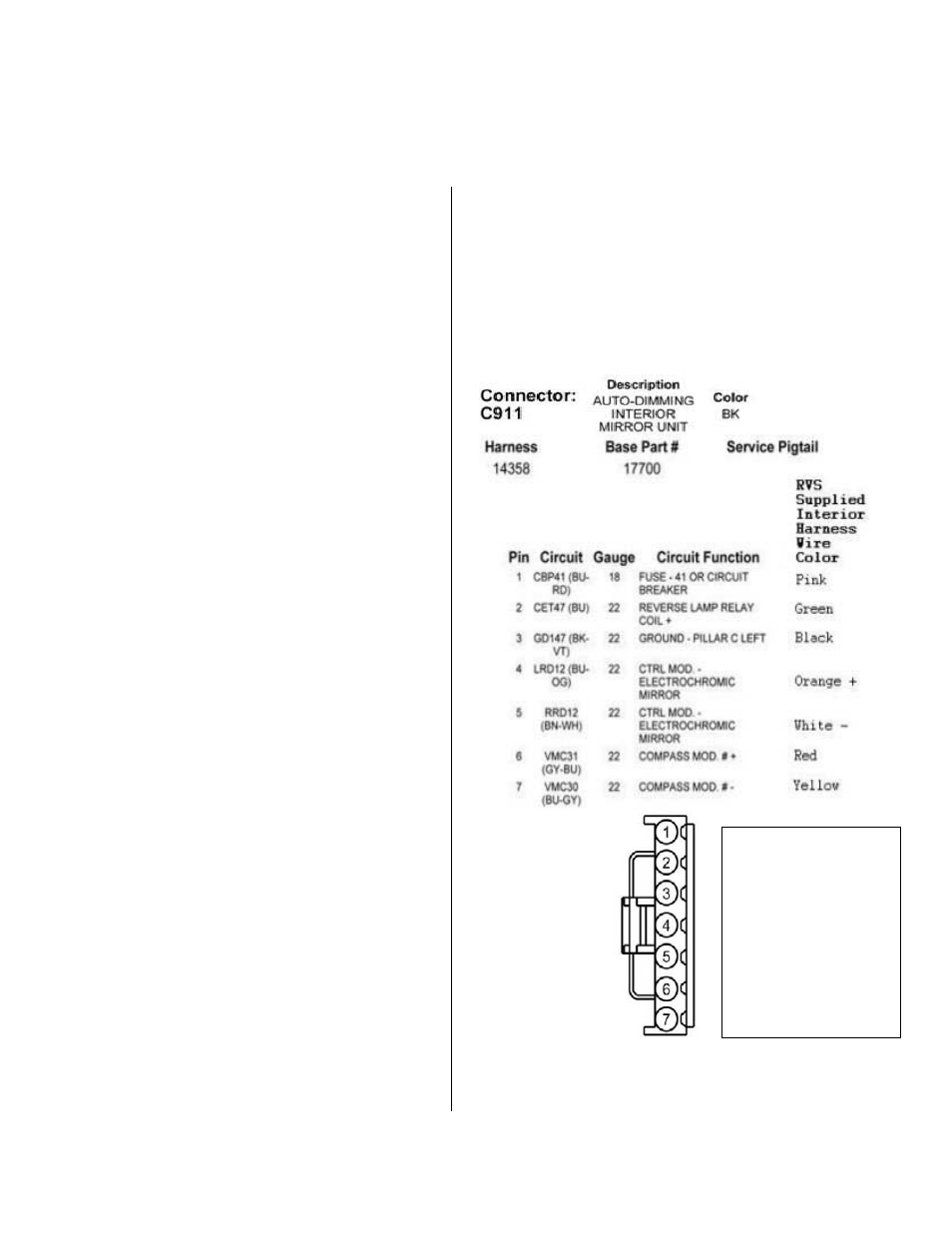

NOTE: If reverse signal does not exist in pin 2 of 7-
pin mirror C911 connector (see diagram below),
then follow directions in Section 8 to connect
reverse.
NOTE: Circuit colors
shown may vary
depending on model
and year. Verify pin
locations and check
circuit for proper
function using a
digital volt-ohm
meter.
