INSTALLATION INSTRUCTIONS

9527 Ford Flex Instructions 7-27-12.doc

6 of 18

Section 3: Chassis Harness Installation

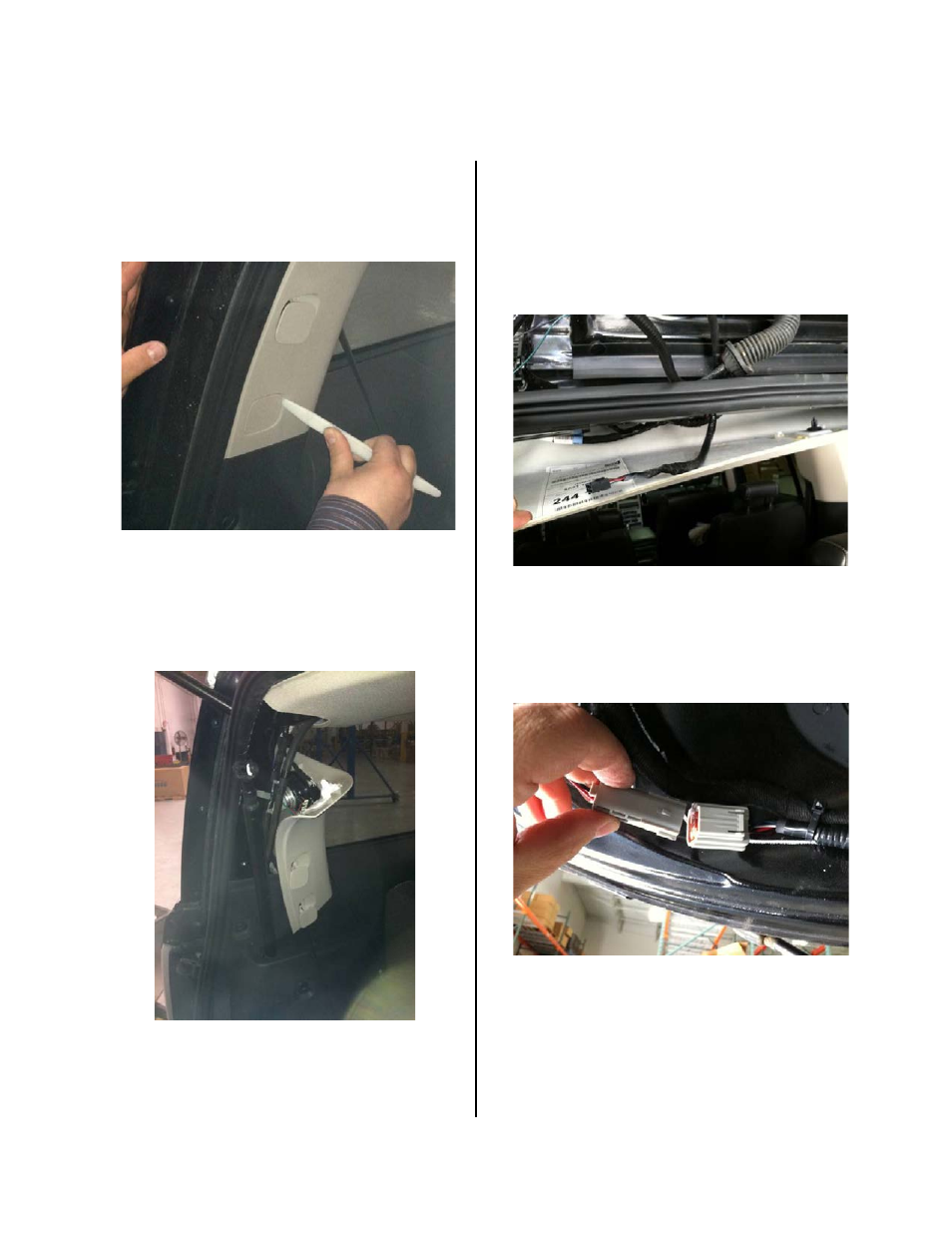

21. Using a plastic trim removal tool, loosen two
access covers in the D-pillar trim panel to
expose two 7mm bolts (Figure 10)

Figure 10

22. Remove the two bolts with a 7mm socket,
and loosen the driver side upper D-pillar trim
panel by peeling back weather stripping slightly
and releasing the retaining clips (Figure 11).

Figure 11

23. If necessary, use a razor knife to cut a small
slit in the liftgate wiring grommet to assist in the
routing of the chassis harness wiring trough the
grommet.

24. Run the small black connector end of the
chassis harness through the opening you cut in
the grommet and out through the other open
end of the grommet. A pair of pliers may be
required to pull the connector and harness
through the opening (Figure 12).

Figure 12

25. Route the light gray chassis harness camera
connector end of the chassis harness toward the
light gray connector on the camera harness and
connect (Figure 13).

Figure 13
