INSTALLATION INSTRUCTIONS
9527 Ford Flex Instructions 7-27-12.doc 10 of 18
Section 6A: Removing the Compass Circuit Board
(if required)
Follow the steps in Section 6A only if your compass displayed ‘- -‘ when the
mirror connector was removed in Section 4.

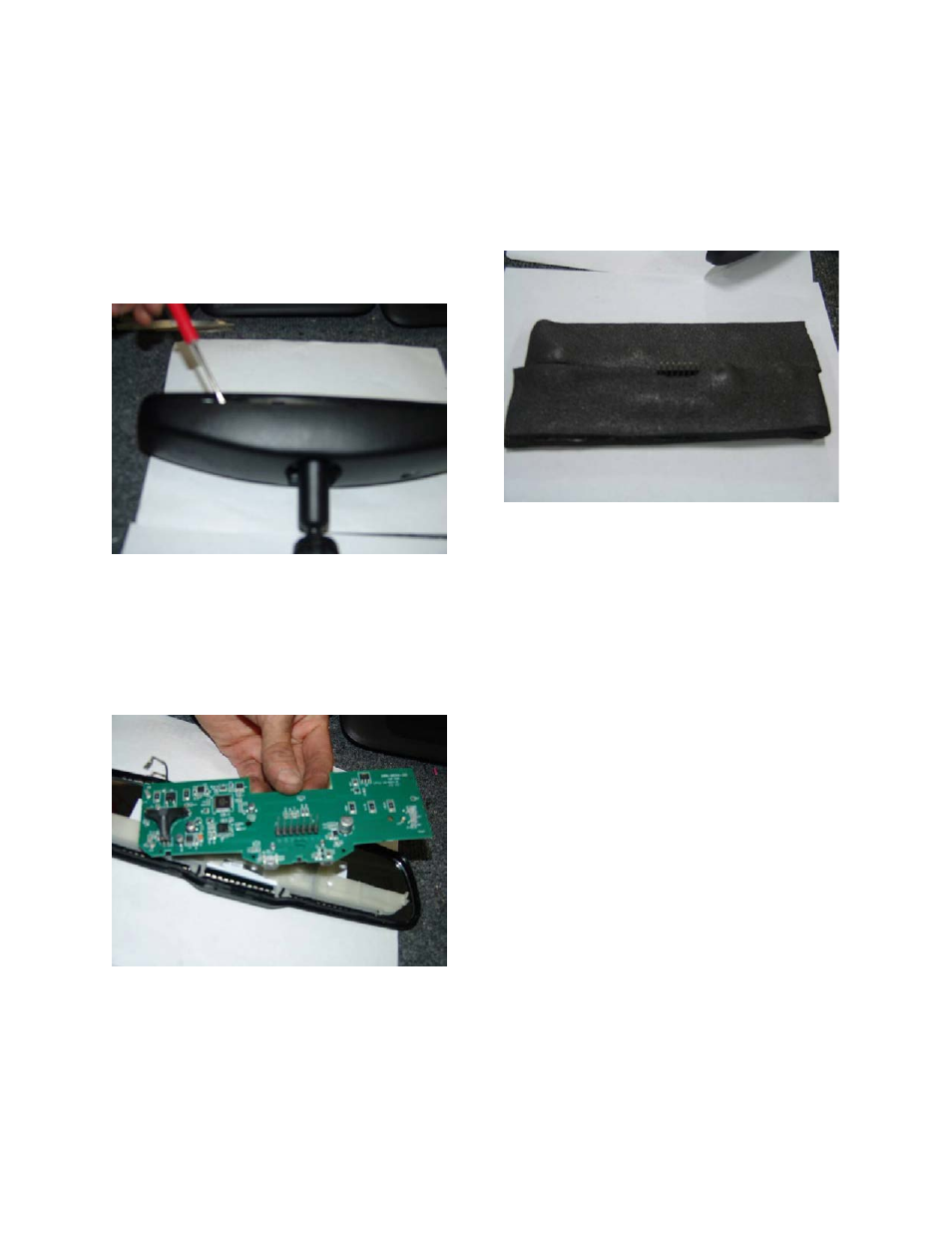

47. Pry mirror apart with a screwdriver (Figure
20).
Figure 20
48. Remove the circuit board from the mirror by
disengaging both connectors. Mark the top of
the circuit board with a permanent marker to
insure proper plug connection later (Figure 21).
Figure 21
49. Wrap the mirror circuit board in the supplied
foam pieces, and cut an opening for the
connector terminals (Figure 22).
Figure 22
50. Make sure ignition is off. Remove the
original vehicle mirror harness connector by
cutting the harness wires 2 inches from the
connector. Cut wires one at a time and strip the
insulation from each as these will be spliced to
the supplied interior harness.
