Section 6B: Compass Wiring for Vehicles with 7-pin Mirror Connector
51. On the supplied interior harness, near the black
16 pin connector, locate the seven loose wires.
Isolate and tape over the loose orange and white
wires on the interior harness as they will not be
used. Using Connector C911 pinout diagram
opposite, splice the remaining five wires to the
vehicle mirror harness wires where the mirror
connector was removed in Section 4 as follows:
• Splice the supplied interior harness black
ground wire to the loose vehicle mirror
ground wire that was in pin 3.
• Splice the supplied interior harness green
reverse wire to the loose vehicle mirror
reverse wire that was in pin 2.
• Splice the supplied interior harness pink
ignition wire to the loose vehicle mirror
ignition wire that was in pin 1.
• Splice the supplied interior harness red
compass (+) to the loose vehicle mirror
compass (+) wire that was in pin 6.
• Splice the supplied interior harness yellow
compass (-) to the loose vehicle mirror
compass (-) wire that was in pin 7.
52. If you removed the compass circuit board,
per section 6A, on the supplied interior harness,
near the black 6 pin connector, locate the five loose
wires. Using Connector C911 pinout diagram
opposite, splice these five wires to the vehicle
mirror harness connector removed in Section 4 as
follows:
• Splice the supplied interior harness black
ground wire to the vehicle mirror connector
ground wire. (pin 3)
• Splice the supplied interior harness green
reverse wire to the vehicle mirror connector
reverse wire. (pin 2)
• Splice the supplied interior harness pink
ignition wire to the vehicle mirror connector
ignition wire. (pin 1)
• Splice the supplied interior harness red
compass (+) wire to the vehicle mirror
connector compass (+) wire. (pin 6)
• Splice the supplied interior harness yellow
compass (-) wire to the vehicle mirror
connector wire. (pin 7)
• If you did not remove the compass circuit
board, isolate the five loose wires with
electrical tape, as they will not be used.

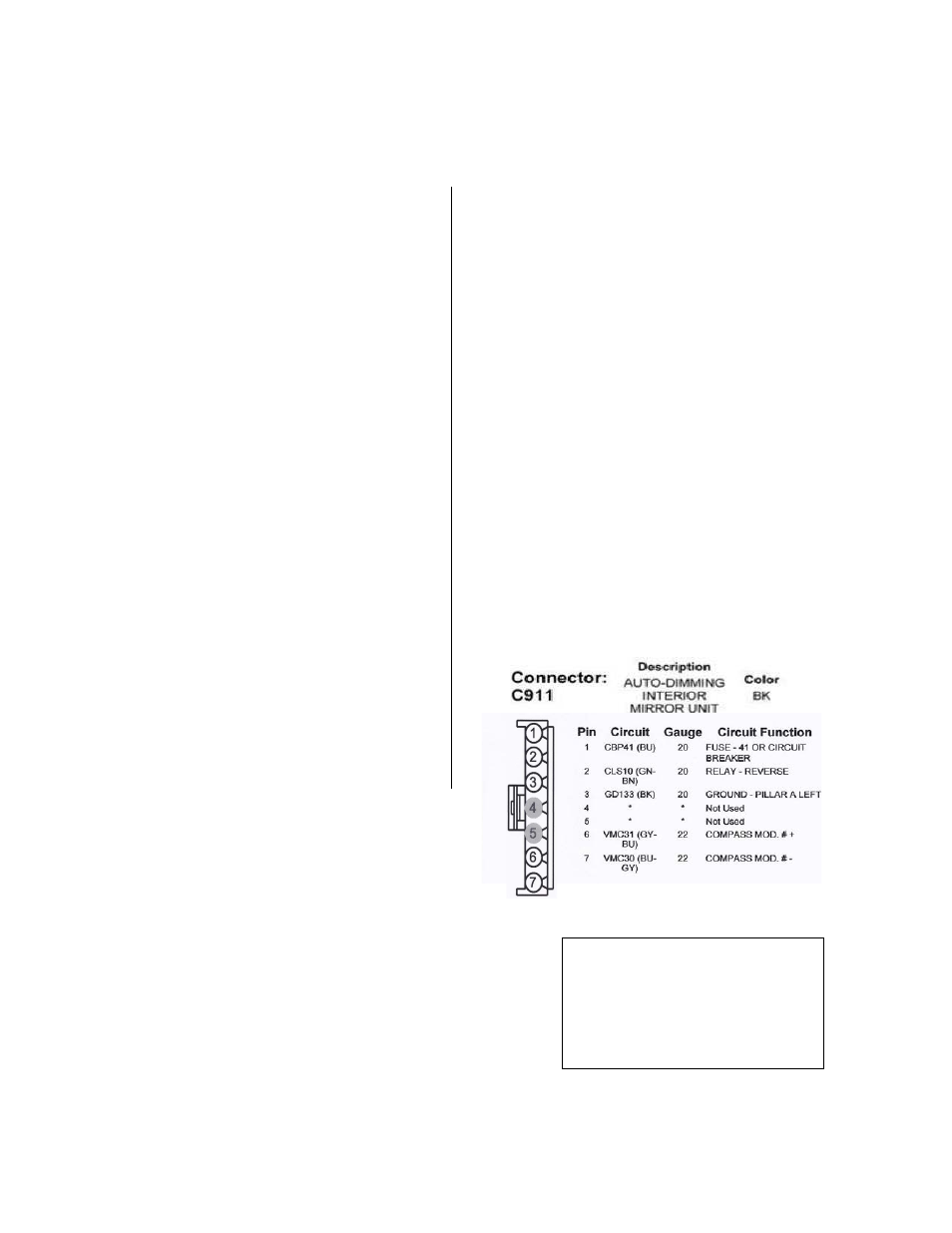

NOTE: If reverse signal does not exist in pin 2 of 7-
pin mirror C911 connector (see diagram below),
follow directions in Section 8 to connect reverse.
NOTE: Circuit colors shown may
vary depending on model and
year. Verify pin locations and
check circuit for proper function
using a digital volt-ohm meter.
Supplied
Interior
Harness Color
Pink
Green
Black
Red (+)
Yellow (-)
