Strip seal removal, Cover removal, Strip seal removal cover removal – Rockwell Automation MPAS Integrated Linear Stages User Manual
Page 63
Rockwell Automation Publication MP-UM001D-EN-P - September 2013
63
Removing and Replacing Components
Chapter 8
Align the cable carrier by using the alignment marks made when the worn cable
carrier was removed.
Strip Seal Removal
Follow these directions to remove a strip seal.

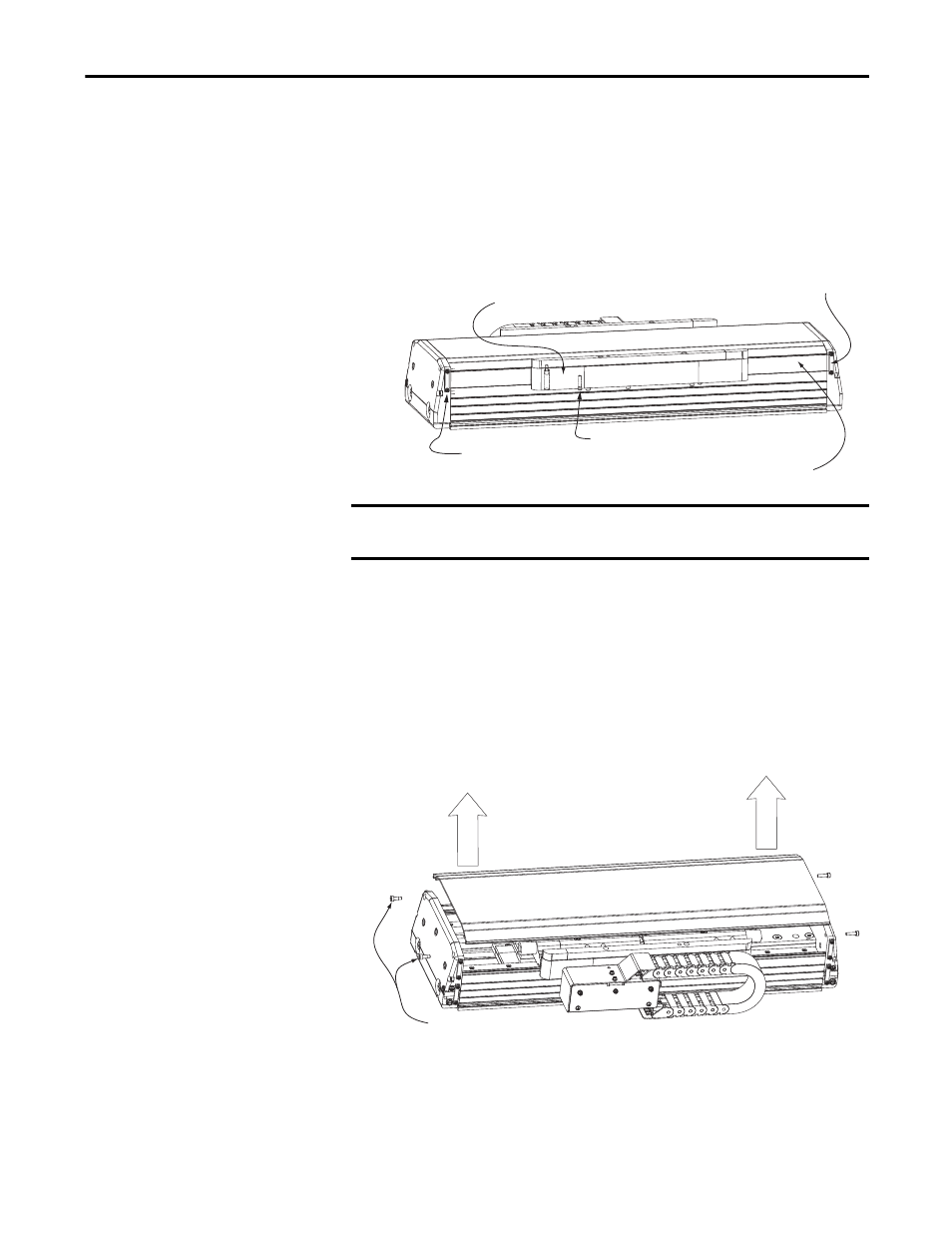

Figure 15 - Linear Stage Seal Components
1. Loosen the strip seal clamps at each end of the linear stage.
2. Carefully grasp the end of the strip seal and slide it out of the linear stage.
Cover Removal
Follow these directions to remove a side cover.
1. Remove strip seals following the strip seal removal procedure.
2. Remove the four M4 screws securing the linear stage cover to the end caps.
3. Remove the cover.
IMPORTANT
Handle strip seal material with care. The strip seal has sharp edges that can cut
if mishandled.
Stainless Steel
Strip Seal (2x)
Strip Seal Clamp (4x)
Seal Guide (4x)
M3 SHCS (2 per guide)
M3 SHCS (8x)
M4 SHCS (2 per side)
