Unpacking procedure – Rockwell Automation MPAS Integrated Linear Stages User Manual
Page 28
28
Rockwell Automation Publication MP-UM001D-EN-P - September 2013
Chapter 4
Mounting and Connecting
Unpacking Procedure
The following tools are recommended for unpacking the linear stage:
• Utility knife
• 2.5 mm, 5 mm, and 6 mm hex keys
• Packing tape
Unpack your linear stage by doing the following.

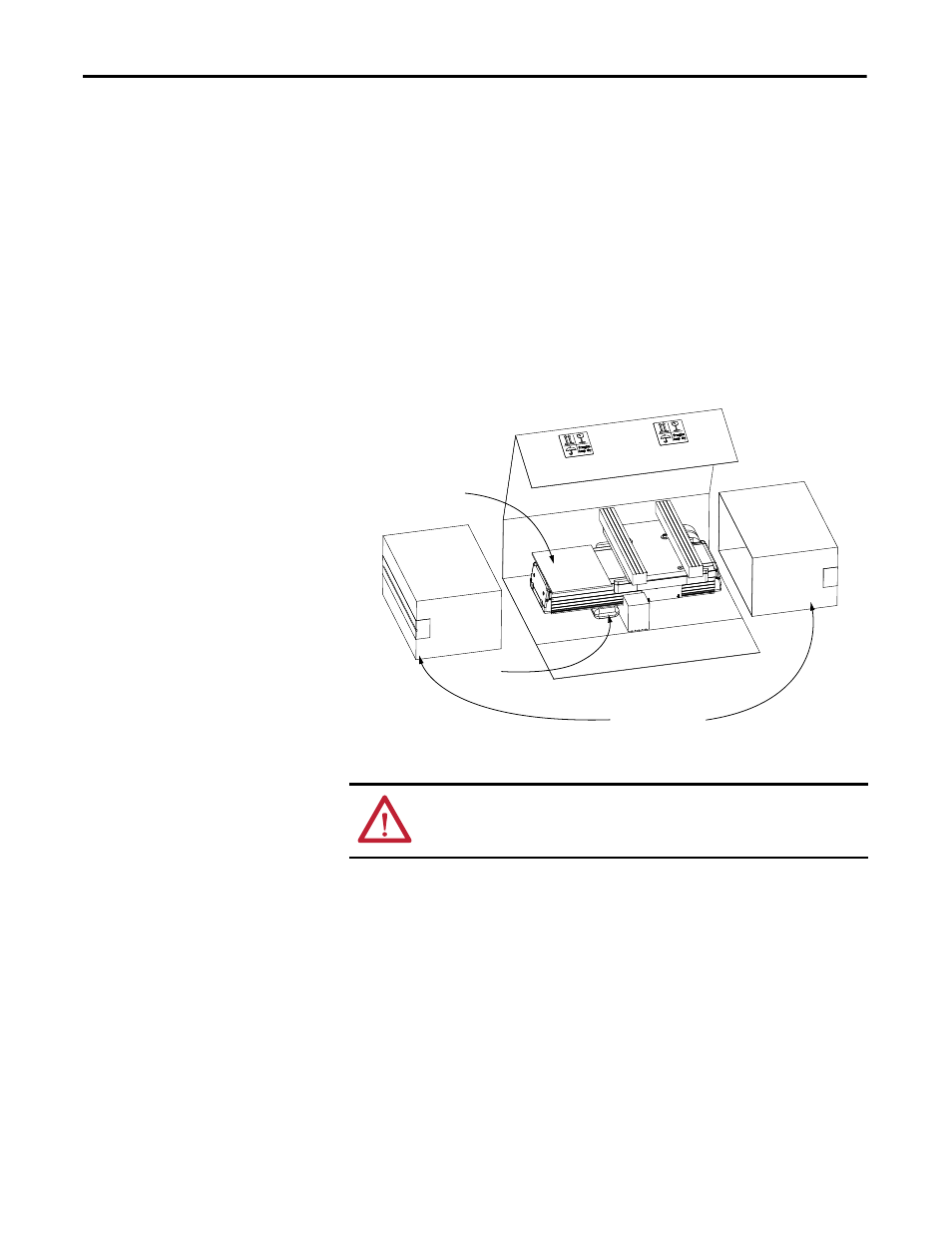

1. Place the carton on a flat stable surface with the tape seam side facing you.
2. Use a utility knife to score the packing tape at the edges of the carton.
3. Lift center cover to reveal the linear stage.
4. Remove the packing end caps.
5. Remove the linear stage from the packaging supports.
• For stages shorter than 1 meter (39.3 in.), use two people and lift the
linear stage by grasping only the base near the end caps.
ATTENTION: Never attempt a single-person lift.
Personal injury and equipment damage can occur if the linear stage is handled
improperly
User Manual
Packing End Caps
Desiccant
