Alarm – Rockwell Automation 6012DB PowerFlex Medium Voltage Variable Frequency Drive User Manual
Page 39
Rockwell Automation Publication 6000-UM001B-EN-P - October 2014
39
Setup and Operation
Chapter 3
Alarm
If the drive encounters and alarm or warnings,
will blink,
indicating an active alarm.
Press the
button in the Top Menu Bar to see the active alarms.

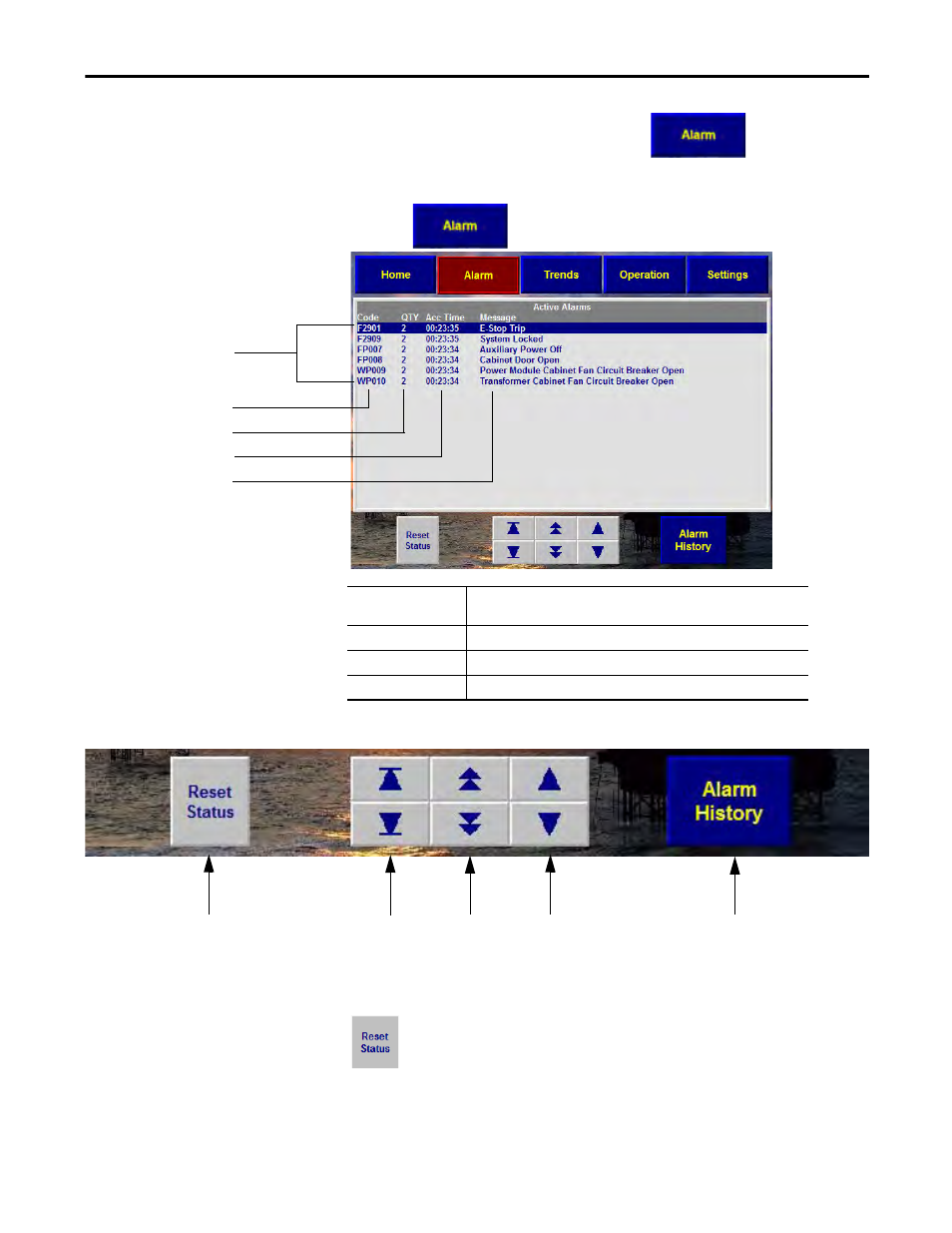

Active Alarms Controls
Reset Status
will reset just the quantity and accumulated time of the alarms. This
function does not reset the drive.
List of Active
Alarms
Alarm Code
Quantity
Accumulated Time
Alarm
Code
Alarm code. Codes beginning with W indicates a warning, codes beginning
with F indicates a fault.
QTY
How many times the alarm has occurred
Acc Time
Time which has elapsed since the alarm
Message
Description of the warning or fault
Reset Status
Scroll to Top or
Bottom of List
Scroll Alarm
by Entry
Page Up/
Page Down
Shows Alarm History
