Rockwell Automation Publication 6000-UM001B-EN-P - October 2014 33
Chapter
3
Setup and Operation

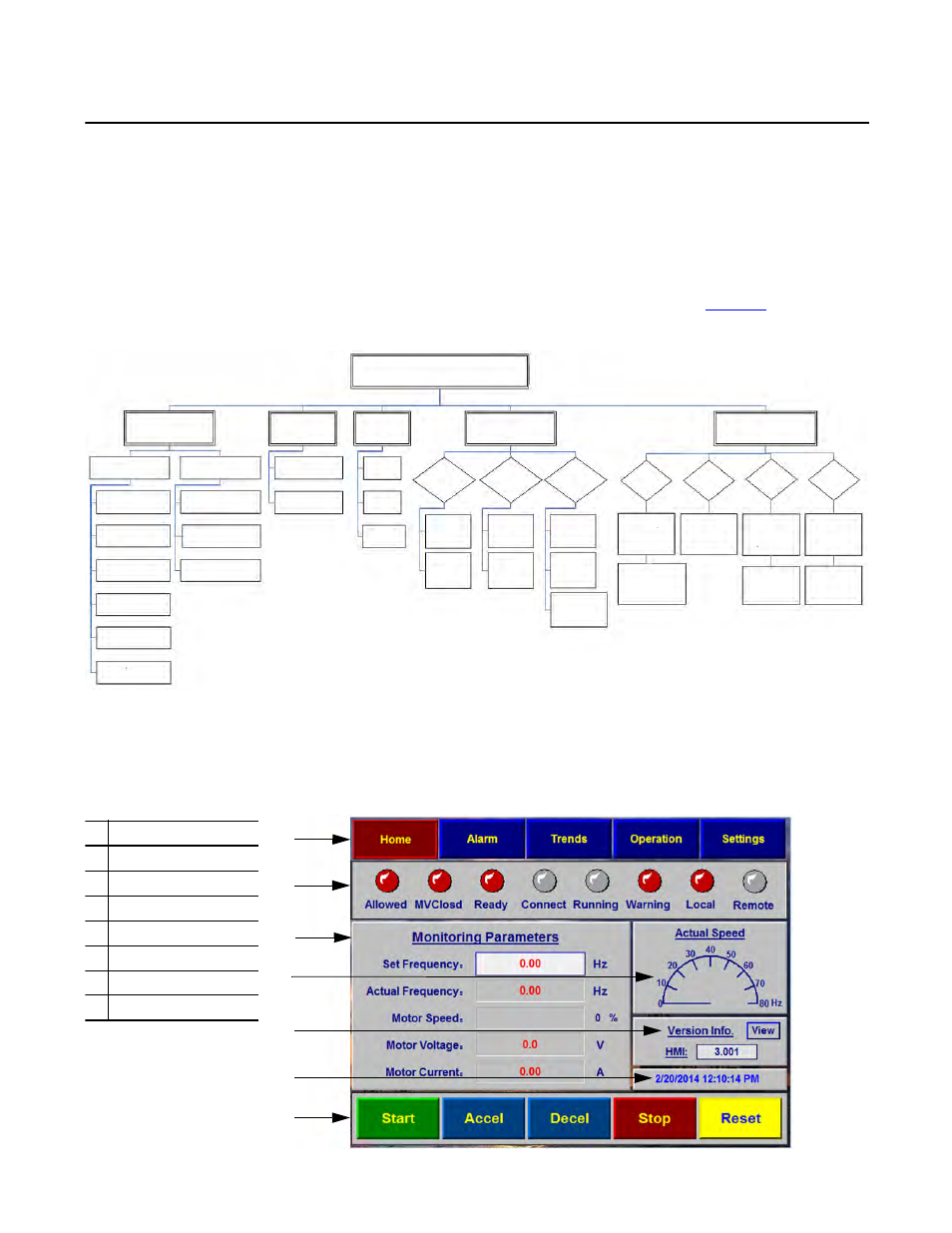

Overview The structure of the touchscreen operation is shown in Figure 23 .
Figure 23 - HMI Overview
Main Interface The Main Interface Screen contains configuration and operation controls,
monitoring parameters and actual speed.
Figure 24 - Main Interface Screen
User Setup R&D
Set Several
P Parameters
Set Several
P Parameters
Set All
P Parameters
Set All
T Parameters
View K
Parameters
Settings
Default
Select
Language
Select
Bypass Mode
Operation
No
Bypass
Manual
Bypass
Auto
Bypass
Local/
Remote
Switch
Status
Open/Close
Switch
Local/
Remote
Local/
Remote
Switch
Status
Switch
Status
Trends
V
I
Act. Freq.
Alarm
Alarm Status
Alarm History Set Frequency
Start/Stop/Reset
Accel/Decel
Main Operation Data Display
Set Frequency
Actual Frequency
Motor Voltage
Motor Current
Status Info.
Version Info.
Home
Main Interface
1
2
3
5
6
7
Screen Layout
1 Top Menu Bar
2 Status Bar
3 Set and Monitor Box
4 Actual Frequency Display Box
5 Version Information Box
6 Actual Date and Time
7 Operation Bar
