Rockwell Automation 6012DB PowerFlex Medium Voltage Variable Frequency Drive User Manual
Page 103
Rockwell Automation Publication 6000-UM001B-EN-P - October 2014
103
Preventative Maintenance and Component Replacement
Chapter 5
G3 Power Supply
1.
Loosen, but do not remove, the screws on the top of the G3 Power Supply.
2.
Remove the wires.

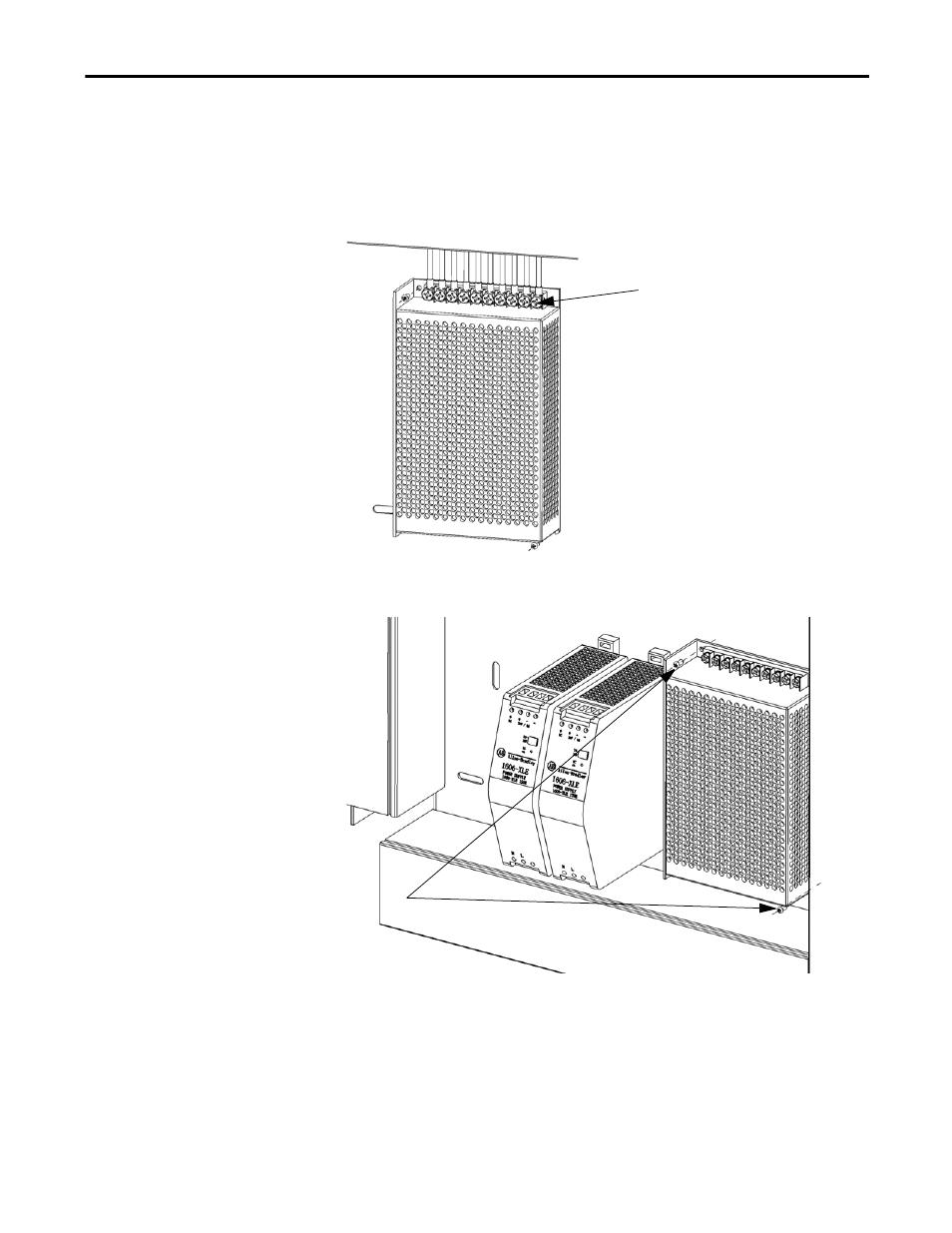

Figure 40 - Remove G3 Power Supply wires (G1 and G2 Power Supply not shown for clarity)
3.
Remove two M3 Tapping screws to remove the unit.
Figure 41 - Remove AC/DC Power Supply
4.
Install the new power supply in reverse order of removal.
Loosen screws and remove all wires
M3 Tapping Screw
