Rockwell Automation Publication 6186M-UM002B-EN-P - March 2012 47
Display Configuration Chapter 3

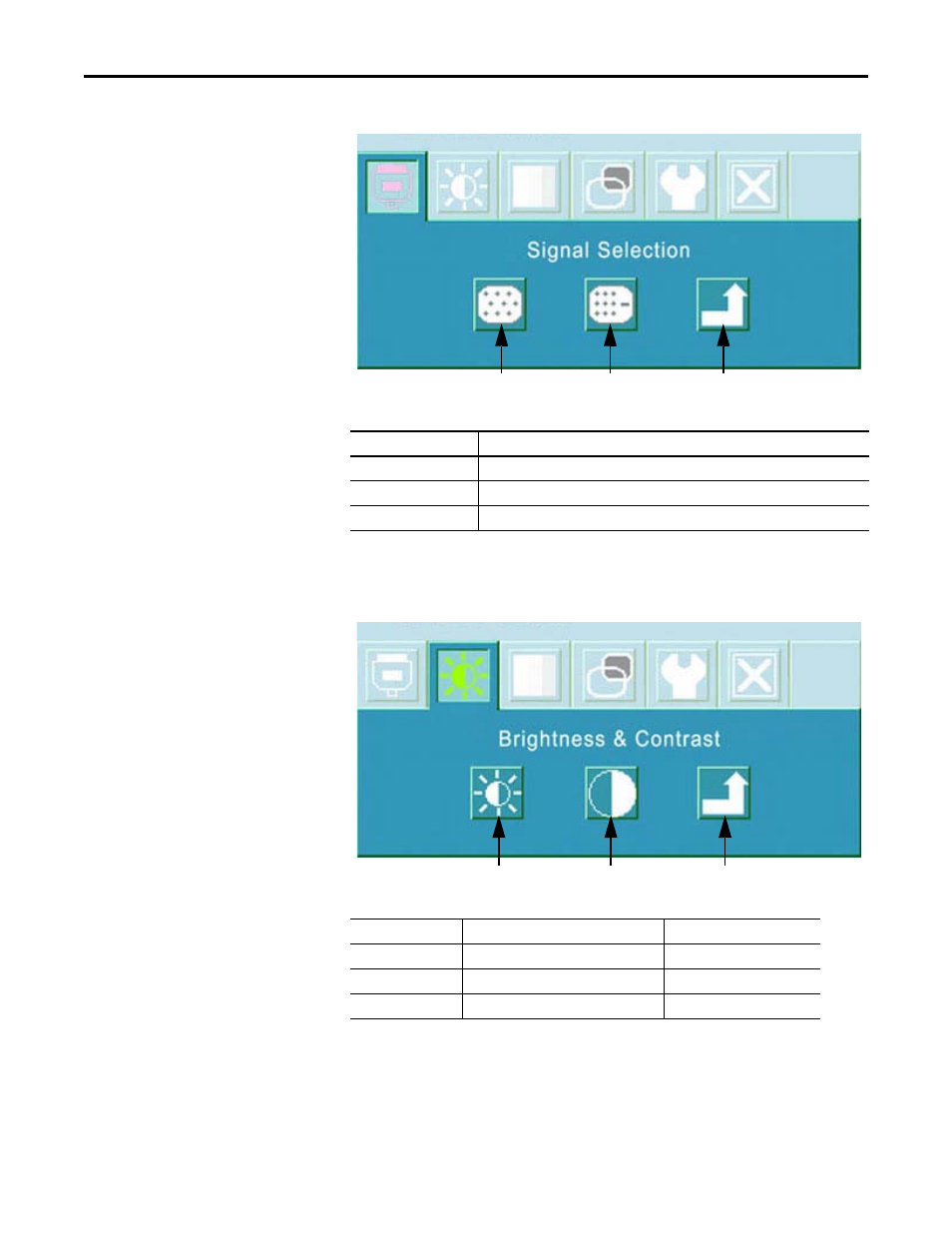

Signal Selection Menu
Table 15 - Signal Selection Menu Description
Brightness and Contrast Menu
Table 16 - Brightness and Contrast Menu Description
Icon Function
VGA (analog input) Displays the incoming VGA analog signal from the 15-pin VGA input connector.
(1)
(1) The industrial monitor will autodetect either an analog VGA or digital DVI input if present.
DVI (digital input) Displays the incoming DVI digital signal from the DVI input connector. (1)
Back Returns to the OSD main menu.
Icon Function Value Range
Brightness Adjusts the brightness of the screen. 0…100 (1)
(1) Adjusting the monitor brightness higher than the factory default setting will reduce the life of the LCD display. The
factory default setting may vary by size and LCD model used.
Contrast Adjusts the contrast of the screen. 0…100 with the default 50.
Back Returns to the OSD main menu.
TIP The more common way to adjust brightness is to use the Brightness Adjust
button on the back of the monitor.
Back VGA DVI
Contrast Back Brightness
