Rockwell Automation Publication 6186M-UM002B-EN-P - March 2012 37
Installing the Monitor Chapter 2
Power Source Connection The monitor connects to either a 100…240V AC or a 9V…36V DC power
source, but cannot be connected to AC and DC voltage simultaneously.
Connect AC Power
With the AC power adapter, the monitor can use a single-phase AC power
supply providing 100…240V AC at 47…63 Hz. Only use the AC adapter
supplied with the monitor.
Power must be available with a ground connection nearby. Whenever possible,
connect the monitor to the same AC source that supplies the computer.
To connect power to the monitor, follow these directions.
1. Turn off the main power switch or breaker.

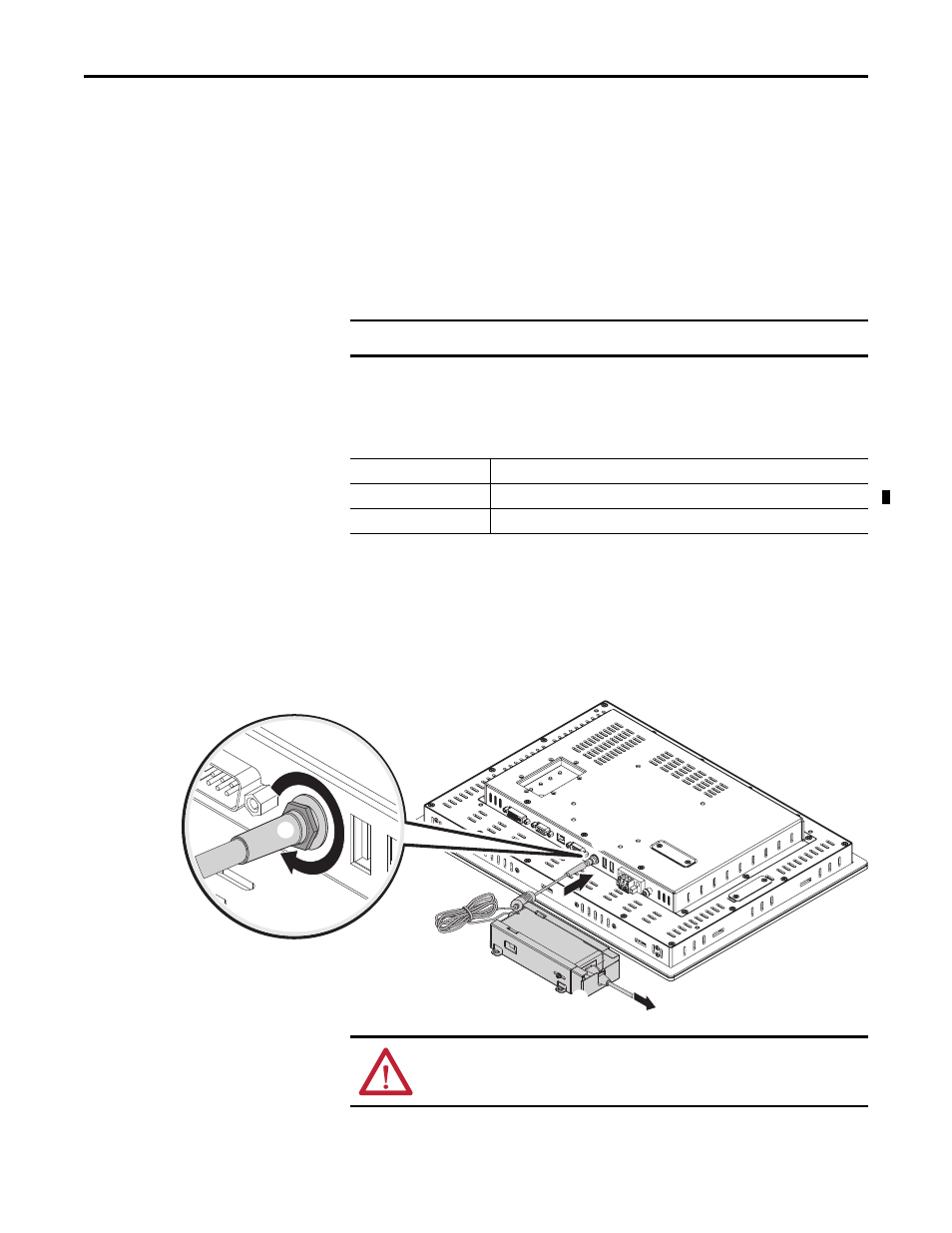

2. Connect the AC adapter’s 12V AC input cable to the 12V DC power-
input connector on the monitor (
1) and secure this connection by
screwing the barrel over the threads (
2).
IMPORTANT Do not use the AC adapter and external DC at the same time.
Table 13 - AC Power Adapter Accessories
Cat. No. Description
6189V-MPS3 Replacement AC power adapter
6189V-MPSDIN DIN rail mounting accessory for AC power adapter




WARNING: In a hazardous location installation, secure the AC power
cord by using the included metal cage.
