Monitor connections, Figure 4 - aluminum bezel, Video source connection – Rockwell Automation 6186M-xxxx Industrial Performance Monitors User Manual User Manual
Page 33
Rockwell Automation Publication 6186M-UM002B-EN-P - March 2012
33
Installing the Monitor
Chapter 2
Monitor Connections
Use the connectors on the rear bottom side of the monitor to connect to a video
host and a power source.

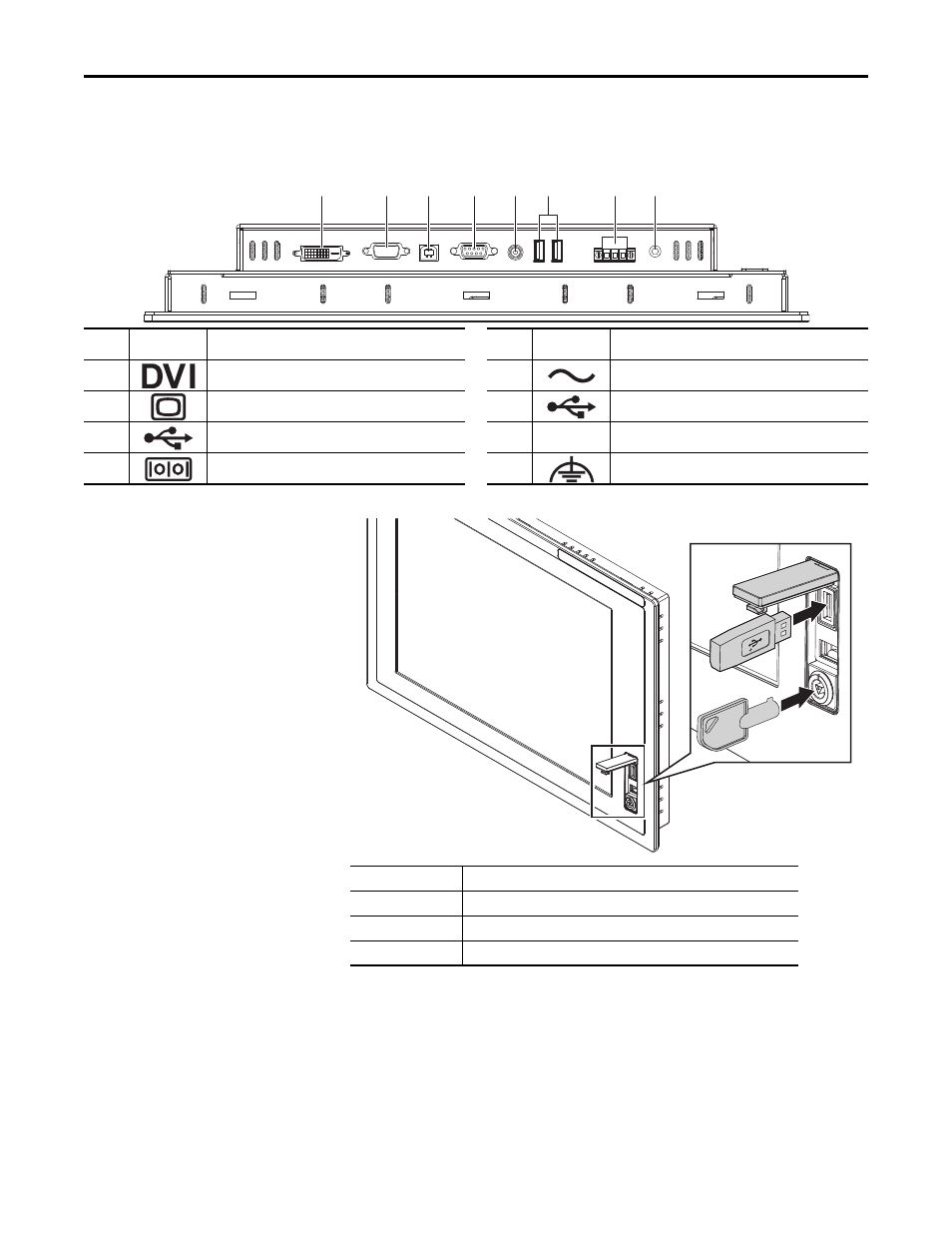

Figure 4 - Aluminum Bezel
Item
Icon
Description
Item
Icon
Description
1
DVI port for digital video source
5
Power input, AC adapter
2
HD-15 VGA port for analog video source
6
USB device ports, Type A (2)
3
USB port, Type B for connection to host computer
7
Power input, DC terminal block
4
Serial port (RS-232) for touch screen interface
8
Functional ground screw
Item
Description
1
Front access panel
2
USB device port, Type A (aluminum bezel only)
3
USB key
