Rockwell Automation Publication 6186M-UM002B-EN-P - March 2012 31
Installing the Monitor Chapter 2

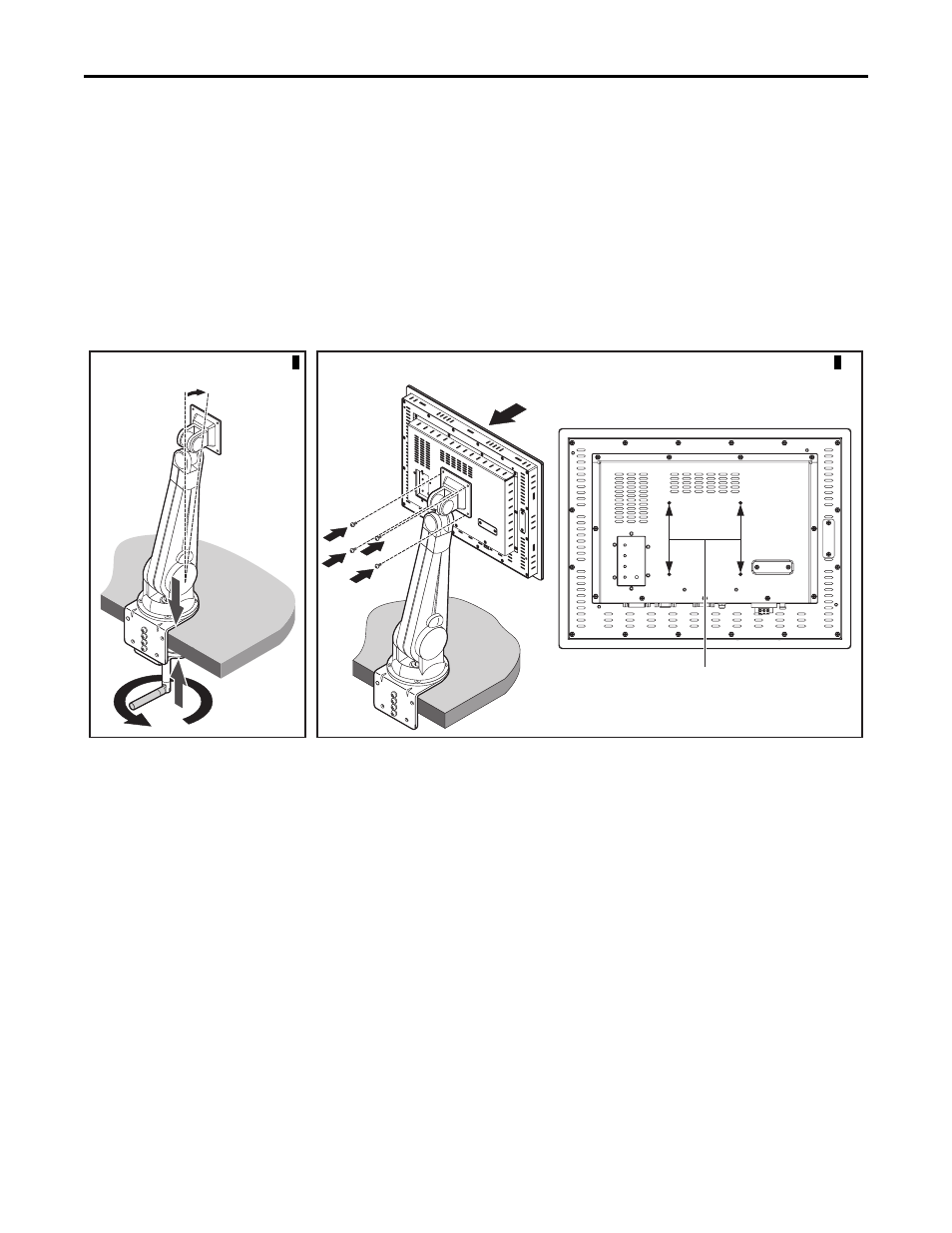

Mount the Monitor on a Bench or Tabletop
Follow these directions to mount the monitor to a bench or tabletop.
1. Mount the arm to the bench or tabletop by using screws, bolts, or clamps
so the monitor cannot tip.
2. Place the monitor over the arm and insert four M4 x 0.7 screws through
the arm brackets and into the monitor.
The illustration shows the mounting holes for VESA FPMPMI standard
100 mm (3.94 in.) interface pad.
3. Tighten the screws.
Mount the DIN Rail of the
AC Power Adapter You can mount the AC power adapter on a DIN rail by using the DIN rail
mounting accessory, catalog number 6189V-MPSDIN.
Follow these steps to mount the AC power adapter to a DIN rail.
1. Attach the DIN rail bracket to the bottom of the AC power adapter (1).
2. Secure the DIN rail bracket by using four of the provided M4 x 6 mm
screws
(2).
3. Torque the screws to 0.882 N·m (7.811 lb·in).
4. Attach the DIN rail to the wall or installation surface (3) by using two
M4 x 6 mm screws
(4); if using an existing DIN rail skip to the next step.
5. Torque the screws to 0.882 N·m (7.811 lb·in).
Monitor Mounting Holes (4)
Installing Arm Installing Monitor to Arm
