Display Configuration Chapter 3
Adjust the Monitor by Using
Control Keypad To adjust your monitor, use the buttons on the rear panel of the monitor.
Lock Access to the OSD
OSD Lockout prevents unauthorized or unintentional adjustments to OSD
functions.
To perform an OSD Lock or Unlock on the monitors while the OSD is off, press
and hold the up and down arrow buttons simultaneously for at least three
seconds.

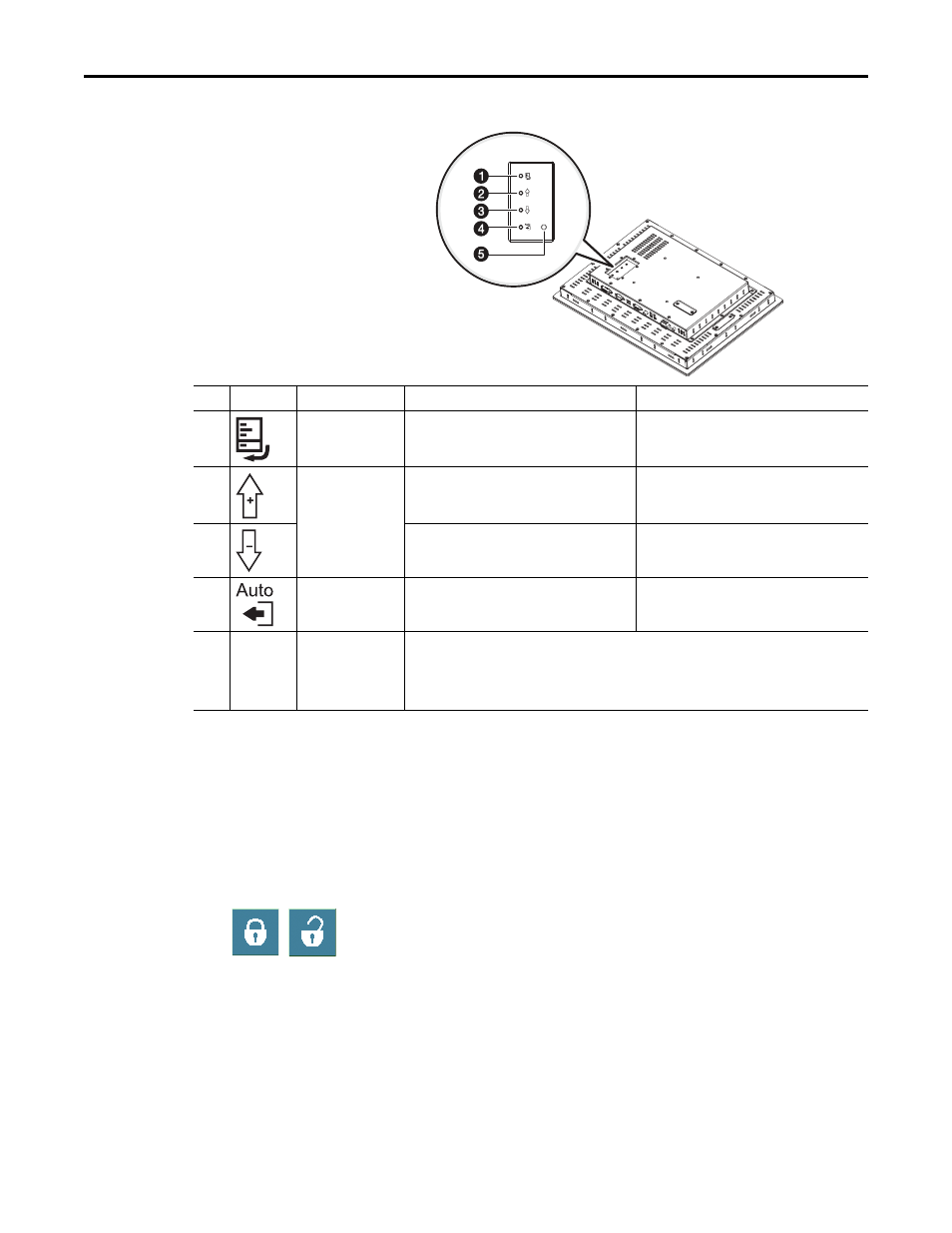

No. Icon Control Function in Normal Mode Function in OSD Mode
1 Menu/Return Displays the on screen display (OSD). Selects the highlighted OSD function.
2 Brightness controls (1) Increases the display brightness. • Moves the OSD selection to the right.
• Increases the value of the selected OSD setting.
3 Decreases the display brightness. • Moves the OSD selection to the left.
• Decreases the value of the selected OSD setting.
4 Auto Adjust Initiates automatic adjustment of the image
display. Closes the OSD screen.
5 Power/display status
indicator • Green - The monitor is on and the video signal is in sync with the video scaling engine.
• Orange - The monitor is on but the video signal is not in sync with the video scaling engine; the monitor
is in Standby mode.
• Off - The monitor is turned off.
(1) Press and hold the brightness control buttons simultaneously for three seconds to enable OSD lockout mode. This prevents access to the OSD. To disable this mode, press and
hold the buttons again.
