Rockwell Automation Publication 6186M-UM002B-EN-P - March 2012 27
Installing the Monitor Chapter 2
7. Tighten the mounting clips to a torque of 1.35 N·m (12 lb·in) by following
the torque sequence in Figure 3 , making sure not to overtighten.
8. Repeat the torque sequence at least three times until all mounting clips are
torqued to 1.35 N·m (12 lb·in) and the sealing gasket is compressed
uniformly against the panel.

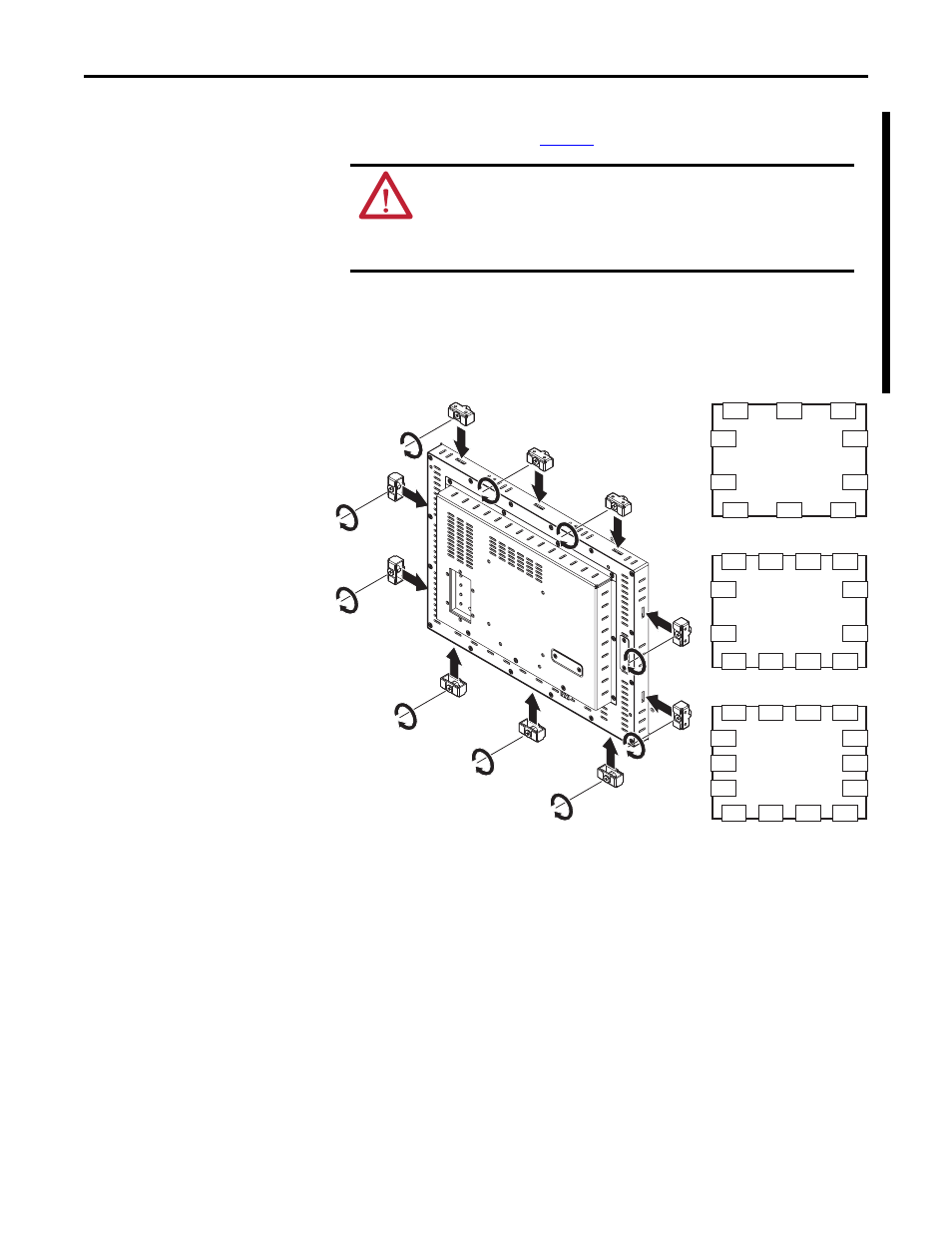

Figure 3 - Tightening and Torque Sequence
ATTENTION: Tighten the mounting clips to the specified torque to
provide a proper seal and prevent damage to the product. Rockwell
Automation assumes no responsibility for water or chemical damage
to the product or other equipment within the enclosure because of
improper installation.
1200M, 1500M, and 1700M Monitors
1900M Monitors
1700M Stainless Steel Bezel Monitor
7 1 5
6 2 8
9
4
3
10
10 1 5
3
8
7
4
12
11 6 2 9
10 1 5
13
8
12
11 6 2 9
3
7
14
4
