Rockwell Automation Publication 6186M-UM002B-EN-P - March 2012
39
Installing the Monitor
Chapter 2
3. Tighten the screw terminals to provide a good connection.
4. Secure the terminal block connector to the unit by using the two side
screws.
5. Restore DC power.
Secure the Cables
Secure all cables to each other or a fixed object after leaving the monitor by using
the supplied cable ties. Securing the cables provides strain relief and avoids loose,
hanging cables. It is particularly important in shock and vibration environments
to reduce movement of the cables.
Functional Ground Screw
The pre-installed functional ground screw is not required for safety or regulatory
compliance. However, if a supplemental ground is desired, use the functional
ground screw in the I/O port panel of the monitor (
1).

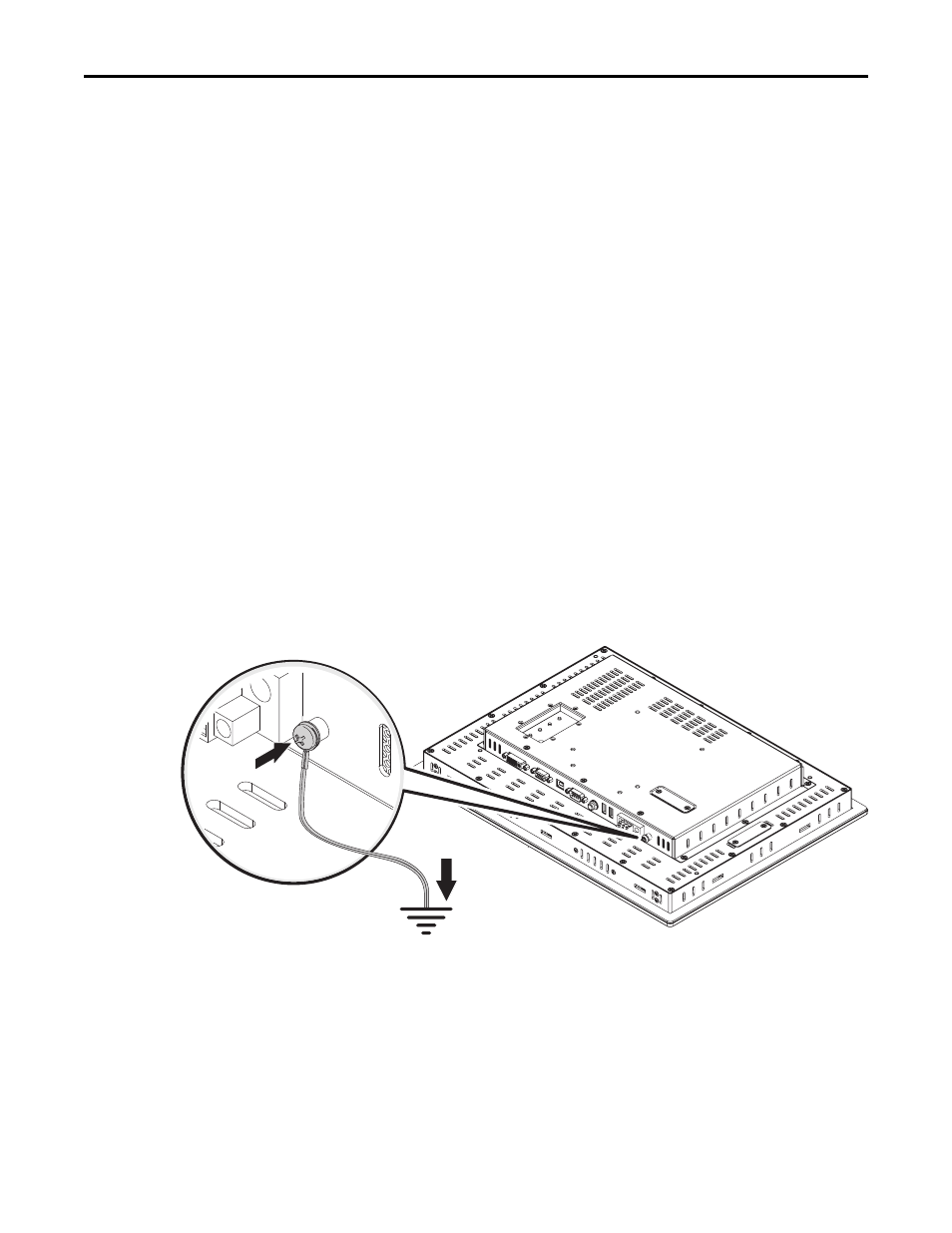

If you use the functional ground screw, connect the product to earth ground (
2)
by using a 1.5 mm
2
(16 AWG) or larger external wire. Use a ground wire with
green insulation and a yellow stripe for easy identification.
