Install the drive – Rockwell Automation 6181P-xxxx Integrated Display Computers, Series A to D User Manual
Page 46

46
Publication 6181P-UM001G-EN-P - July 2008
Chapter 4 Replace System Components
7. Remove the two screws and spacers that fasten the adapter to
the drive and remove the adapter from the drive.
Install the Drive
Follow these steps to install the drive.
1. Fasten the drive to the drive brackets with four screws.
2. Fasten the drive to the drive adapter with two screws and
spacers.
3. Gently slide the assembly back into the chassis.
4. Fasten the drive assembly to the chassis with three screws.
5. Connect the power supply, audio cable, and ribbon cables to
the drive.
6. Apply glue to ribbon cable and audio cable to avoid separation.
7. Reinstall the back cover.

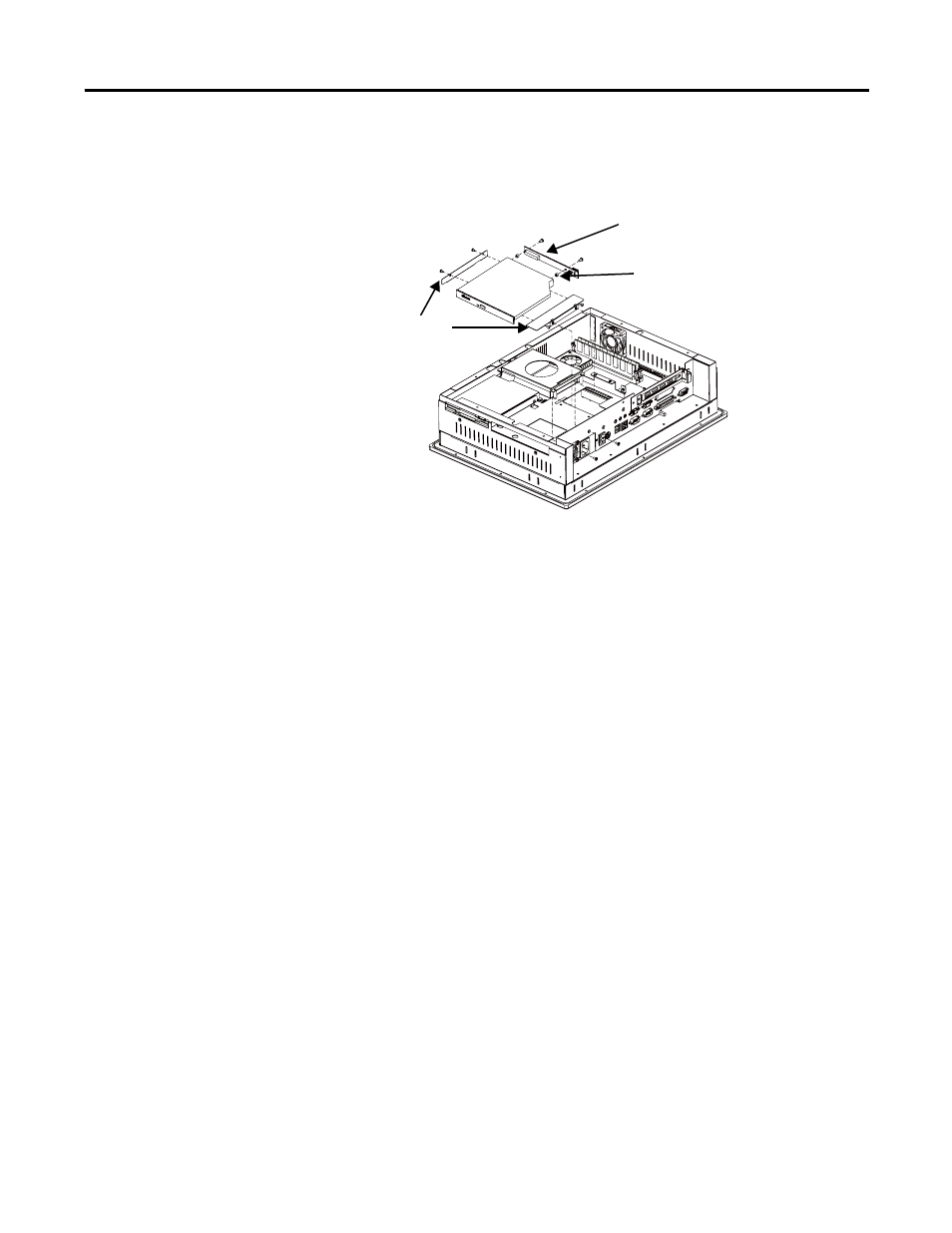

Drive Adapter
Spacer
Drive Brackets
Drive
1500P and 1700P
