Chapter 2 Installation
Mount the Computer in a Panel
Mounting clips secure the computer to the panel.
Follow these steps to mount the computer in a panel.
1. Remove power from the panel.
2. Cut an opening in the panel using the appropriate panel cutout
dimensions.
3. Make sure the sealing gasket is properly positioned on the
computer.
This gasket forms a compression type seal. Do not use sealing
compounds.
4. Place the computer in the panel cutout.

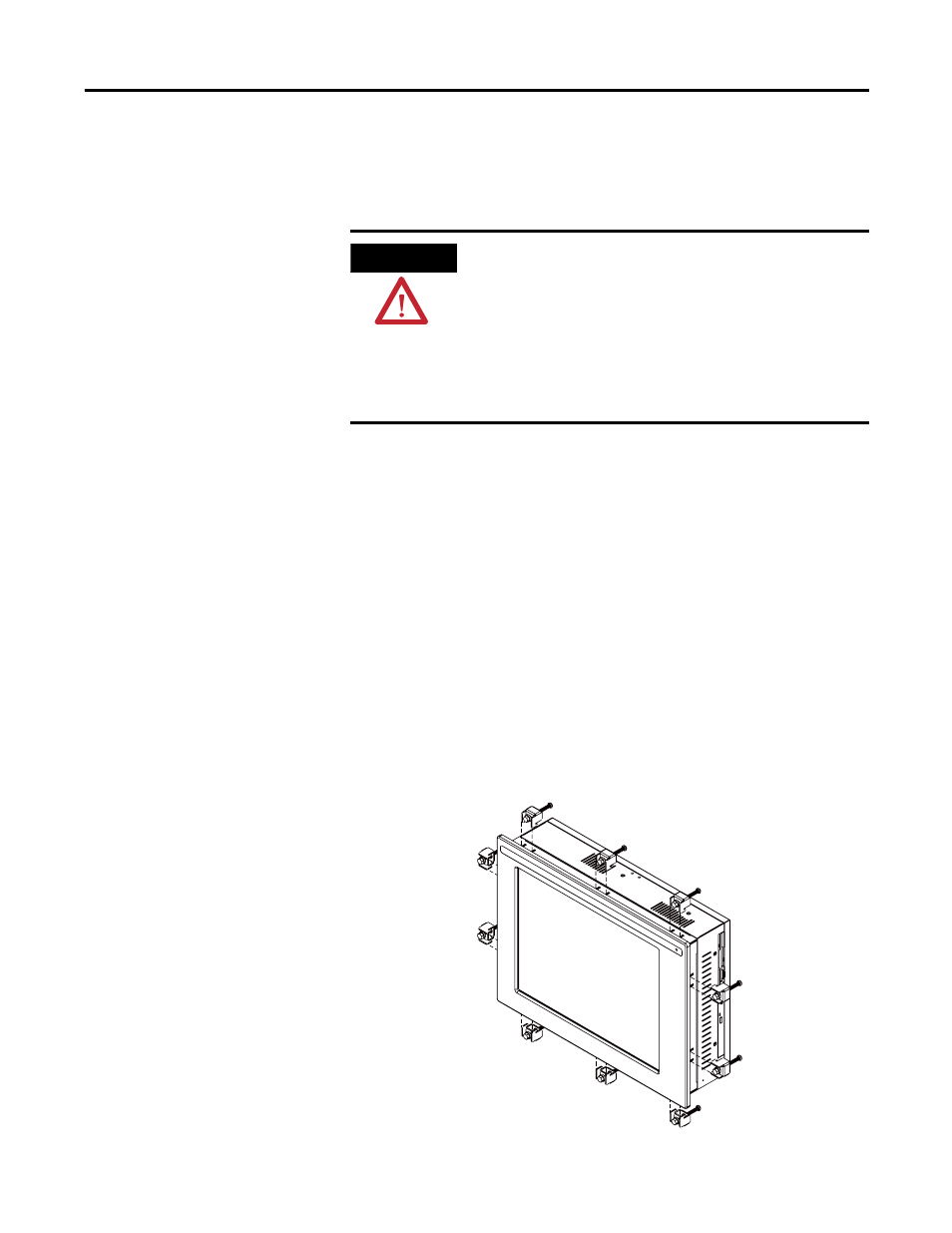

5. Slide the mounting clips into the slots on the top, bottom, and
sides of the computer.
ATTENTION
Remove all electrical power from the panel before making
cutout.
Make sure the area around the panel cutout is clear.
Take precautions so metal cuttings do not enter components
already installed in panel.
Failure to follow these warnings may result in personal injury or
damage to the panel components.
