Publication 6181P-UM001G-EN-P - July 2008

41

Replace System Components Chapter 4

4. Remove the screw(s) that fasten the floppy drive bracket to the

chassis.

5. Slide the floppy drive and bracket and lift the floppy drive out

door-first.

6. Disconnect the flat cable at the floppy drive.

7. Remove the four screws securing the floppy drive to the bracket.

8. Remove the floppy drive.

Install the Floppy Disk Drive

Follow these steps to install the floppy disk drive.

1. Fasten the floppy disk drive to the floppy disk drive bracket

with four screws.

2. Connect the flat cable to the floppy disk drive.

3. Insert the floppy disk drive and bracket into the chassis

adapter-end first and slide it into position within the chassis.

4. Fasten the floppy disk drive and bracket to the chassis with the

bracket screw.

5. Apply glue to prevent separation.

6. Reinstall the hard disk drive.

7. Reinstall the back cover.

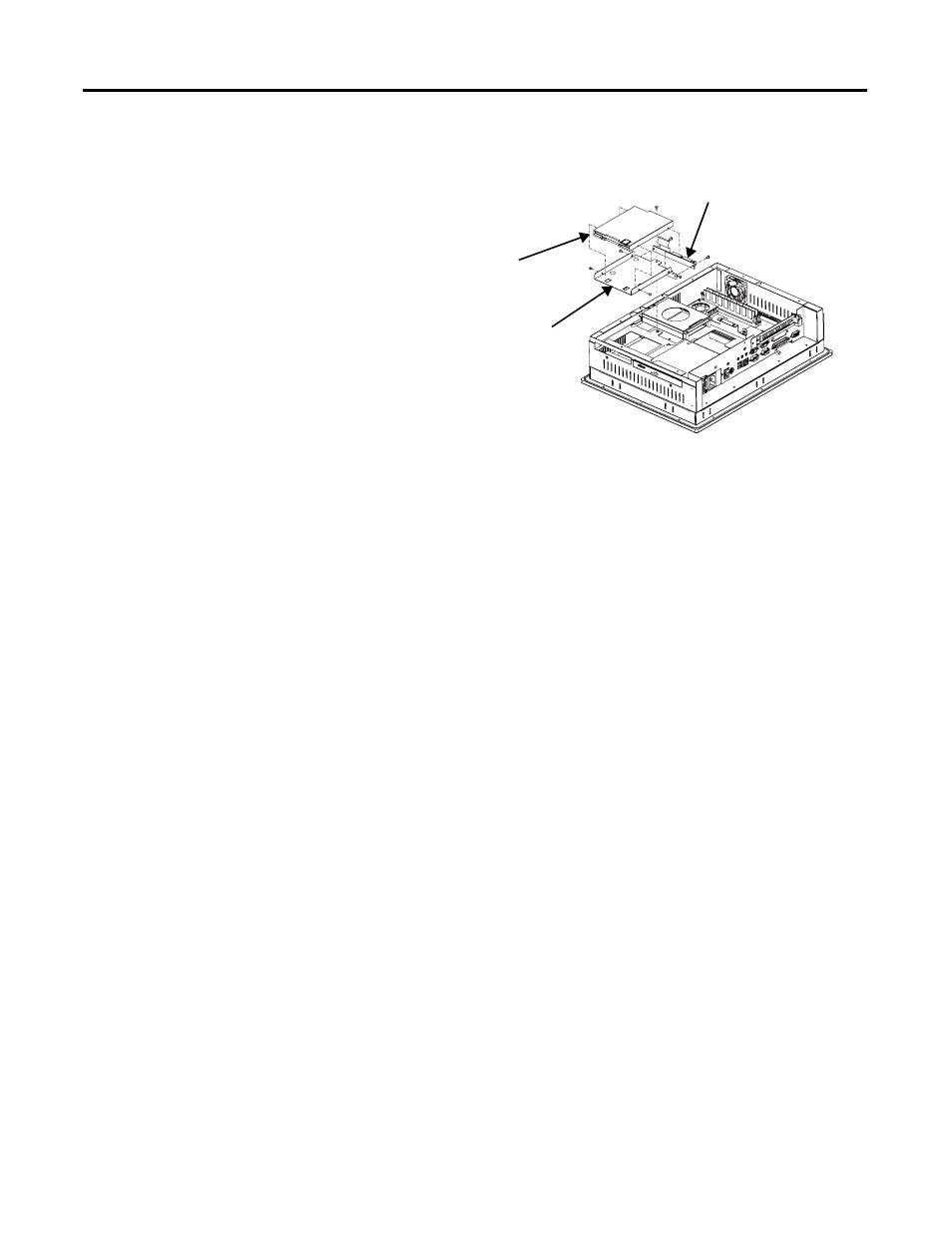

Floppy Drive
bracket

Floppy Drive

Floppy Adapter

1500P and 1700P
