Install the drive – Rockwell Automation 6181P-xxxx Integrated Display Computers, Series A to D User Manual
Page 44

44
Publication 6181P-UM001G-EN-P - July 2008
Chapter 4 Replace System Components
8. Remove the screws securing the drive to the bay and carefully
pull out the drive.
Install the Drive
Follow these steps to install the drive.
1. Fasten the drive to the bay.
2. Connect the drive adapter board to the drive.
Use care with the delicate ribbon cable on the floppy disk drive.
3. Connect the data, power, and audio cables to the drive bay
assembly.
4. Carefully replace the drive bay assembly.
5. Fasten the drive bay bracket to the inner shelf with four screws.
6. Connect the cables between the display and back chassis as
necessary.
7. Carefully reattach the display head to the back chassis using the
12 perimeter screws.

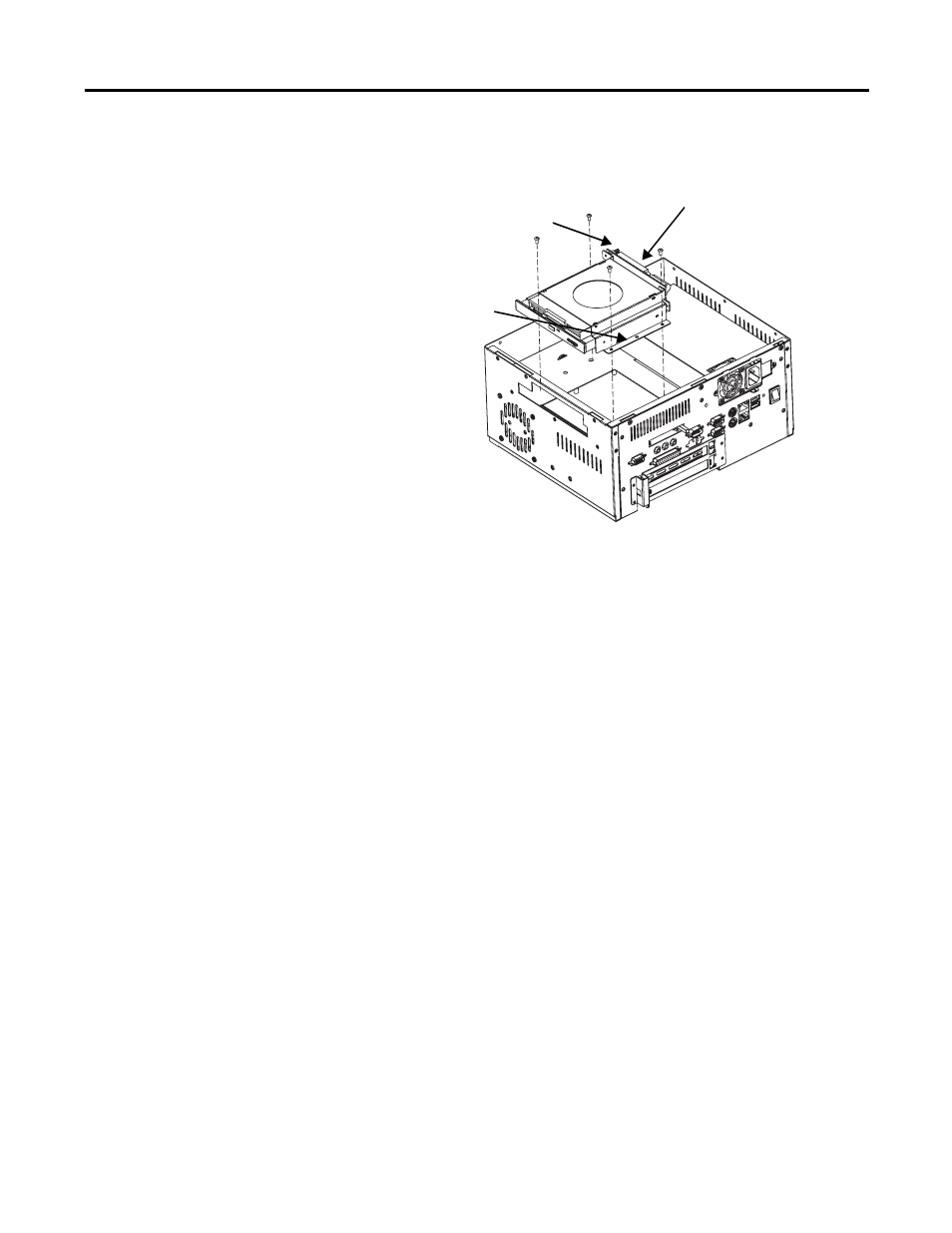

Drive Adapter
Spacer
Drive Brackets
Drive
1200P
