Required tools, Remove the back cover, Required tools remove the back cover – Rockwell Automation 6181P-xxxx Integrated Display Computers, Series A to D User Manual
Page 32
32
Publication 6181P-UM001G-EN-P - July 2008
Chapter 4 Replace System Components
Required Tools
Use a #2 Phillips screwdriver for all screws. Using the wrong size tool
may cause damage to the screw head.

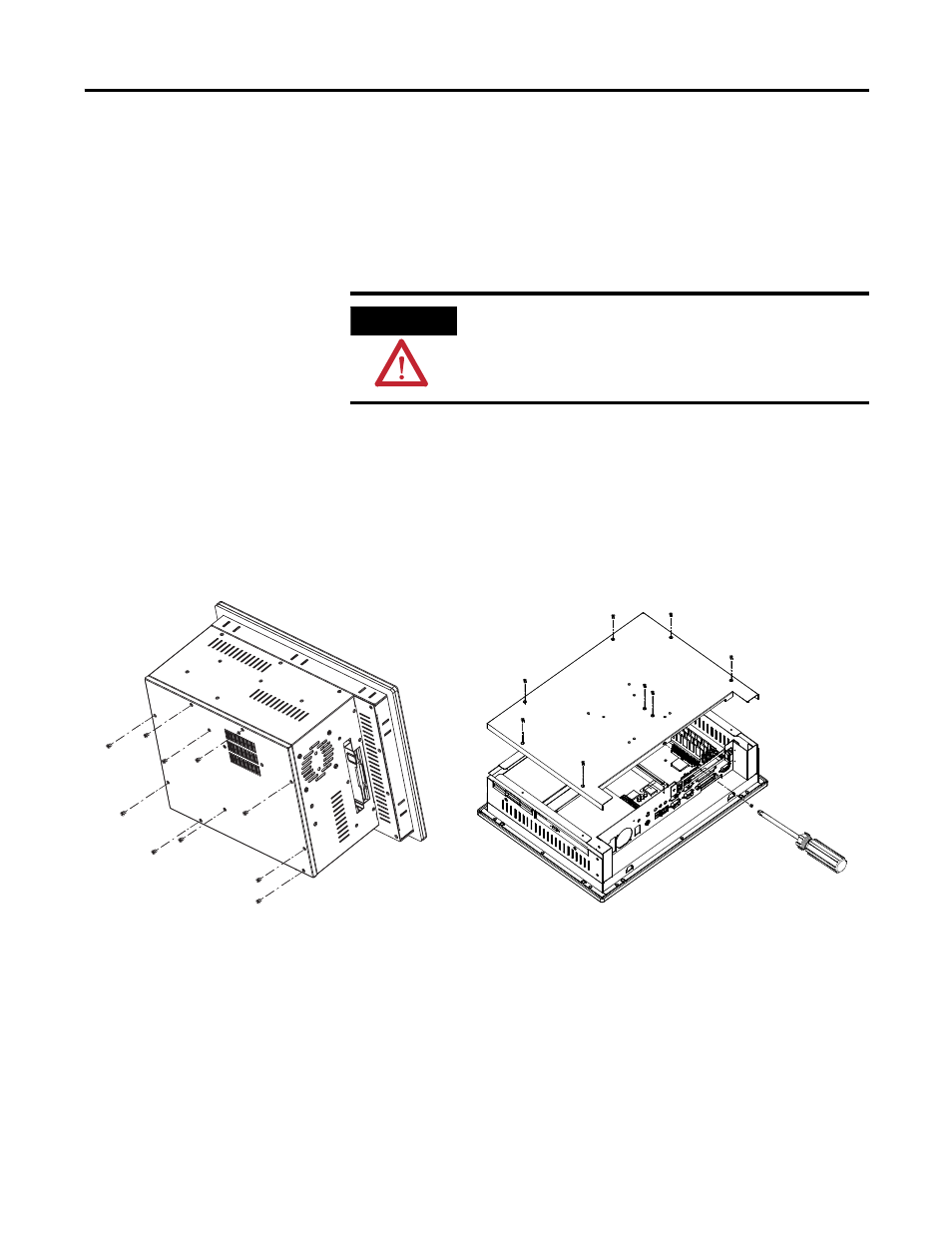

Remove the Back Cover
To maintain, install, or upgrade computer components, you must first
remove the cover.
Follow these steps to remove the back cover.
1. Disconnect power from the computer.
2. Remove the screws that secure the back cover.
3. Lift the cover from the chassis.
4. To reinstall the back cover, position the back cover over the
chassis and fasten with the screws.
ATTENTION
Failure to follow proper safety precautions could result in
severe electrical shock and/or damage to the computer.
1500P/1700P
1200P
