Publication 6181P-UM001G-EN-P - July 2008

Chapter 2 Installation

Mounting Clearances

Allow adequate space around the computer for mounting, air flow,
connections, and maintenance. Do not operate the computer in an
enclosure by using the minimum clearances unless adequate
ventilation or other cooling methods are used to lower the
temperature within the enclosure.

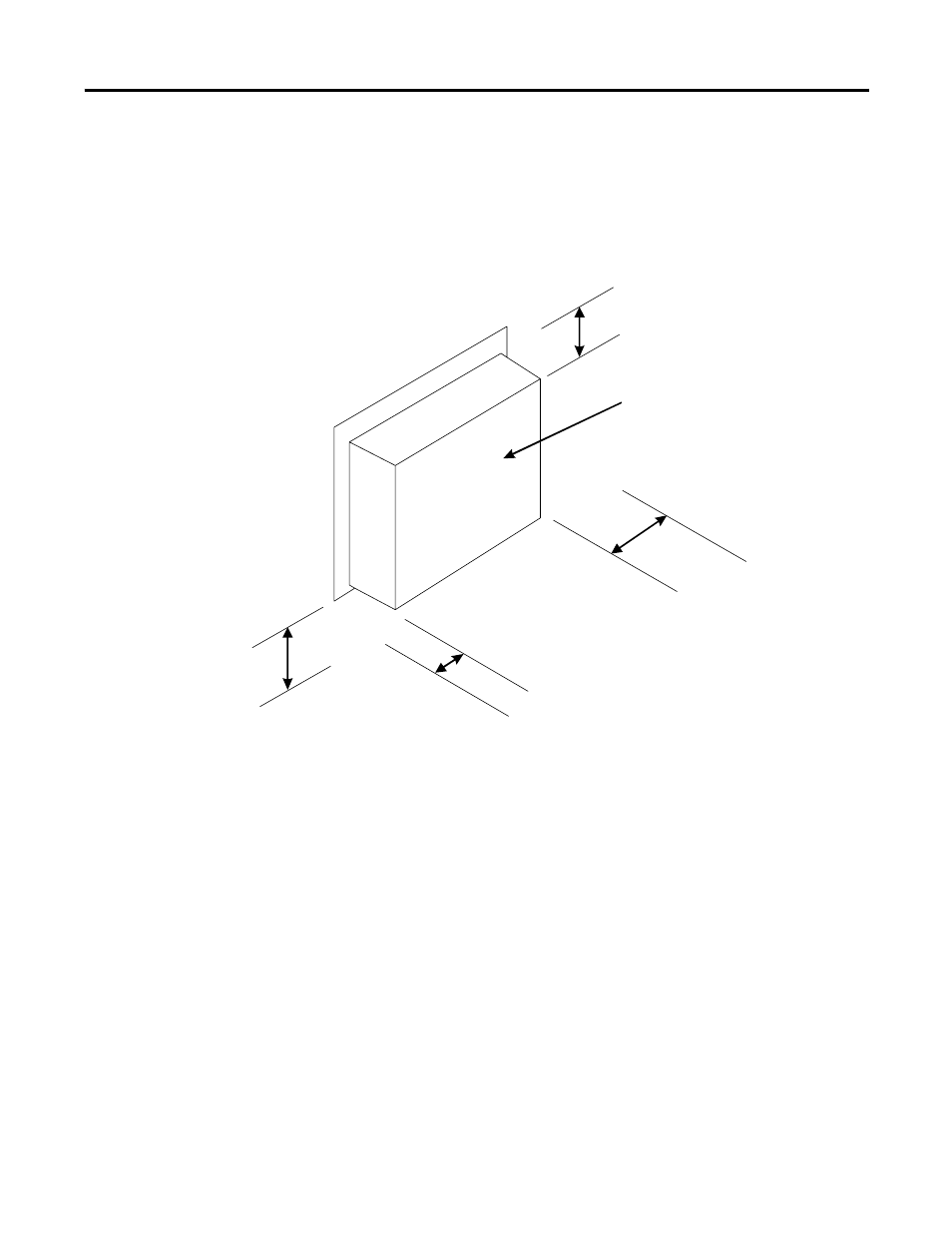

Top Clearance:
50 mm (2 in.)

Right Side Clearance:
1200P = 50 mm (2 in.)
1500P/1700P = 127 mm (5 in.) for
air flow and drive access

Bottom Clearance:
102 mm (4 in) for air flow
and connections

Left Side Clearance:
1500P/1700P = 50 mm (2 in.)
1200P = 127 mm (5 in.) for
air flow and drive access

Back Clearance:
50 mm (2 in.)
