Validating and Downloading the Application

Publication 2711-6.2

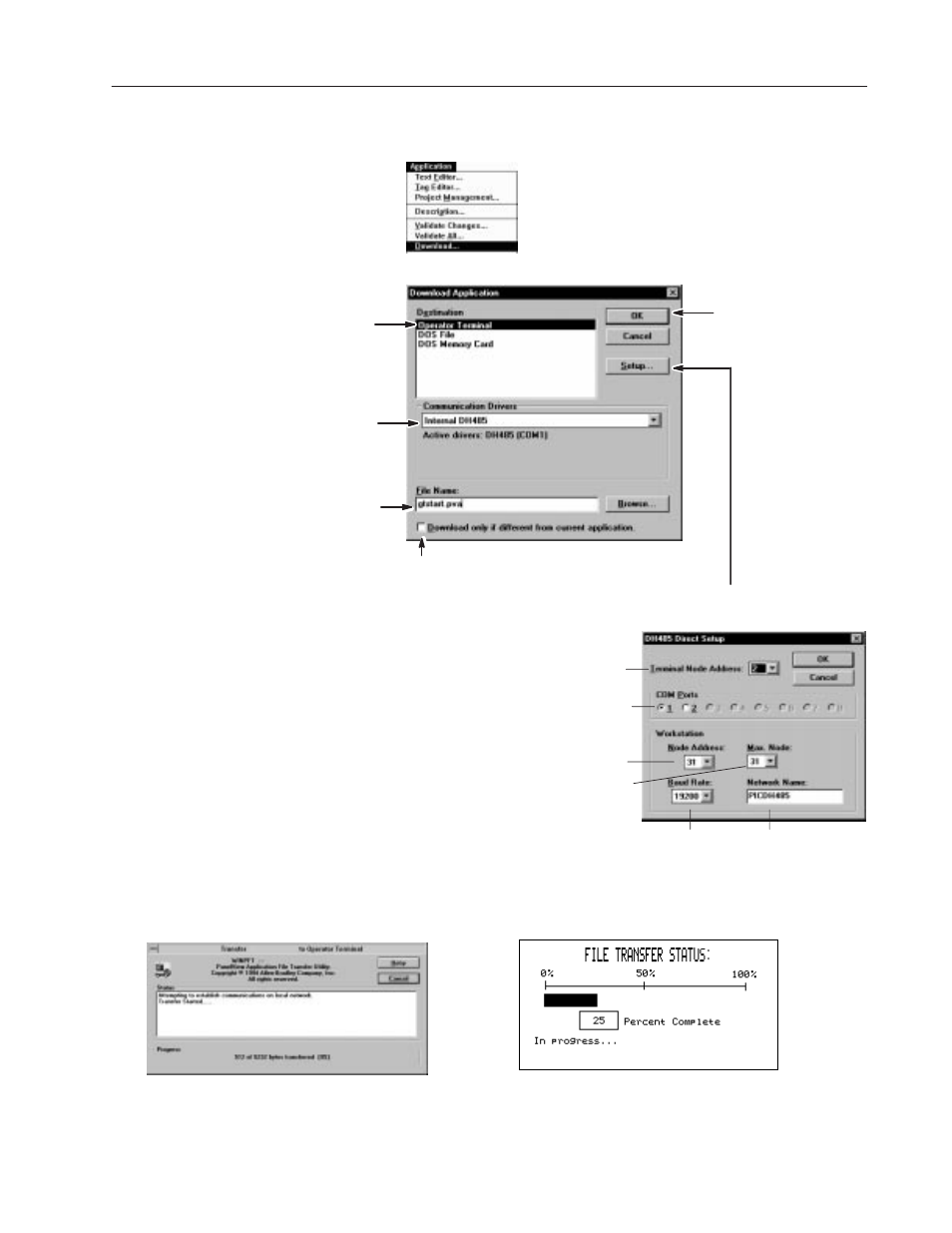

To download an application using the Internal DH485 Driver:

➁ Choose Download from the Application menu.

➂ Select the Download parameters.

➃ Application is validated and translated to a .PVA file.

➄ PanelBuilder software and terminal display status of download.

➀ Open the application you want to download.

Enter name of .PVA file in which to
save the translated .PBA file or click
Browse to search for a file.

Check this box to download the application only if it is
different from the application loaded in the terminal.

Select Operator Terminal

Select Internal DH485 Driver

Click OK to start
download.

gtstart.pva

If errors or warnings are detected, the Exceptions dialog
opens. You must correct errors before download can
proceed. Warnings should be corrected, but the
download will proceed.

➅ Terminal resets, verifies and displays the startup screen of the application.

Node address of
terminal on network

Node address of
computer on network

Address of highest
node on network

Baud rate of
DH-485 network

Name of DH-485
network

COM port using Internal
DH485 driver

For DH-485 or RS-232 (DH-485) terminals,
click Setup to verify network parameters.
