4–19 Creating the Sample Application
Publication 2711-6.2

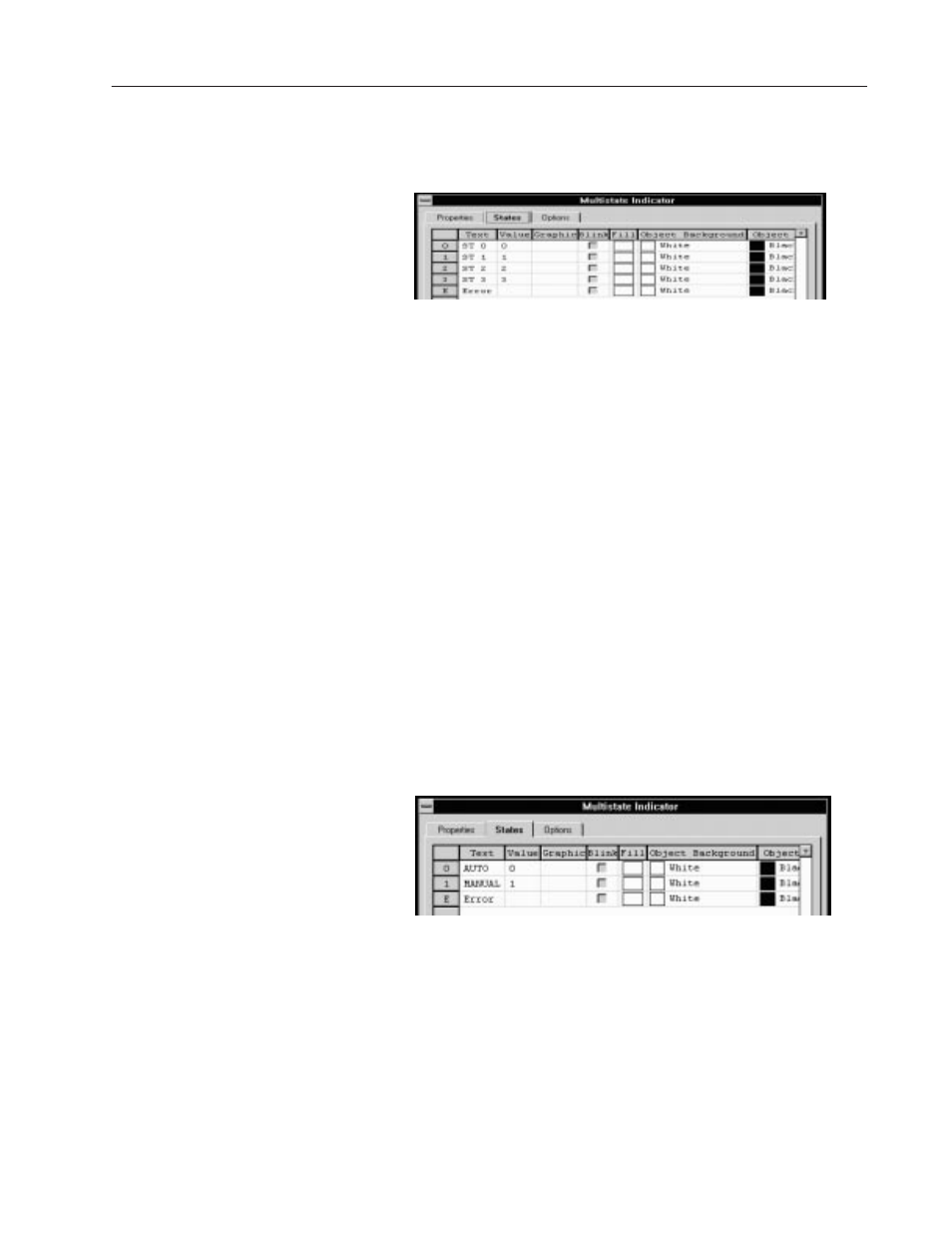

To configure the states of the MODE indicator:
1. Click the States tab on the Multistate Indicator dialog.
2. Delete states 2 and 3. These states are unused.
•
click on row number 2.
•
hold down the left mouse button and drag the mouse until
rows 2 and 3 are selected.
•
click the right mouse button and choose Delete State from the
popup menu.
3. Edit the fields for state 0 (row 0) as follows:
•
In the Text field, replace ST 0 with AUTO.
•
In the Text Size field, select 16x24 from the list box. Don’t
change the text size for PV550 applications.
Select these colors for state 0 (row 0).
•
Yellow for the Object Background
•
Blue for the Object Foreground
•
Yellow for the Text Background
•
Cyan for the Text Foreground
4. Edit the fields for state 1 (row 1) as follows:
•
In the Text field, replace ST 1 with MANUAL.
•
In the Text Size field, select 16x24 from the list box. Don’t
change the text size for PV550 applications.
Select these colors for state 1 (row 1).
•
Yellow for the Object Background
•
Black for the Object Foreground
•
Yellow for the Text Background
•
Cyan for the Text Foreground
5. Click OK to exit the dialog.
An asterisk (*) appears if the text exceeds the size of the object.
6. Resize the object, if necessary, to fit all the text.
