4–26 Creating the Sample Application
Publication 2711-6.2

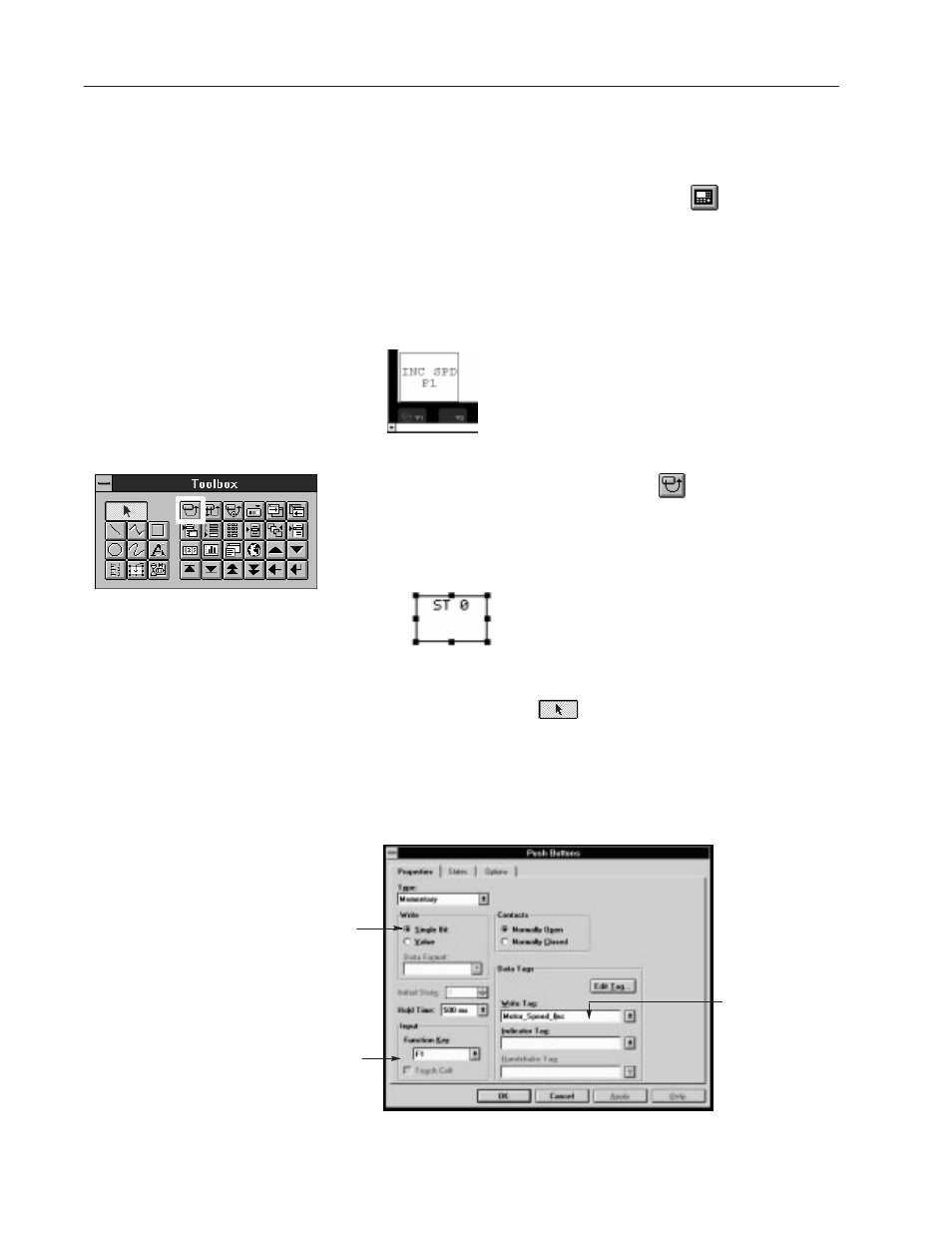

Opening a New Screen
To create the MOTOR SPEED application screen:
1. Choose New from the Screen menu or click
2. Type MOTOR SPEED in the Name box of the dialog.
3. Click OK to close the dialog and open screen 2.
Creating the Increase Speed Push Button
To create the Increase Speed push button:
1. Click the Momentary Push Button tool in the toolbox.
2. Position the pointer (+) at the lower left corner of the screen,
click the left mouse button and drag the pointer horizontally to
size the button.
3. Click the right mouse button to exit push button mode.
Or click the selection tool on the toolbox.
To set the properties of the push button:
1. Double-click the push button to open its dialog.
2. Set the properties as shown below.
Click Single Bit
Type
Motor_Speed_Inc
Select F1
Creating the
Motor Speed Screen
