4–33 Creating the Sample Application
Publication 2711-6.2

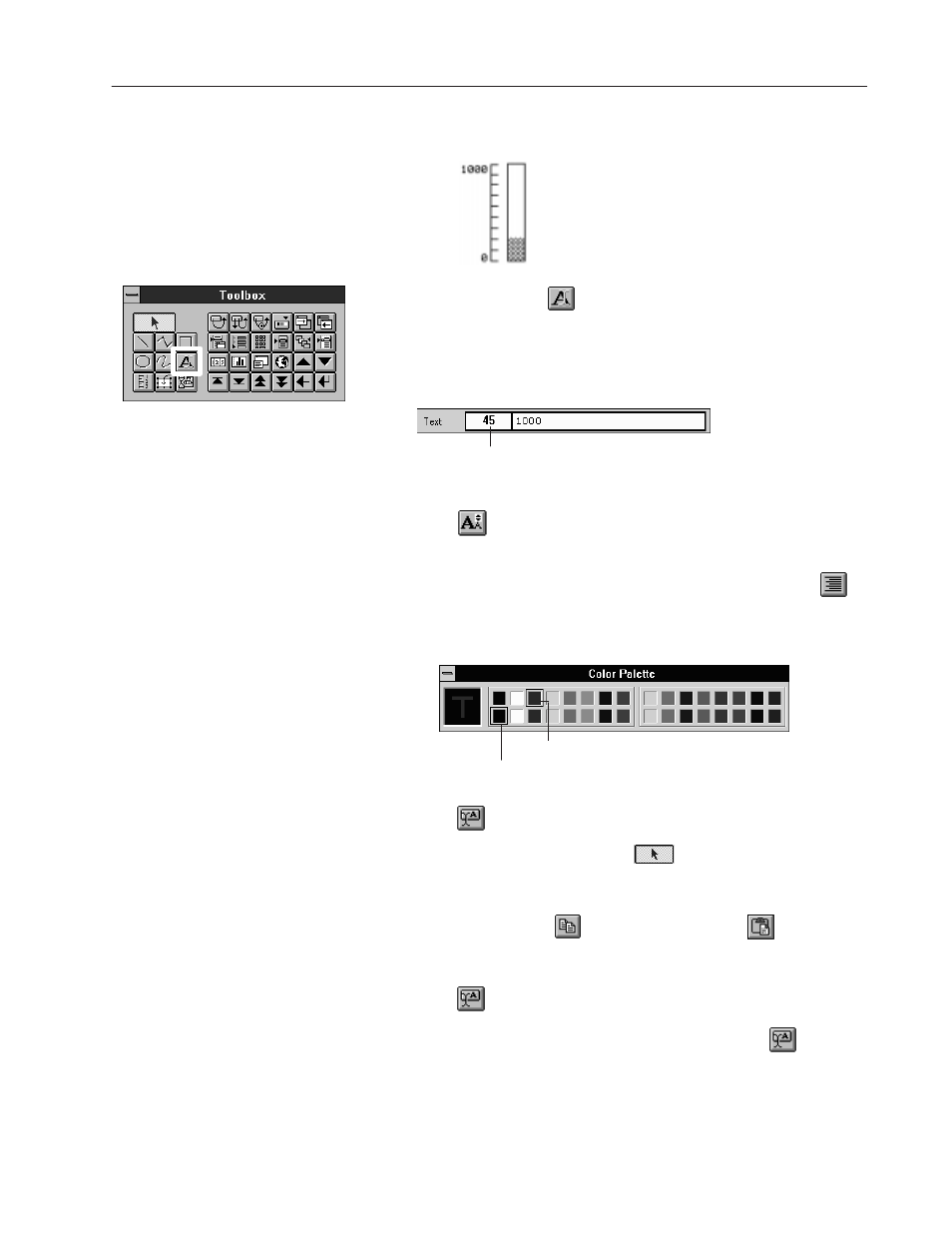

To create the tick-mark labels (1000, 0):
1. Click the Text tool in the toolbox.
2. Position pointer (+) to the left of the top tick-mark, click left
mouse button and drag to size the text block.
3. Type 1000 in the Text box.
Don’t worry if this number is different.
4. Click on the format bar and choose 16x24. Don’t change the
text size for PV550 applications.
5. Choose Right from the Format " Align Text menu or click
•
Select Light Red from the top row of the color palette.
•
Select Black from the bottom row of the color palette.
Light Red is the Foreground Color
Black is the Background Color
6. Click to exit inner text mode.
7. Click the right mouse button or to exit text mode.
8. Resize the text object if necessary.
9. Click the Copy tool and then the Paste tool
Move the outline of the text block to the bottom of the scale.
10. Click to enter inner text mode.
11. Replace 1000 with 0 in the Text box and then click to exit
inner text mode.
For Color
